Canon EOS 30 LCD Screen Replacement

Geschrieben von: Sterling Vinson
  • Kommentare: 2
Canon EOS 30 LCD Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

15 Minuten

Einleitung

This guide will show you how to access, remove, and replace the LCD screen. The process is safe and uncomplicated.

  1. TGVWrjnYLtjkMFA2

    • Remove the two 4.8 mm black screws above the lens on the front of the camera.

  2. IPLNHYPpHmCOHSJf

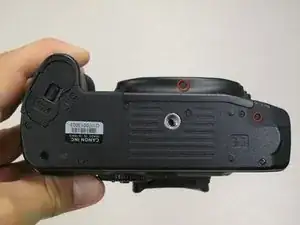

    • Remove the 4.3 mm black screw under the lens ring, and the 4.8 mm black screw under the camera.

  3. SBZy1TStnuPPdPea

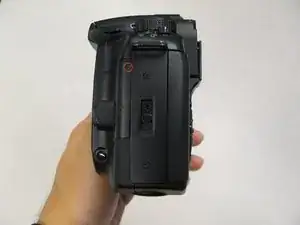

    • Remove the 4.8 mm black screw on the left side of the camera.

  4. DUJQI5mCdYhWNZHR

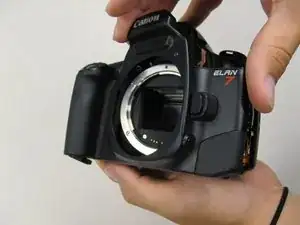

    • Remove the front panel by lifting it away from the camera's body.

  5. mE64gtuBpWdshJaa

    • Slide the outer eyepiece upward to remove it.

  6. NFZJAjvj4maqofiX

    • Remove the two 4.75 mm black screws located on the top of the camera.

  7. YP5DkaZKpZZpM22p

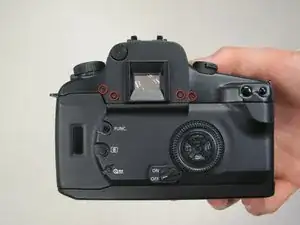

    • Remove the four 4.3 mm black screws near the bottom corners of the eyepiece at the back of the camera.

  8. UhnbNqYUoPMxWQGJ
    UhnbNqYUoPMxWQGJ
    fIIYRJmwdZZSkHVc

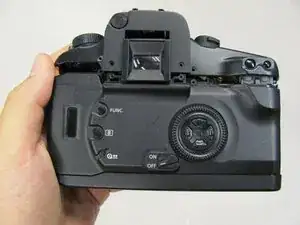

    • Slowly separate the top panel from the camera by pushing it upward.

    • Separating the top panel too far or quickly can damage the ribbon cable and connecting wires that are still attached to the top panel of the camera.

  9. Vq1qWiO6NHWheIOf

    • To unclip gold connector push the edge up and away from the lcd screen. A plastic opening tool is recommended.

    • The gold connector can fall into the camera, but it will remain attached and can be pulled back up.

  10. G4V2HZMDaHnmPOPU

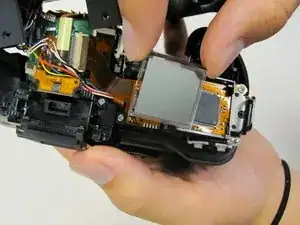

    • Lift LCD screen out of mount.

Abschluss

To reassemble your device, follow these instructions in reverse order.
