Canon EOS 30 Lens Mount Rings

Geschrieben von: Antonia
  • Kommentare: 1
Canon EOS 30 Lens Mount Rings

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

10 Minuten

Einleitung

The three stacked rings in the lens mount ring can be safely and easily removed.

  1. TGVWrjnYLtjkMFA2

    • Remove the two 4.8 mm black screws above the lens on the front of the camera.

  2. IPLNHYPpHmCOHSJf

    • Remove the 4.3 mm black screw under the lens ring, and the 4.8 mm black screw under the camera.

  3. SBZy1TStnuPPdPea

    • Remove the 4.8 mm black screw on the left side of the camera.

  4. DUJQI5mCdYhWNZHR

    • Remove the front panel by lifting it away from the camera's body.

  5. TkGoMrlVN1kEdAZP

    • Remove four 7.1 mm silver screws from lens mount ring.

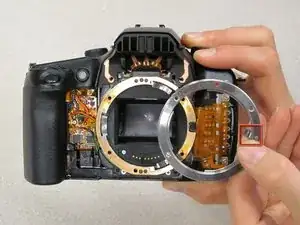

  6. IVKS5KAuenqnwnFT

    • Remove outer mount ring.

    • The silver button may detach.

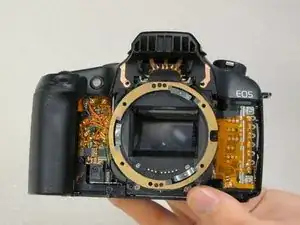

  7. bakptgXLMEZwqHBK

    • Remove thin gold ring.

    • Correct orientation is pictured.

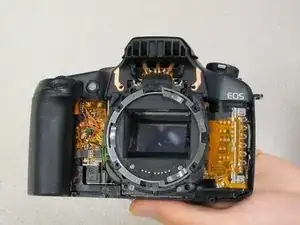

  8. a4oOUC5CGdeFKyrq

    • Remove thin silver ring.

    • Correct orientation is pictured.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Antonia

Mitglied seit: 17/04/11

124 Reputation

Ein Kommentar

Very handy. One addition though - the silver button lever is on the wrong side - it is not facing the mirror box but the plastic lens release button. Plus, you are missing the fact that there is a spring underneatch the silver leaver which keeps the mount pin coming back up.
