Canon EOS 30 Remote Control Socket Replacement

Geschrieben von: Antonia
  • Kommentare: 0
Canon EOS 30 Remote Control Socket Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

25 Minuten

Einleitung

The Remote Control Socket is not difficult to access. However, it's connections are soldered, so it will be difficult to remove.

  1. TGVWrjnYLtjkMFA2

    • Remove the two 4.8 mm black screws above the lens on the front of the camera.

  2. IPLNHYPpHmCOHSJf

    • Remove the 4.3 mm black screw under the lens ring, and the 4.8 mm black screw under the camera.

  3. SBZy1TStnuPPdPea

    • Remove the 4.8 mm black screw on the left side of the camera.

  4. DUJQI5mCdYhWNZHR

    • Remove the front panel by lifting it away from the camera's body.

  5. DpORiUgiQ21PZJPL

    • Remove seven 4.25 mm black screws on the bottom panel.

  6. aP5bpgQgLZ1EBByL

    • Remove the bottom panel.

  7. rHyyEu3oIHwOny22

    • Remove two 6.5 mm black screws from the panel.

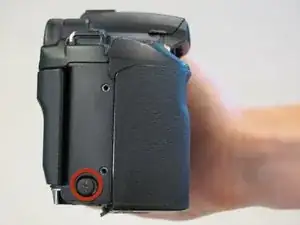

  8. K2vWseLlnxl2rlrf

    • Remove the plastic remote control socket cap by pulling it straight out.

  9. uHO1GqW2LbREYEIL

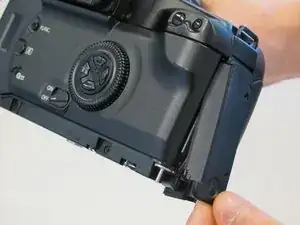

    uHO1GqW2LbREYEIL

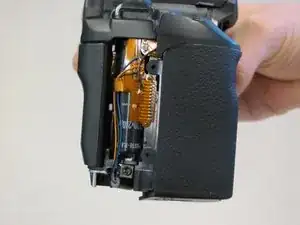

    eUUSqZTdNYZJLwxB

    • Slide panel toward bottom of camera to remove.

  10. LewDfEBEgNpJOG2g

    • Remove one 4.8 mm silver screw securing Remote Control Socket to camera.

  11. IeMZTX1TFdKdbFns

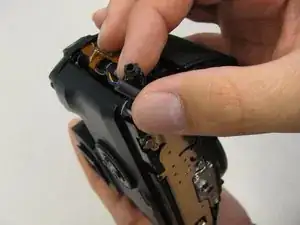

    IeMZTX1TFdKdbFns

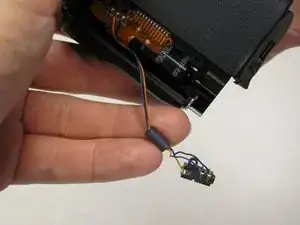

    eorBbwpeSufVDvdc

    • Remote Control Socket is now secured by 3 wires.

    • Desolder connections to replace Remote Control Socket.

Abschluss

To reassemble your device, follow these instructions in reverse order.
