Canon EOS 300 Front Panel Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

5 Minuten

Einleitung

The front panel will be removed in order to access other areas of the camera such as the battery door and top panel

  1. M2hTDsYSGaXDENEW
    M2hTDsYSGaXDENEW
    Rpo2TrSEDYAsHZCx
    tFL6GQ1idKsOfQCs

    • Open up the battery door.

  2. YlgOvdX3wMVLdQgm
    YlgOvdX3wMVLdQgm
    2HxVsoSWenhRV2vx

    • Remove the batteries from the camera by sliding them out into your palm.

  3. VVYjefXhNYd3lkkg
    VVYjefXhNYd3lkkg
    TvRxlYKbYuJWtiKQ

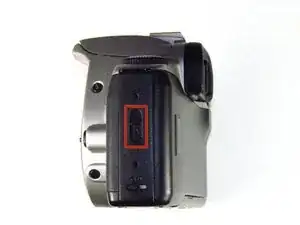

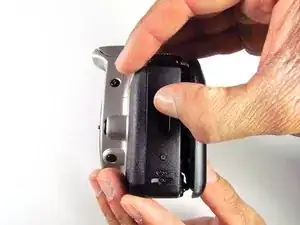

    • Release the side latch to open the back panel.

  4. tWBJWPOHWGSm2WB4
    tWBJWPOHWGSm2WB4
    RZglpuMscVYbM6dC

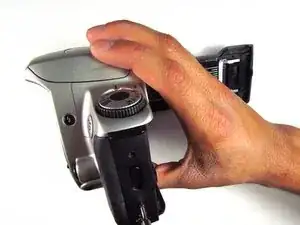

    • Remove the two black 4.5mm screws above and below the latch.

  5. 6mGvSTkmpV1yFXQq
    6mGvSTkmpV1yFXQq
    uglucA5kNkk1ZkDk

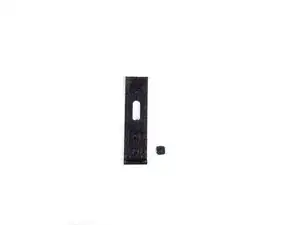

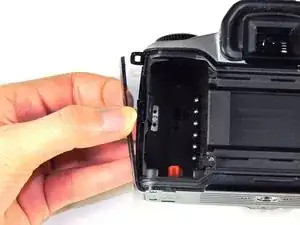

    • Using your finger, carefully pry open the side panel from the top of camera.

    • Pull panel downwards to remove.

    • Make sure to keep track of the small black piece of rubber under the latch.

  6. tmooRck6pDLV2dtH
    tmooRck6pDLV2dtH
    mSRVZHG6MrKOdE4c

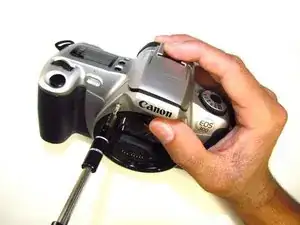

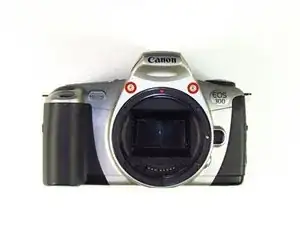

    • Remove the two silver 6mm Phillips #1 screws.

  7. CSRcRbBrunU21Rej
    CSRcRbBrunU21Rej
    JOhMvwDRd2TbW1wo

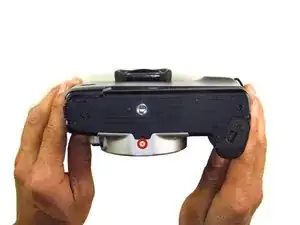

    • Flip camera over to the bottom.

    • Remove the one 5mm Phillips #1 silver screw.

  8. 5NEMy5bcaXDqLjGb
    5NEMy5bcaXDqLjGb
    EoqKvnJFuVkA1dD2

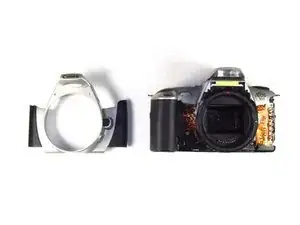

    • Remove the front panel by pulling away from the side with the lever.

Abschluss

To reassemble your device, follow these instructions in reverse order.
