Canon EOS 40D Date and Time Battery Replacement

Geschrieben von: Doug Kruse

Kommentare: 7

Canon EOS 40D Date and Time Battery Replacement

Schwierigkeitsgrad

Very easy

Schritte

Zeitaufwand

2 - 6 Minuten

Einleitung

If your date and time battery needs to be replaced, follow this guide to replace it. The required date and time battery is a CR2016 lithium.

Ersatzteile

CR 2016 3V Lithium Batteries

Schritt 1

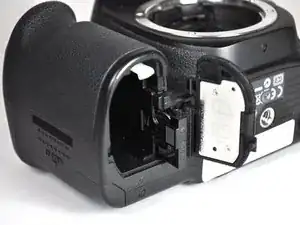

Locate the battery compartment cover on the bottom of the camera below the shutter button.

Schritt 2

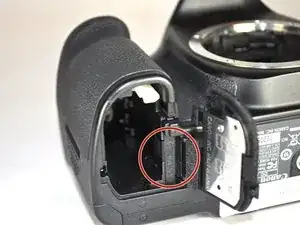

Find the marked arrow on the battery compartment cover labeled "BATT. OPEN". Slide the lever following the arrow's direction and lift at the same time to release the latch.

Schritt 3

Release the lever and allow the battery compartment cover to completely open.
Remove the battery.

Schritt 4

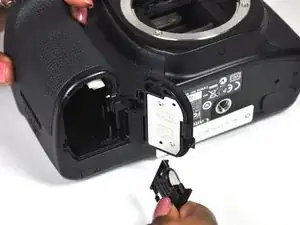

Remove the date and time battery holder by sliding it out of the slot.

Schritt 5

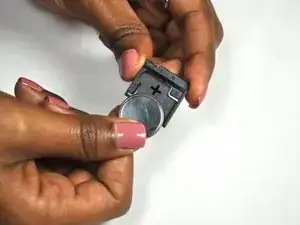

Remove the date and time battery from the battery holder.

Thank you! Very easy to follow - helps to have a little tool to pull the battery holder out but not hard at all!

michaelwinslow - 30/11/16

Mil gracias!! me ayudó muchísimo

krmn_i - 13/10/18

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Doug Kruse

Mitglied seit: 03/09/15

745 Reputation

5 Kommentare

Thank you. This is fantastic information that is *not* in the manual. I bought an unnecessary main battery, but this resuscitated my camera on a trip.

Thanks! David D.

David Drinkwater - 24/09/19

All the other advice I found says to remove two screws, when it's really as simple as you show here. Thanks!

Stephen Spratley -

This was so helpful, thank you! Also if you are in a jam and do not have a CR2016, you can use a CR2032 directly without using the normal battery tray.

paniak -

Great help! Accurate, easy to follow directions

Jack Applegate -

Excellent. Just what I needed, to bring life back to the dead.

pvlewisnz -
