Canon EOS 60D Top Digital Display Clear Plastic Cover Replacement

Geschrieben von: Nazmi Bargouthi
  • Kommentare: 0
Canon EOS 60D Top Digital Display Clear Plastic Cover Replacement

Schwierigkeitsgrad

Moderate

Schritte

2

Zeitaufwand

Keine Schätzung

Einleitung

The top digital display clear plastic cover provides protection to the sensitive LCD display screen beneath it. The replacement of the top plastic cover should be handled with caution in order not to damage the LCD screen.

Werkzeuge

  1. M12PWNeKOVMJvoHH
    M12PWNeKOVMJvoHH
    BxQCqpPOSkFOjXRg
    tKAV6igTKRfLl3pU

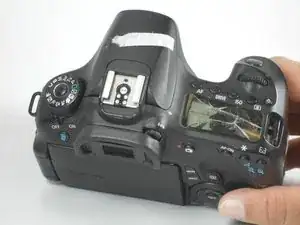

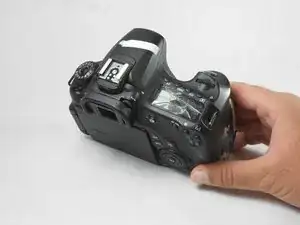

    • Hold the camera in a top view position allowing for a clear display of the broken top cover.

    • Observe and identify all the pieces of the shattered cover.

  2. RTYwf6fcvLPWaB5j
    RTYwf6fcvLPWaB5j
    ivhnLWHNoIiTNNLw
    DiPGMZlYTC3DpP3U

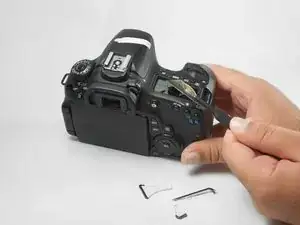

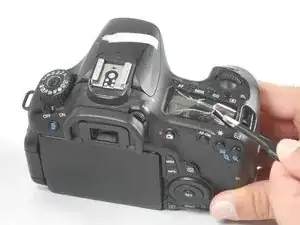

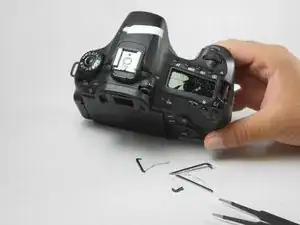

    • Slowly slide the tip of the tweezers under a piece of the broken cover and lift up to remove the broken piece.

    • Use the tweezers to remove another piece of the broken cover.

    • Repeat until all the pieces of the shattered cover are removed.

    • If you begin by removing a piece that is located at an edge of the broken cover, it would facilitate the removal of the rest of the pieces.

    • Use the tweezers carefully while removing the plastic pieces in order to avoid damaging the LCD screen beneath.

Abschluss

To reassemble your device, follow these instructions in reverse order.
