Einleitung

The main motherboard controls all functions of the camera.

  1. CfYBH6HPDr4e4kl3

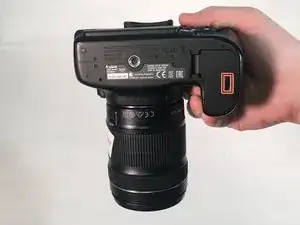

    • Hold the camera with the lens pointing down. Press the highlighted button with your finger to release the cover.

    • Pull cover over to expose the battery.

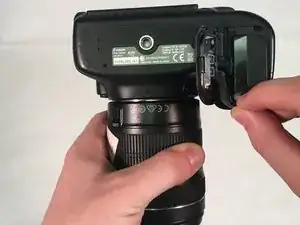

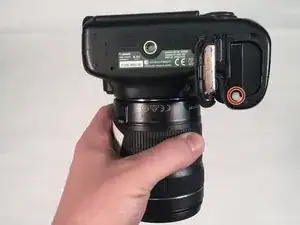

  2. bOiJBCqo44Z6C4TL
    bOiJBCqo44Z6C4TL
    v3Y3aTy4MWR5chdx
    • Press the white button with your finger to release the battery.

    • Once released, the battery will eject out about two inches

  3. MhfyfWalL2x3yEfL
    • Pull battery out of the camera.

  4. 6AnPCbEuDePaa2dY
    6AnPCbEuDePaa2dY
    EIpiyTCqTWaSRIqj

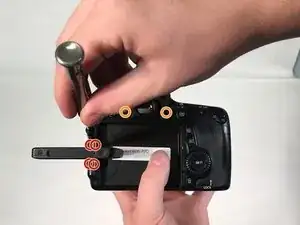

    • Pull Touchscreen out and rotate 90 degrees. Remove the four 3 mm Phillips #000 head screws that are now exposed at the hinge.

    • Remove the two 5 mm Phillips #000 head screws that near the viewfinder.

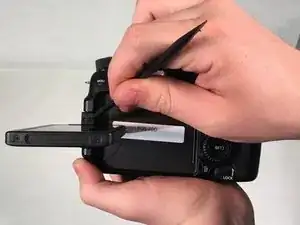

    • Use a spudger and pry apart the two plastic columns surrounding the screen hinge.

    • The screen will not be removed at this step.

    • Rotate the screen forward 90 degrees and push it back into its housing against the camera.

  5. wEtDILuGYMuVf5ph
    wEtDILuGYMuVf5ph
    QnFaWpuuluHM4iLs
    • Use a spudger to peel rubber matting on left hand side to expose camera backplate mounting screws.

    • Remove three 4 mm Phillip #000 head screws that mount the backplate to the left side of camera.

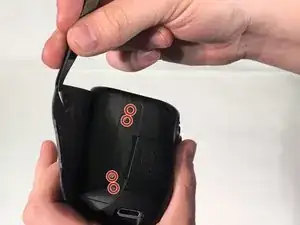

  6. kllLCfPXXkNoDFEG
    kllLCfPXXkNoDFEG
    SuNcl2hMrSOgT4tn

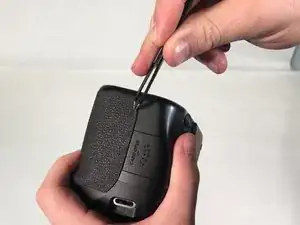

    • Use tweezers to pry rubber matting on right hand side to expose backplate mounting screws.

    • Remove four 4 mm Phillips #000 head screws that mount the backplate to the right side of camera.

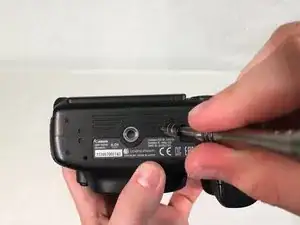

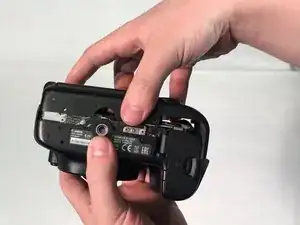

  7. RNTwweMuSGALQuXD
    RNTwweMuSGALQuXD
    SgRNJbIqmKvFcxWl
    YPIjBHsv5ZtT3exJ
    • Turn camera upside down. Remove five 5 mm Phillips #000 head screws securing the backplate to the bottom of the camera.

    • Grab the backplate and gently pull away from camera.

    • The backplate will still be attached by the wires running to the LCD touchscreen.

    • The screen will still be attached to the camera and won't be removed until step 10.

  8. V6qlOCEk1FtVbKFQ
    V6qlOCEk1FtVbKFQ
    olyF51yefCdnfU6F

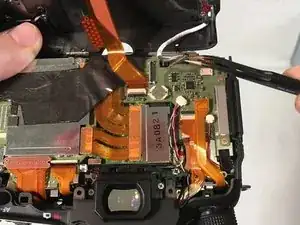

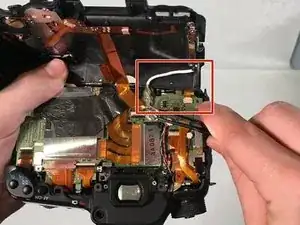

    • Carefully pry open backplate from camera to expose LCD connector (white wire). LCD connector is attached with a metal bar to the motherboard.

    • Use tweezers to gently pry metal bar connector from camera motherboard.

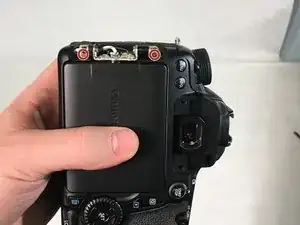

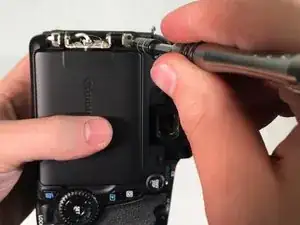

  9. 5bDBOB3xg2UBmUb4
    5bDBOB3xg2UBmUb4
    wBBJB1CBXETTwoHX
    • Remove two 4 mm Phillips #000 head screws that mount the LCD touchscreen to the hinge on the camera.

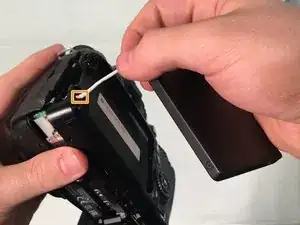

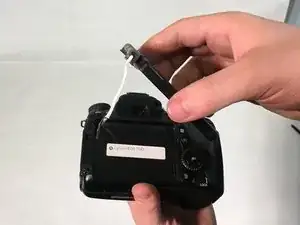

  10. mDa2FeFU5ltFv5Os
    mDa2FeFU5ltFv5Os
    RpAeb3AFkJJUoQAb
    VeAHAyyOLjQKlgYg
    • Grip the screen with your hand and gently pull white connecting wire through hole in backplate.

    • Once the connector reaches the hole, twist the connector and pull completely through hole.

    • You must twist the connector in order to fit through hole.

    On mine a EOS 70D(W) there were 2 screws on the other side of the case under the mats that also had to be removed and screws on the plastic hinge covers as well. Of course I also had to take the LCD case apart as the replacement I got was just the LCD not the entire unit.

    Michael Ault -

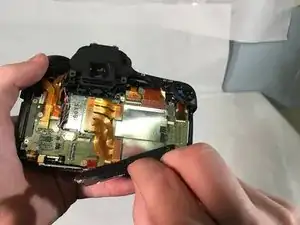

  11. jM1jMkRBOhQ4YQQb
    jM1jMkRBOhQ4YQQb
    klng2IqqNmTBe5vA
    QVkuQv6FLMQdYBvf

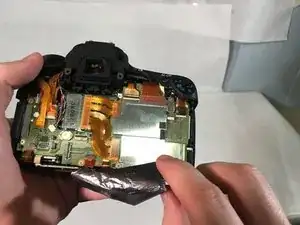

    • Use spudger to lift edge of black heat tape.

    • Slowly peel back black heat tape.

    When I did this step, it occurred to me you may not need to peel the black heat tape from the heat spreader.

    netguy -

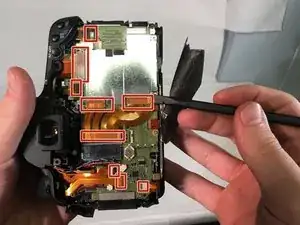

  12. RaFaDM3cdTKYKIKO
    RaFaDM3cdTKYKIKO
    6fZ6fgAJNqGwMDKR
    OScOZZyHpqB5m5LZ

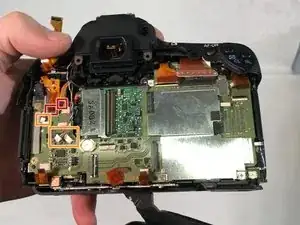

    • Very carefully, use spudger to remove nine orangish ribbon cables.

    • Using tweezers remove the two wire cables shown.

    • Slowly remove ribbon cables because they can tear very easily.

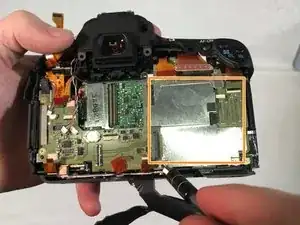

  13. WnI4TcPXDqcFGNlF
    WnI4TcPXDqcFGNlF
    Ly41r5OtpiOORPcB
    1eVMonBLYa2ibamL
    • Remove seven 5 mm Phillips #000 head screws around motherboard.

    • Once the five screws are removed, remove the metal chip covered by hand.

    • This will leave the mother board exposed, attached by two cable wires underneath.

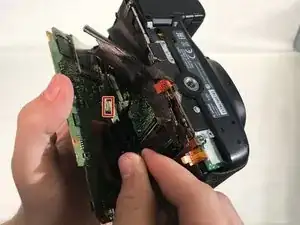

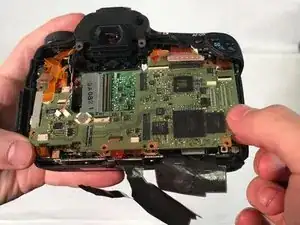

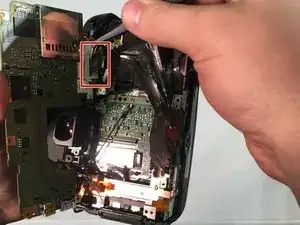

  14. odKtNp2yiRvai4Su
    odKtNp2yiRvai4Su
    sjEo6qJLCOsSTmuV
    lH1XDWBFp6CFyiwB
    • Slowly lift motherboard to expose the two cable wires underneath.

    • Using tweezers, unattach the two wire cables holding the motherboard in.

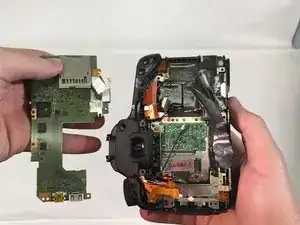

  15. wi2XpcfxUqBnnLDc
    • Carefully remove motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
