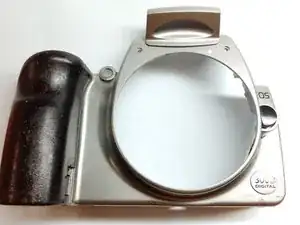

Canon EOS Digital Rebel (300D) Front Casing Replacement

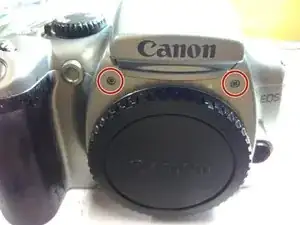

Remove the two 7mm philips screws from the front casing.

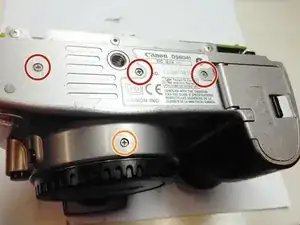

Remove the three 1/8" philips screws from the bottom.

Remove the single 3/16" philips screw from the bottom.

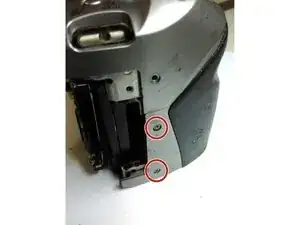

Remove the two 1/8" philip screws from the right side of the front casing.

Locate the lock of the battery door and pull it for allowing the door to be removed.

Remove the battery door.

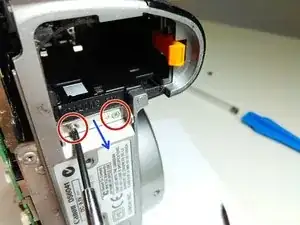

Remove the two 1/8" philips screws from the hinge mount.

Take out the door hinge mount.

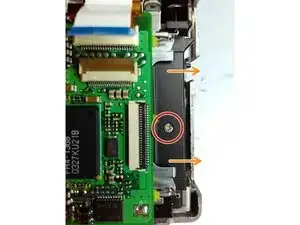

Remove the screw holding the black cap which covers access holes to the screws holding the front casing to the battery compartment.

Remove the black cap pulling it to the right.

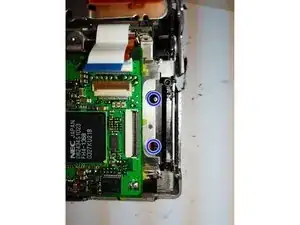

Remove the two 3/16" philips screws.
