Canon EOS Digital Rebel (300D) LCD Screen Replacement

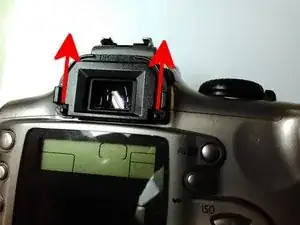

Remove the eyecup by gently pushing it upwards, so it doesn't block us in the final step of pulling the back casing from the camera's body.

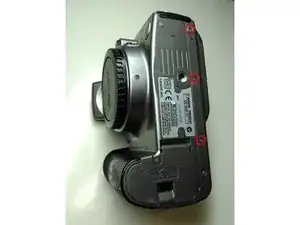

Remove the three 1/8" philips screws from the bottom of the back casing

Open the CF card compartment by moving it upwards and tilting it away from the camera body.

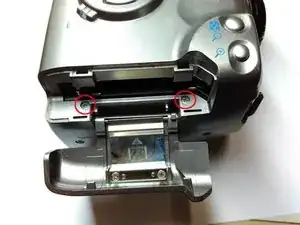

Remove the two 3/16" philips screws besides the CF card slot opening.

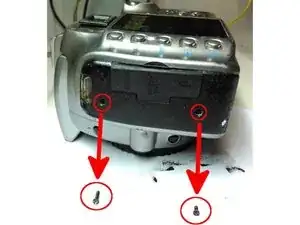

Remove the black screws from the camera's left rubber covering - note it is a 5/16" screw at the top and a 3/16" screw at the bottom.

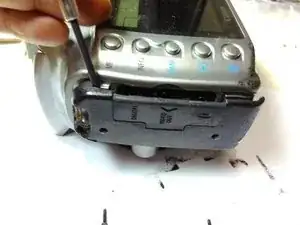

Aided by a screwdriver or plastic opening tool, remove the rubber coating from the left side of the camera.

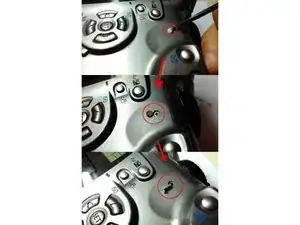

With a pointy tool, remove the soft cap covering the screw.

Remove the 3/16" philips screw.

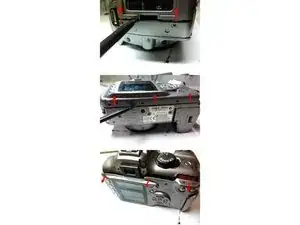

Use a plastic opening tool to help detaching the back casing from the camera's body.

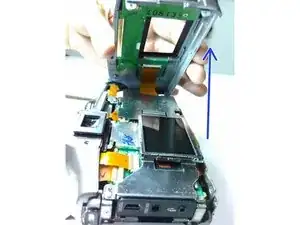

Carefully lift the back casing from the camera's body from left to right.

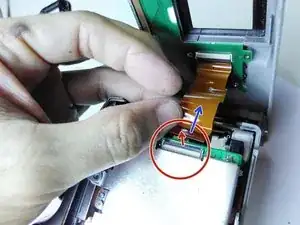

Locate the connector which holds the flat cable to the main circuit board. Unlock the connector by gently pulling up its black piece from the side the flat cable comes into it.

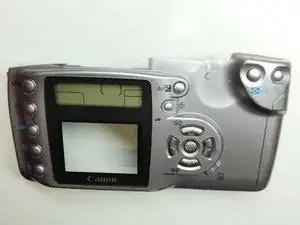

Pull the flat cable from the connector and you'll have completely removed the back casing from the camera.

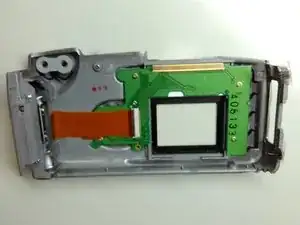

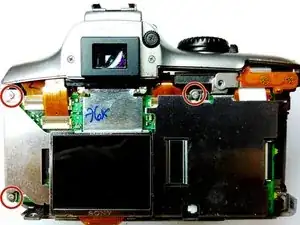

Remove the three 1/8" philips screws holding the LCD chassis to the camera's body.

Remove the power cable from the main board.

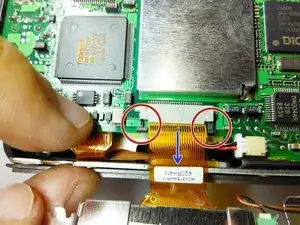

Unlock the flat cable connector by pulling out its black edges.

Pull out the flat cable from the connector on the main board.
