Canon EOS Rebel G Back Panel Latch Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

5 - 10 Minuten

Einleitung

This guide teaches how to to install the back panel latch on your camera.

  1. NEVGWMkZBAxyLAXV

    • Using a #00 Phillips screw driver, remove three 4.4 mm Phillips screws as indicated by the red circles.

  2. TgWY24VK461rRb2P
    TgWY24VK461rRb2P
    YsYNhMPUVt1pAeVx

    • Using your finger, peel back the textured grip so the components are separated.

  3. WUtpnyKjcAyBnPcp
    WUtpnyKjcAyBnPcp
    CnPNxUvtCpknxsRA
    bDCxHGA3UTIArKuB

    • Using the flat end of a spudger, loosen the connection between the front panel and the device.

    • Remove the front panel using your hands.

  4. pOIrHtqlYXuPCbOQ

    • Using a 00 Phillips screw driver, unscrew the two screws located on the side of the camera.

    • Two 4.3 mm Phillips screws

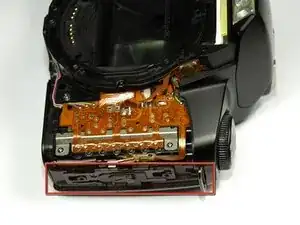

  5. Rk4e2LBM4cJmANSj

    • Open the back panel by pushing the locking latch up.

    • Lift the latch cover off of the camera body.

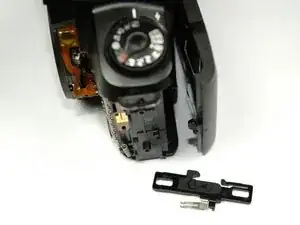

  6. HA6KS2WbhVZEItqY

    • Slide the side latch (for the back door) up and then lift straight away from the camera body.

    • Sometimes the latch will detach while pushing it up.

Abschluss

To reassemble your device, follow these instructions in reverse order.
