Canon EOS Rebel T3i Screen Replacement

Geschrieben von: Natalie Crock

Kommentare: 3

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

20 Minuten

Einleitung

Use this guide to replace the LCD screen on your Canon EOS Rebel T3i.

Werkzeuge

Schritt 1

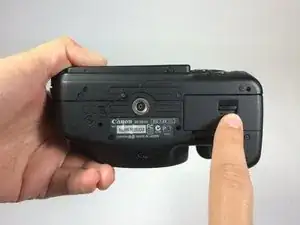

Locate the battery compartment on the bottom of the camera.

Schritt 2

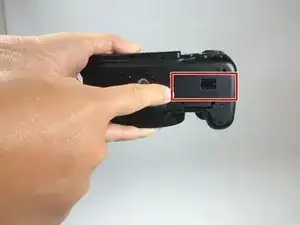

Hook your finger onto the compartment door latch.
Open the battery compartment door.

Schritt 3

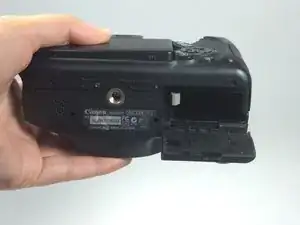

Remove the battery from the compartment.

Schritt 4

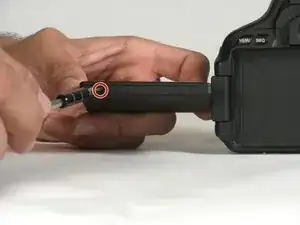

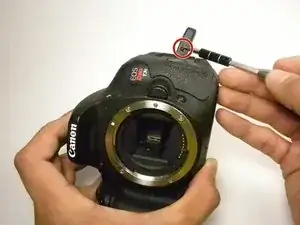

Remove the two 3 mm Phillips #000 screws. The screws are on opposite sides of the screen.

In addition to the 2 screws you pointed out, there are an additional 2 screws on the swivel side where it attaches to the camera. Without those 2 removed you cannot take the back off.

gtinmia - 15/09/16

Schritt 6

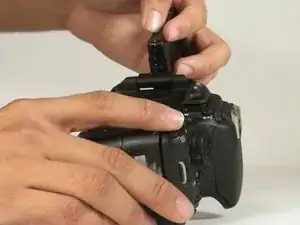

Unplug the blue cable from the back of the LCD.

Hi, I have a Canon T3i and this blue cable is broken. Where can I find this cable to buy?

Does it have any reference number?

JOAO L C CARVALHO - 07/06/16

Schritt 7

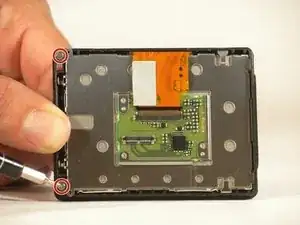

Remove the two 3 mm Phillips #000 screws.

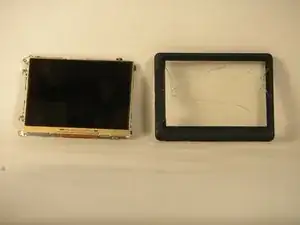

Separate the LCD from the plastic housing.

There are an additional 2 screws that need to be removed from the swivel part which keeps the LCD in place. Those 2 screws are only visible after you remove the backing. In total, there are 8 screws to remove to be able to take the LCD out. 4 to get the backing off, 4 to get the LCD detached from the housing.

gtinmia - 15/09/16
