Canon EOS Rebel T3i Top Casing Replacement

Geschrieben von: Natalie Crock
  • Kommentare: 11
Canon EOS Rebel T3i Top Casing Replacement

Schwierigkeitsgrad

Moderate

Schritte

23

Zeitaufwand

10 Minuten

Einleitung

Use this guide to replace the top casing on your Canon EOS Rebel T3i.

  1. bAm42cfRNog1r5Tr

    • Locate the battery compartment on the bottom of the camera.

  2. 5chA6egdVXQVinPU

    • Hook your finger onto the compartment door latch.

    • Open the battery compartment door.

  3. wpYnkD2unGaDqVKU

    • Remove the battery from the compartment.

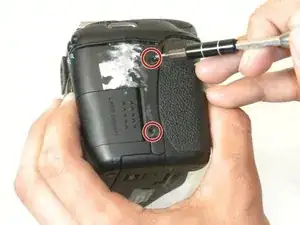

  4. 4sTqkPidvIg2GBnL

    • Remove the two 3 mm Phillips #000 screws.

    • Some variations of this camera may have one 3mm and one 6mm screws.

    • If the rubber eyepiece mount is still on the camera, remove it before attempting to separate the case halves.

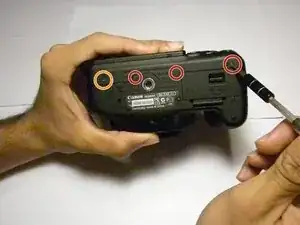

  5. weM3kDdvsXRlECB1

    • Remove the three 3 mm Phillips #000 screws.

    • Remove the single 6 mm Phillips #000 screw.

    • Some variation of this camera have two 3mm and two 6mm screws

  6. TFNZcYlMIZT41QXm

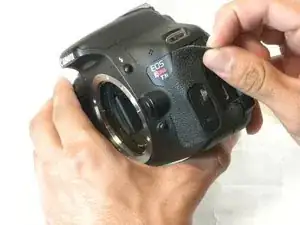

    • Peel back the grip tape with your fingernail.

    • Depending on the age of the camera, the grip tape will stick back in place with no need for extra glue.

  7. 5PXd6okOqdnWOQVI

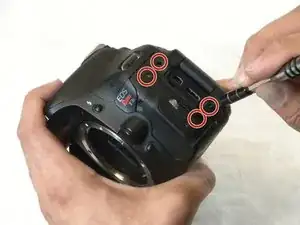

    • Remove the four 5 mm Phillips #000 screws.

    • Some variation of this model may have three 5mm screws and one 6mm

    The 6mm screw would sit in the bottom right hole, if it has this one longer screw.

    Arjan Rooyens -

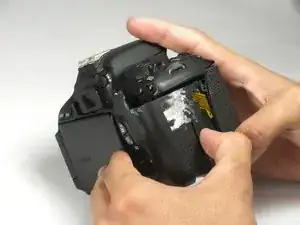

  8. KgPsDxMQDIid1Fyy

    • Slide off the right side of the camera.

    • Do not completely separate the body yet. There are still wires that must be disconnected. If the body is pulled apart too quickly, it may cause damage.

    9단계와 8단계를 바꿔야합니다.

    nanna1 -

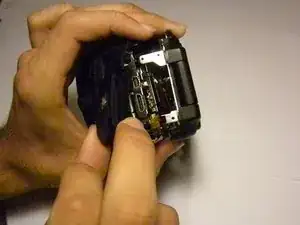

  9. 6uu2Ds4yxjFJbB5C

    • Lift off the USB cover.

    • Do not completely remove the back of the camera. There are still wires that must be disconnected. Removing the back too quickly may cause damage to wires.

    • When lifting the cover, the only thing resisting your tug is the plug cover stopper. Just pull, you'll be fine.

    • When replacing it, having the covers snug on the plate will make it easier to push the whole cover on

    Make sure the viewfinder eyepiece is removed, otherwise it will hold the top left corner of the back part in place.

    Jonáš Jančařík -

  10. Tk1ukf1qVn4WgFyu

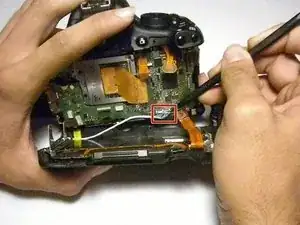

    • After separating the back, gently lift off one side of the light blue wire with the spudger until the connector is totally removed.

    • You may feel a slight resistance as you pull the top of the back cover off, it will click but that is fine.

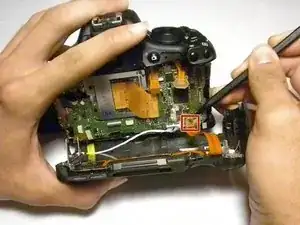

  11. tmuFGpLsJyRYcvA4

    • With the spudger, remove the orange ribbon cable leading to the circuit board from the back of the camera.

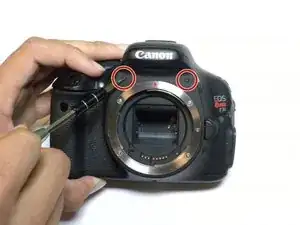

  12. qJBZchjwwAK2E2Qc

    • Remove the two 6 mm Phillips #000 screws.

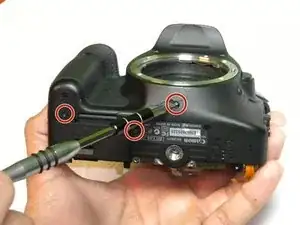

  13. QCKxhgqCVyY3RwYQ

    • Remove the single 6 mm and two 3 mm Phillips #000 screws.

    oh man, stripped the long screwtop on the left side. Any ideas how to remove it? thanks for the guide!

    Giorgi -

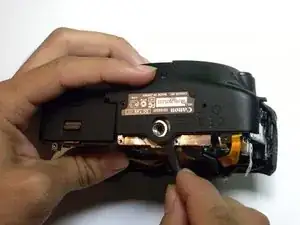

  14. CXVeTXShYsXxQXth

    • Use the spudger to lift the plastic under the tripod mount.

  15. W1egCREKWYuNbCil

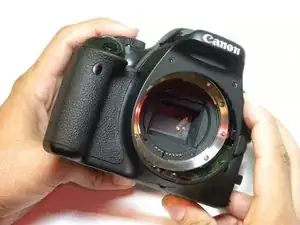

    • Lift the front cover off.

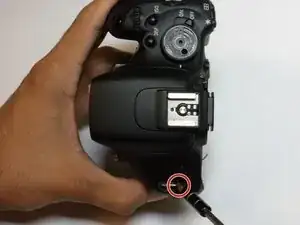

  16. h4P3HTvCVPX3hKGZ

    • Remove the single 4 mm Phillips #000 screw located near the strap mount.

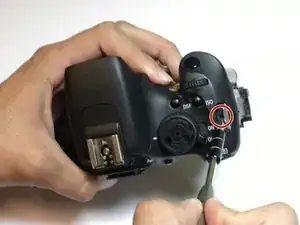

  17. FPhqmaY3aXtSEwWF

    • On the opposite end of the camera, unscrew the screw next to the power switch using the same tool.

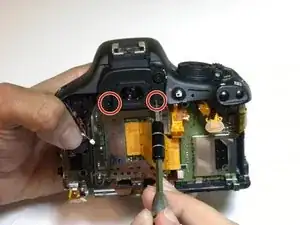

  18. fLNV6QKlHFNLIexX

    • Remove the two 5 mm Phillips #000 screws.

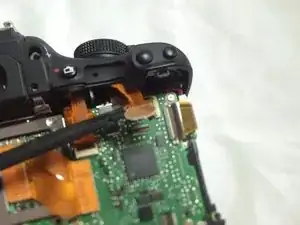

  19. poBNDXjvfdHjjfKi

    • Disconnect this flat cable with a spudger

  20. eYasckPiGmVZiXuM

    • Disconnect this tiny plug. Make sure to only pull on the white plastic. You can use a dull single-sided razor blade to pry the white plastic connector from its base.

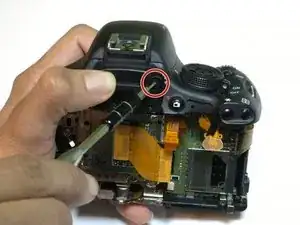

  21. GZIaqEoDRvhrGJ43

    • Remove the single 11 mm Phillips #000 screw securing the dioptric adjustment knob.

    • When replacing, make sure you do not tighten the screw too much, as the knob will be locked in position if you do.

    • Before replacing the knob/screw, make sure the grey plastic mount (screw hole area) is aligned with the outer case. If it is not, it means the lens and the knob are not lined up. With a flat screw driver, give the grey plastic a few rotations, and it should fall in place, and realign properly.

  22. 1tMIfvSucjVCIw3Q

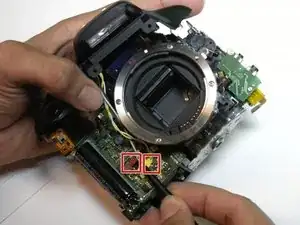

    • Use the tweezers to disengage the yellow and red wires from the camera body.

    • Some variations of this camera may not have unplugable wires. Make sure to take note of which cable goes where if you decide to remove the solder.

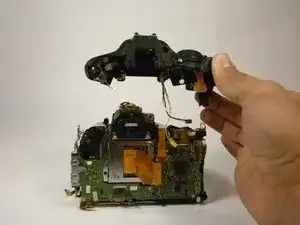

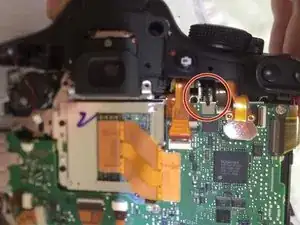

  23. usiSPuTJqFAwYmWD
    usiSPuTJqFAwYmWD
    SYtTLEuDI11VN2E4
    IgDptTTdfoSarpXM

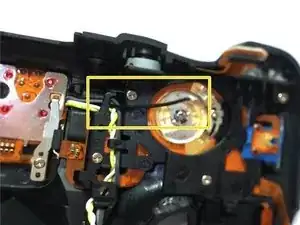

    • Lift the top casing up and away from the camera.

    • I'm not sure what this is for, but make sure the black plastic bit (not a cable) goes into the white plastic bit, as shown on the picture.

    • Here is a view of the black plastic bit. It is on the underside of the top cover.

    I am speculating but I believe this is a fiber optic cable that has to do with the flash control. Make sure it is seated all the way down into the white plastic tube (not the metal clip in front of it). Also if you are repairing a damaged top there could be a piece of the old cable down in the hole as was the case for me and you will have to remove it before putting the new top on. I have pictures but don't see any way I can attach them here.

    Price Anderson -

Abschluss

To reassemble your device, follow these instructions in reverse order.
