Canon EOS Rebel T4i Flash Replacement

Geschrieben von: Jordan Rabold
  • Kommentare: 3
Canon EOS Rebel T4i Flash Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

5 Minuten

Einleitung

This guide details how to replace the flash bulb of this camera.

  1. W3S3ZXWL4hrkCsNr

    • Locate the battery cover at the bottom of the camera.

    • Pull down on the black tab to open the cover.

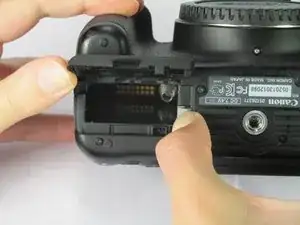

  2. h4eicfKdNYOZACkT

    • Push the grey tab on the right side of the battery.

    • Remove the battery from the slot.

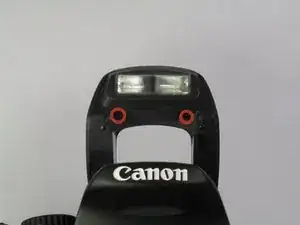

  3. CBTVSiDhUmFYVSnF

    • Using the Phillips screwdriver, unscrew the two 4.9mm Phillips head screws which are located underneath the flash.

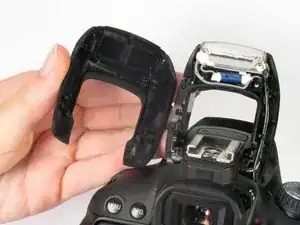

  4. SaLaBfRg34xyQXZZ

    • Remove the covering.

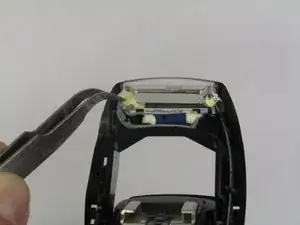

  5. cwTgHt4nWR2PshsP

    • Use the tweezers to remove the excess glue around the wiring. This will allow you to cut the wire and remove the light in the next step.

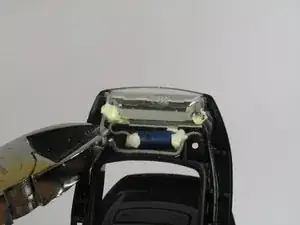

  6. MrKgcb5GKKwIgNCX

    • Use the wire cutters to cut the wiring connected to the flash.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Jordan Rabold

Mitglied seit: 14/04/14

774 Reputation

3 Kommentare

how do you reverse step 6 - cutting the wires?

jeremyyoung -

You dont tell how to make sure capacitors are discharged before changing the flash ? and do you know what is the replacement number of the flash bulb itself ?

jackqc09 -

No parts required? So I can repair my flash not having to buy a new bulb? haha Please, I need the link from where I repair my burned built-in flash :/

gustavoaleme -
