Canon EOS Rebel T4i LCD Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

Keine Schätzung

Einleitung

Using these instructions, we'll make it easy and simple for you to replace the LCD in your Canon camera.

  1. W3S3ZXWL4hrkCsNr

    • Locate the battery cover at the bottom of the camera.

    • Pull down on the black tab to open the cover.

  2. h4eicfKdNYOZACkT

    • Push the grey tab on the right side of the battery.

    • Remove the battery from the slot.

  3. nYFBbOrKRbOWxJYT
    nYFBbOrKRbOWxJYT
    ivSlKksdHZlWCEt4
    XuJKVbQtPTa4ovsq

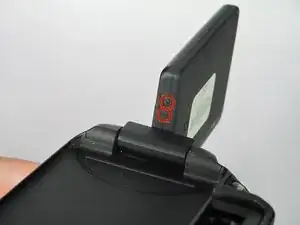

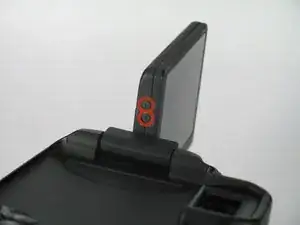

    • Remove the six screws on the housing of the LCD.

    • Four 3.1mm Phillips screws on the side with the hinge.

    • Two 2.7mm Phillips screws

  4. nERRiKSLrDywWQDL

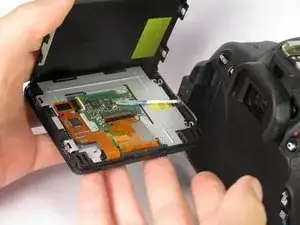

    • Remove the plastic back of the LCD.

  5. YT5uVYA1d1DcVCKy
    YT5uVYA1d1DcVCKy
    2yyISLyVoTrTGxGE

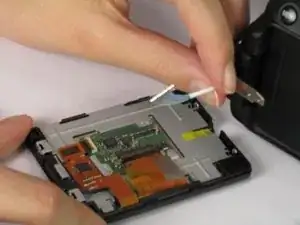

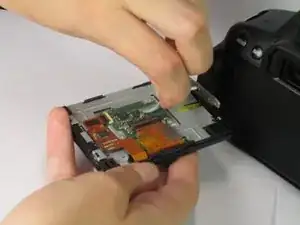

    • Unplug the blue cable attached to the back of the LCD.

Abschluss

To reassemble your device, follow these instructions in reverse order.
