Canon EOS Rebel XS Lens Mount Ring Replacement

Geschrieben von: Daniel Bussone
  • Kommentare: 0
Canon EOS Rebel XS Lens Mount Ring Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

Keine Schätzung

Einleitung

Use this guide to remove the lens mount ring. This particular Canon SLR has a plastic lens mount ring that can wear faster than the metal lens mount rings on other models.

  1. Kcgp6pWKiadnk2j4

    • Remove the two 3mm (1/8") black screws from the side cover using a #00 Phillips screwdriver.

  2. yYTsJRNaE32s2tr2

    • On the bottom, remove the 6mm (13/64") screw with the #00 Phillips Screwdriver.

    • Pry up the panel; starting from the front/bottom corner, as indicated.

    • There's a concealed lip, under the opposite edge.

  3. UoCdlNCFP6UAebRG

    • Remove three medium length screws from the bottom of the camera

  4. 3sgUNsT1AfgdtegU

    • Remove the two medium length screws on the front panel of the camera above the lens mount.

    • Once you done, you may use the Spudger to panel from non-grip side.

    • If you start on the grip side, it will be more challenging to loosen the panel.

  5. KArXoEwQxAMJJCOg

    • Remove the five silver screws from the lens mounting ring using a Phillips screwdriver.

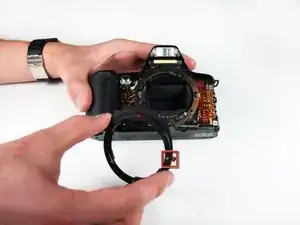

  6. 6462JpTSspCUeuRh

    • Use your fingers to remove the lens mounting ring.

    • There is a small metal button housed in the ring (red square). Be careful not to lose this piece when removing the ring.

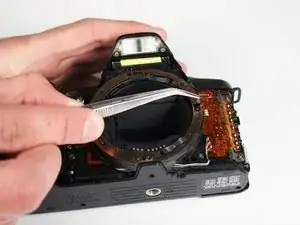

  7. vJaA1WDCTOVJvB2T

    • Use a pair of tweezers to remove the spring on the lens mounting ring.

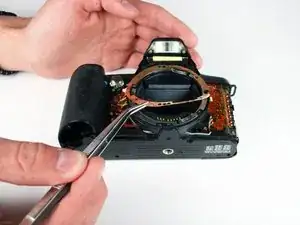

  8. wV6xAiFwKJtP2jgq

    • Use a pair of tweezers to remove the gold metal ring.

    • Take note of the ring's orientation for re-installing it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
