Canon EOS Rebel XSi Front Panel Replacement

Squeeze the eyepiece between your index finger and thumb and lift up and off.

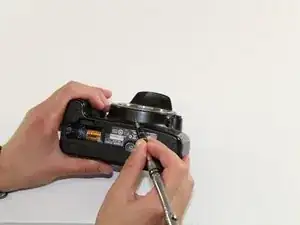

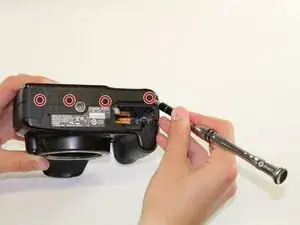

Using the PH000 screwdriver head, remove the four 4 mm screws on the bottom of the camera.

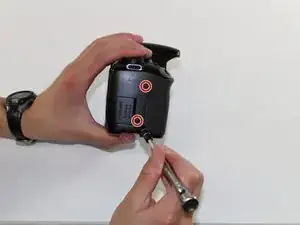

Using the PH000 screwdriver head, remove the two 3mm screws on the right side of the camera (from the LCD screen).

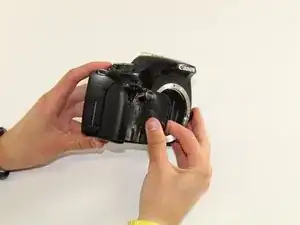

Remove grip by slowly peeling off.

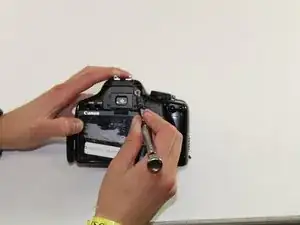

Using the PH000 screwdriver, remove the four 4mm screws behind the eyepiece.

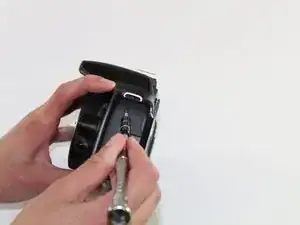

Using the PH000 screwdriver head, remove one 4 mm screw on the left side of the camera (from the LCD screen).

Remove the side panel by lifting off with fingers.

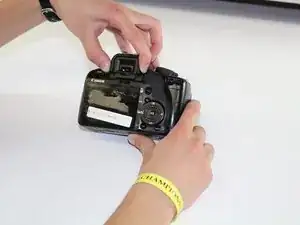

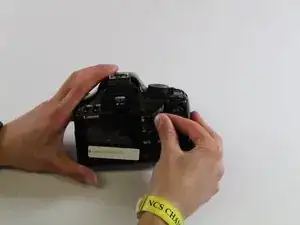

Use hands to pry off the back panel.

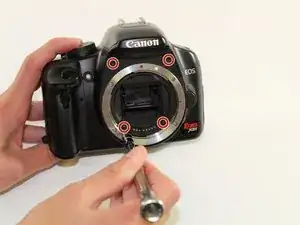

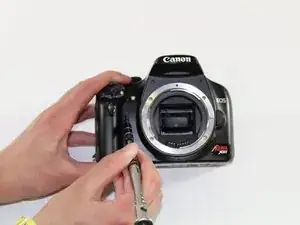

Using the PH000 screwdriver head, remove the four 3mm screws on the front

Remove front grip by gently peeling from the edge towards the center of the camera

Using the PH000 screwdriver head, unscrew the 3 mm screw that was under the grip

Using the PH000 screwdriver, remove the 4mm screw at the bottom of the camera

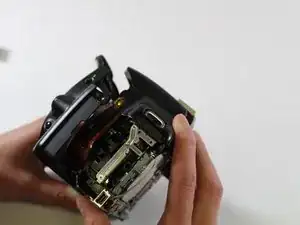

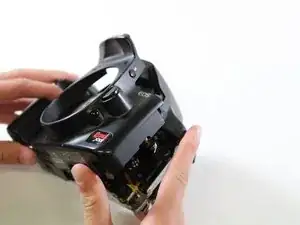

Remove the front panel by using tweezers to pry the panel over the metal ring protrusion
