Canon EOS Rebel XTi Snapshot Button Replacement

Geschrieben von: Luis Calle
  • Kommentare: 1
Canon EOS Rebel XTi Snapshot Button Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

15 - 20 Minuten

Einleitung

After long term use, it is possible that the snap shot button on your camera needs to be replaced. While replacing this component may be somewhat involved, it can restore functionality to your camera.

  1. eVNaGnROZKlM5UPX

    • Place the camera upside down, and position it to where the back of the camera is visible.

  2. B6oKTtSBscpBBZgQ

    • Pull the orange tab to the right to release the primary battery.

  3. LShBoBNhsd3GPMsj

    • To remove the secondary battery, reposition the camera to where the display screen is facing upwards.

    • Place your finger inside the empty battery compartment and pull away from the camera on the ridged battery tab.

    I have the rebel xti as well, and have the same issue, and i have 2 new primary batteries, and 1 new secondary battery, and 1 new charger, yet the camera, still will not turn on. So, if not the battery or the battery charger, what could be the problem? Ty

    Rich Irons -

  4. WZKtsgBtBwH6c5QJ

    • Place the camera on its side with the soft touch grip facing up and the top of the camera facing right.

  5. IJfkvVOxfSbMWfpP

    • Slide the memory card door in the direction of the arrow engraved on the camera.

    • Once the door has slid open to its full position, lift up on the door.

  6. EouHaNMKYtujTXih

    • With the door open, push down the small black plunger next to the CF slot. The CF card will disengage from the slot and be ejected far enough that you can grasp it between thumb and forefinger and remove it from the slot.

    • The plunger will stay in its depressed position until a CF card is again inserted in the slot.

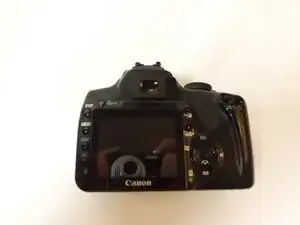

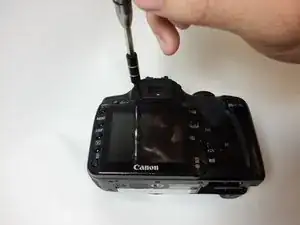

  7. BmvAd1ChRY2SPP6P
    BmvAd1ChRY2SPP6P
    lTFDQMC1aKNwsncH
    xLutRa3jJsOmhboy

    • Remove the single 10 mm JIS #00 shoulder screw.

    • Remove the two 6 mm JIS #00 screws.

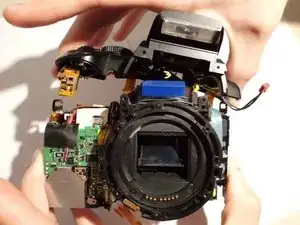

  8. kBCET6yBlPwvEYQG

    • Separate the top casing from the electrical components enough to expose the wire harnesses that will need to be disconnected.

    • Ensure to remove the casing gently. There are several wire harnesses connecting the motherboard to components on the casing.

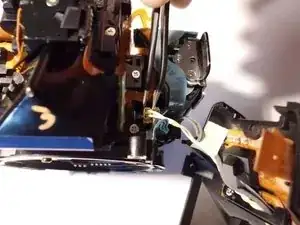

  9. HOymVIuqhhFIlcFG

    • Unplug the yellow connector located on the top of the camera.

  10. LyfoQMjliolyvQMv

    • Disconnect the red connector located by the USB port.

  11. O1C1HHXAcREANUBp

    • Use a J00 screwdriver to remove the two silver 4 mm screws from underneath the snapshot button.

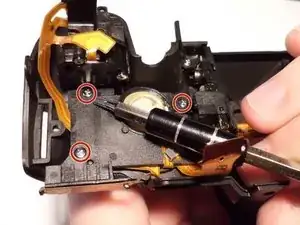

  12. 5ZGblNcJhMXwHUqh
    5ZGblNcJhMXwHUqh
    6IwxnB4bciGIJHAy
    UsCKYbxHmCpLRfub

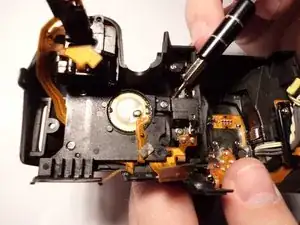

    • Use a J00 screwdriver to remove the 3 mm screws from the plate under snapshot the snapshot button.

    • Place the components off to the side without removing any ribbons.

    • Be careful as ribbon cables are fragile and may rip easily.

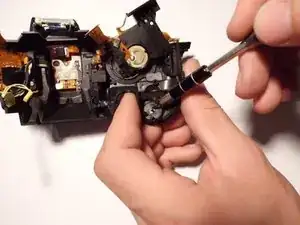

  13. WYGjtpeYpcXQToC3

    • Use a 1.5 flat head bit to remove the c-clip from underneath the snapshot button by pushing against the open side of the pin.

Abschluss

To reassemble your device, follow these instructions in reverse order.
