Canon FS30 LCD Screen Replacement

Geschrieben von: Emanuel Keller
  • Kommentare: 0
Canon FS30 LCD Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

5 Minuten

Einleitung

If your camcorder LCD screen is scratched, cracked or defective in any way, it will have to be replaced. This guide requires some tools and time.

  1. 2QuaFodsLuJpXUBA
    2QuaFodsLuJpXUBA
    FDVelGEKefEvOi35

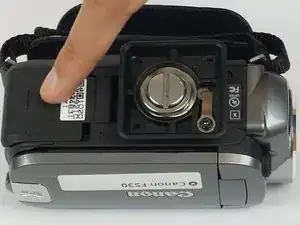

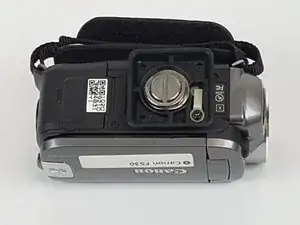

    • Locate battery compartment cover. Turn the device over and locate the battery compartment cover.

    • Place a finger or thumb on the textured section of the battery compartment cover and push forward until you hear a click. Then lift the battery compartment cover.

  2. girSHJRhPTQaRNLO
    girSHJRhPTQaRNLO
    gZAvZxZ63CHsweK4

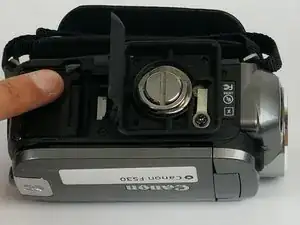

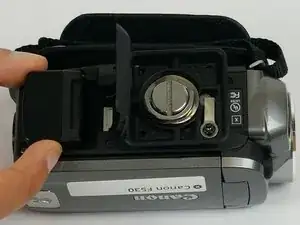

    • Locate the grey latch and move it aside. The battery is spring loaded and will pop up.

    • Remove the battery.

  3. y5U26fEmCIuC1GxA
    y5U26fEmCIuC1GxA
    4mUOVdU3I4eFb6Lo

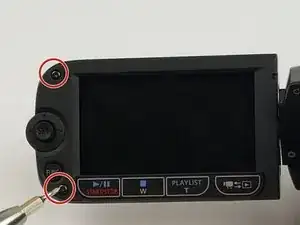

    • Using the Phillips #000, remove the two screws on the LCD panel.

    • Using the Phillips #000, remove two more screws near the LCD panel swivel point.

  4. GAILTUBetKEsGFkv
    GAILTUBetKEsGFkv
    wQosjYCPqiOPVY4u

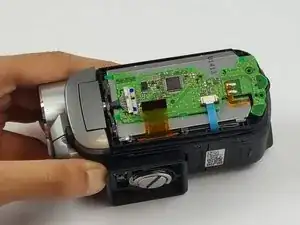

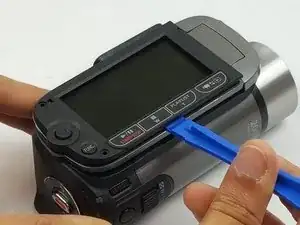

    • Use the plastic opening tool to remove the plastic cover from the LCD panel.

  5. pWYFUEiiyiOpBEMp
    pWYFUEiiyiOpBEMp
    gvHjmFcJZ1IPTqyG

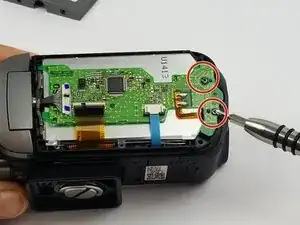

    • Locate and remove two screws on the logic board.

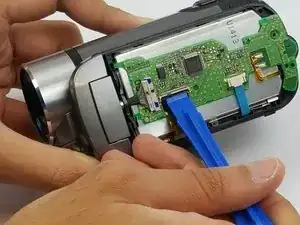

    • Use the plastic opening tool to open the ZIF (zero insertion force) connector. The LCD ribbon should pop up.

  6. MBAgKtab2Y3ENBD2
    MBAgKtab2Y3ENBD2
    stQMxSRriNGDLJde

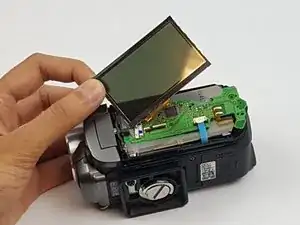

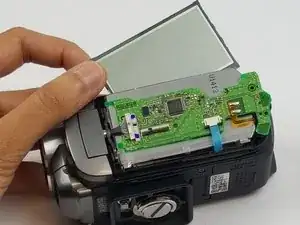

    • Locate the LCD screen underneath the logic board and slide it out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
