Canon ImageCLASS MF4350d Scanner Belt Replacement

Geschrieben von: Tanner Papenfuss
  • Kommentare: 0
Canon ImageCLASS MF4350d Scanner Belt Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

15 - 30 Minuten

Einleitung

If you find that your scanner light does not seem to be moving, then your scanner belt could be the problem. Your scanner belt could be damaged or worn. This guide will help you to replace your scanner belt.

  1. BWcJaWd264SKrprF

    • If at any point you see glass that seems cracked or broken, handle with care. Broken glass is sharp and can cause serious damage.

    • Lift up the lid. Then be sure to examine the glass. If there are any cracks or broken fragments handle with extreme care.

  2. E3ARVE5mZQqFQlVG
    E3ARVE5mZQqFQlVG
    GHD4FlxyvRUOaEdD
    iKOPFoc2wZGNRFjb

    • Locate the black and white hinges.

    • Gently lift out the black and white hinges.

  3. WODYpuWwchVywakQ
    WODYpuWwchVywakQ
    fWgRvqluT3YRGMrL
    Bbs4mRAJYgl6DHJQ

    • Next, locate and remove the four 10mm screws.

  4. QOG5LD11ZNYGPAaW

    • Gently, pry off the top plate, starting from the back of the printer.

  5. qHtlBb42Hth6cJOn
    qHtlBb42Hth6cJOn
    AATwKB3nHCWxyirU

    • After you have taken off the plate, check to make sure that there is no broken glass. If there is broken glass handle it with gloves. Broken glass, if handled improperly, can cause physical injury.

  6. TbQcLGu5GrIAK6LE
    TbQcLGu5GrIAK6LE
    UufsahxHbK2rVTCZ

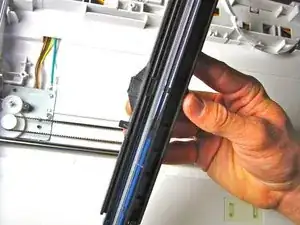

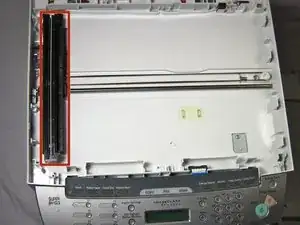

    • Remove the black component by gently pulling it up from the black scanner belt

  7. FfYVojtffCMXUi3Z
    FfYVojtffCMXUi3Z
    2TLQPqApjqcQBklW

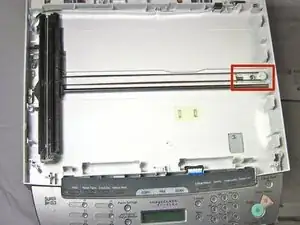

    • Press down on the white release and force it in toward the spring as shown. While you do this, pull the scanner belt out of the track.

    • Take a new belt and put it in the same way that you took it out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
