Canon ImageCLASS MF4350d Scanner light Replacement

Geschrieben von: Tanner Papenfuss
  • Kommentare: 7
Canon ImageCLASS MF4350d Scanner light Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

15 - 30 Minuten

Einleitung

If for some reason your scanner light does not appear to be working correctly you may have to change the scanner light. If you see any broken glass, from the bulb or otherwise, handle with gloves. Broken glass can cause harm to you and the things around you.

  1. BWcJaWd264SKrprF

    • If at any point you see glass that seems cracked or broken, handle with care. Broken glass is sharp and can cause serious damage.

    • Lift up the lid. Then be sure to examine the glass. If there are any cracks or broken fragments handle with extreme care.

  2. E3ARVE5mZQqFQlVG
    E3ARVE5mZQqFQlVG
    GHD4FlxyvRUOaEdD
    iKOPFoc2wZGNRFjb

    • Locate the black and white hinges.

    • Gently lift out the black and white hinges.

  3. WODYpuWwchVywakQ
    WODYpuWwchVywakQ
    fWgRvqluT3YRGMrL
    Bbs4mRAJYgl6DHJQ

    • Next, locate and remove the four 10mm screws.

  4. QOG5LD11ZNYGPAaW

    • Gently, pry off the top plate, starting from the back of the printer.

  5. qHtlBb42Hth6cJOn
    qHtlBb42Hth6cJOn
    AATwKB3nHCWxyirU

    • After you have taken off the plate, check to make sure that there is no broken glass. If there is broken glass handle it with gloves. Broken glass, if handled improperly, can cause physical injury.

  6. SrRVcoujVhNRRdAY
    SrRVcoujVhNRRdAY
    S2nmcBSRFdSwrXJC
    aEydKRWjgVADbPBA

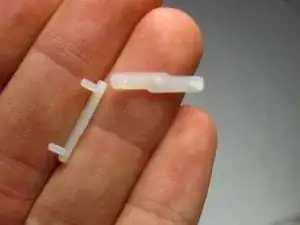

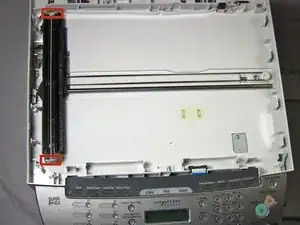

    • Two white tabs are located on the sides of the black component that houses the scanner light. Pull these tabs out, and set them aside.

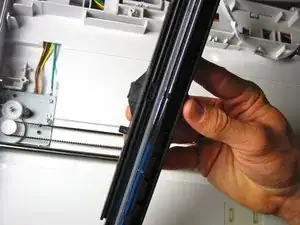

    • Remove black component by gently pulling it up from the black scanner belt.

  7. NshTmmiSOEdooEuB
    NshTmmiSOEdooEuB
    HjExLoNZtFAO5tOR

    • When removing the light, you should be careful not to snap the plastic. If you do snap the plastic, handle with gloves and use extreme precaution, because the plastic may be sharp.

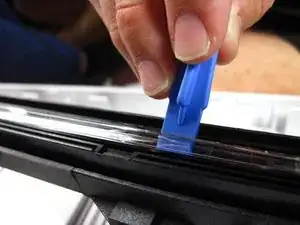

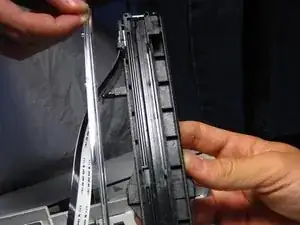

    • The light is in the middle of the black component. Remove the light by prying up one side with the plastic opening tool and working your way to the other side of the light.

    • You may hear a snapping sound as the light detaches from the component.

    • Once you have taken out the damaged light, replace it with a new light.

Abschluss

To reassemble your device, follow these instructions in reverse order.
