Canon ImageCLASS MF4350d Speaker Replacement

Geschrieben von: Helena Yanez
  • Kommentare: 0
Canon ImageCLASS MF4350d Speaker Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

15 - 30 Minuten

Einleitung

This guide will teach you how to replace a faulty speaker.

  1. SaveUCjXXNUmtjrD

    • Lift the printer lid up as shown in the photo.

  2. RIbK4jnc3gmnjZAM
    RIbK4jnc3gmnjZAM
    pXlprey5FgKULsRw

    • Locate and remove the two 10mm side screws. There is one on each side.

  3. WFivXeQ3WA3nAPgO
    WFivXeQ3WA3nAPgO
    FkJybSASTfZLigLN

    • Unhook the plastic panel from the printer starting from the top.

    • You may need to wiggle the panel a bit to loosen it.

    • To remove the bottom part of the paneling gently lay the printer on its back.

    • The scanner lid needs to be supported when moving the printer

  4. pTGWjKO4Bxiqg4Ll
    pTGWjKO4Bxiqg4Ll
    FHWYQWeOiieDTa5Q
    3cchtDe3PiuVdolu

    • Gently unhook the right side paneling (as looking at the printer's front face) from the printer.

    • Use a gentle back and forth motion to wiggle the hooks out.

  5. 4DLa51jVwWJuOWUh

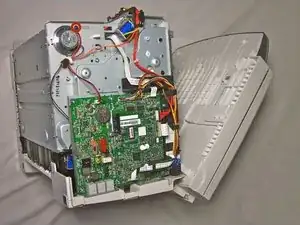

    • Lay printer on its left side for better access to the speaker.

    • Note: The scanner lid needs to be supported when moving the printer

  6. FNZJKgkB6rIxf2a3
    FNZJKgkB6rIxf2a3
    a45erO3FUOnFkn1D

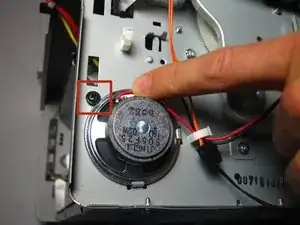

    • Locate the black 7mm screw holding the speaker in place.

    • Using a Phillips head screw driver, unscrew the 7mm screw.

  7. OAeN4sgrYw3DytuF
    OAeN4sgrYw3DytuF
    ycHJBDa1AFXEAQvX
    jGlQe51ckvIkPar2

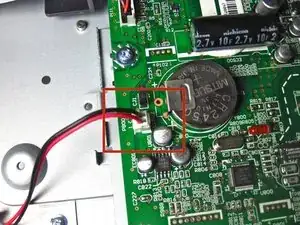

    • Locate the red and black wires connected to the speaker.

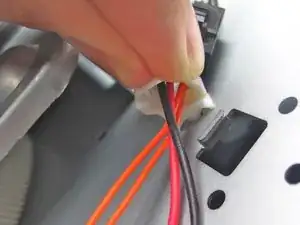

    • Undo the white clip holding the wires in place by pinching the tab on the top.

    • Remove the red and black wires from the wire bundle.

    • When replacing the old speaker, do not touch any part of the new speaker that is not metal other than the wires. Doing so could damage the speaker.

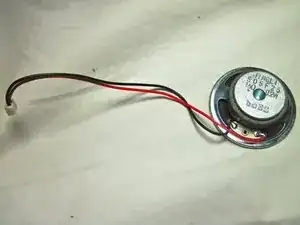

    • Lift out the speaker

Abschluss

To reassemble your device, follow these instructions in reverse order.
