This replacement is not easy and takes a considerable amount of time. This guide will show you how to safely remove the ink head from your printer.
Werkzeuge
-
-

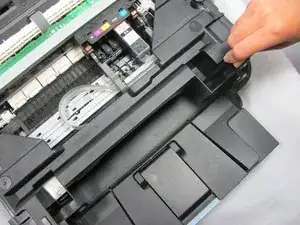

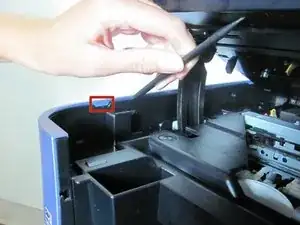

There are a few tabs on the top of the panel that hook down and into the black side panel. Insert the tool in-between the black panel and the blue panel as shown and pull the two pieces apart.
-
-
-

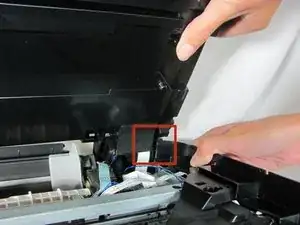

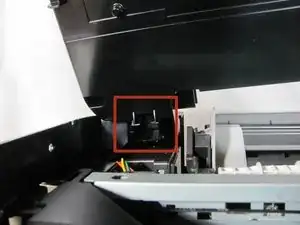

Unhook the lid support by sliding the hook down and to the left. Make sure the support is fully disconnected before proceeding.
-
-
-

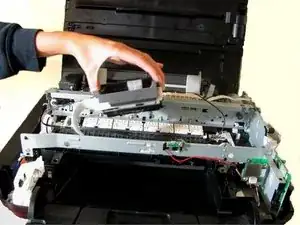

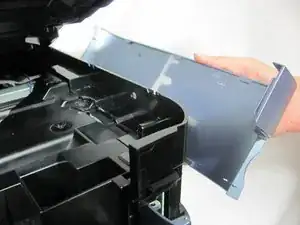

Remove the scanner by pulling the side panels out until the scanner pin is free. Set the scanner aside.
-
-
-

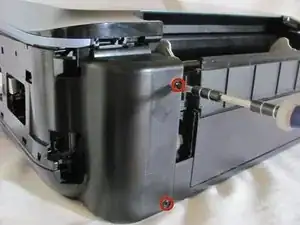

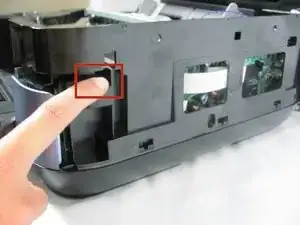

Press down on the clip on the left side of the printer until it clicks, and pull the panel free.
-
-
-

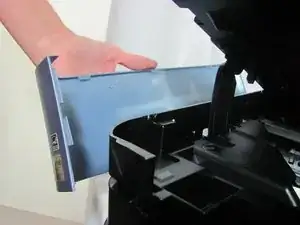

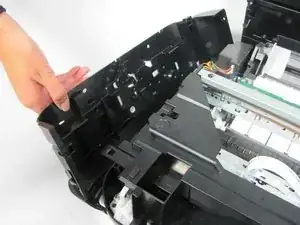

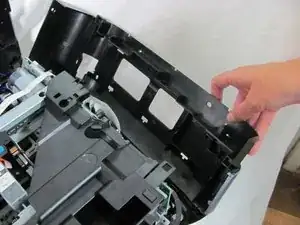

Press down on the clip on the right side panel until it clicks and then pull the panel free.
-
-
-

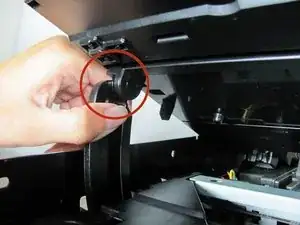

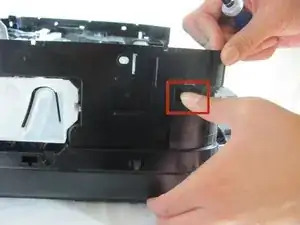

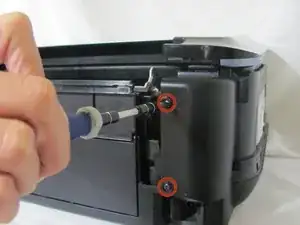

Remove the plastic cover by depressing the clip located on the right side of the printer. Press the clip inwards until it clicks, and then lift the cover upwards and off the printer.
-
-
-

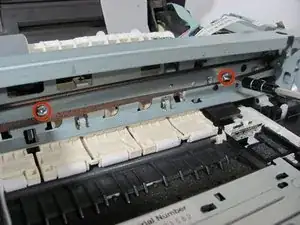

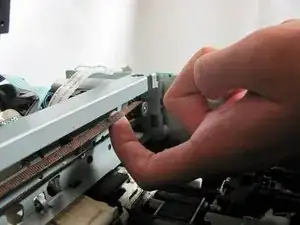

Remove the cord by pulling upwards on it and unhooking it from the pulleys on either end.
-
To reassemble your device, follow these instructions in reverse order.
There is a small curved clear plastic light channel in the right side panel curved corner. It is just above the SD card access door. It is not attached to anything inside and may fall out. Don’t lose it.
