Canon PIXMA MP620B USB Reader Replacement

Geschrieben von: Val Fedorikhin
  • Kommentare: 0
Canon PIXMA MP620B USB Reader Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

15 - 30 Minuten

Einleitung

If your USB's are not being read properly, it is possible that you may need a new USB reader for your Canon PIXMA MP620B. Replace it with our guide here!

This replacement is moderate in difficulty. It can be tricky to get inside the side panels of the printer.

  1. NlcCsgKXipSEXmYY
    NlcCsgKXipSEXmYY
    LCngteQkBfE3QDPy

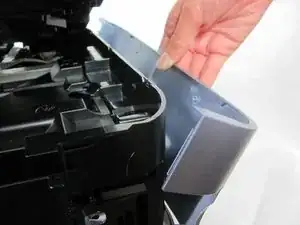

    • Locate the tabs on the top of the panel that hook down and into the black side panel.

    • Insert the Spudger in-between the black panel and the blue panel as shown and pull the two pieces apart.

    • You will hear some snapping. Don't panic: this is just the hooks un-clipping.

  2. RyQBvSCQrSffOmuc

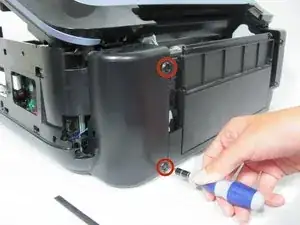

    • Remove the two screws from the back right black panel using the Phillips #00 screwdriver.

  3. NMmx2NRbGDMd3EeK
    NMmx2NRbGDMd3EeK
    NxBw3QMTxss2tIrK

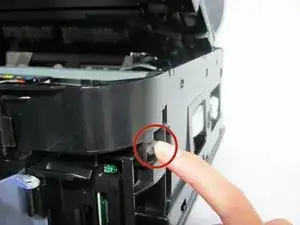

    • There is a tab you will have to push down to remove the part.

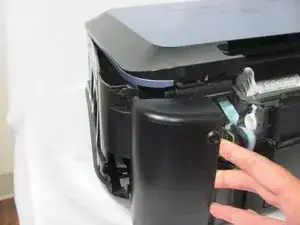

    • Once the tab is released, gently lift the cover away from the rest of the device to disengage the clips.

    • You will hear some snapping. Don't panic: this is just the clips un-clipping.

  4. HODsSd1OxFRl5QmI

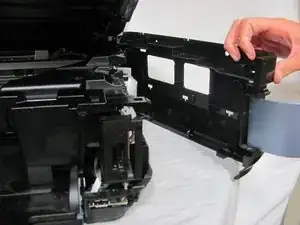

    • After unclipping all the hooks, pull off the black side panel to reveal the inner circuit boards.

  5. r13uGmnshkhAJmeQ

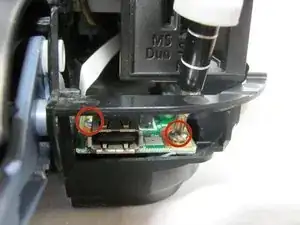

    • Remove the two screws from the USB reader using the Phillips #00 screwdriver.

    • The angle for removing the screws can be somewhat challenging, try not to get too frustrated.

  6. BXGOHvCfIHOGWRYB

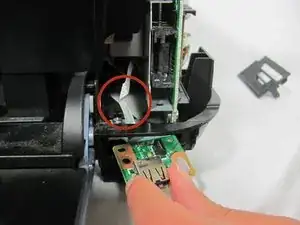

    • Disconnect the large white ribbon cable that leads to the USB reader. As you are pulling out the USB reader, carefully detach the ribbon.

Abschluss

To reassemble your device, follow these instructions in reverse order.
