Einleitung

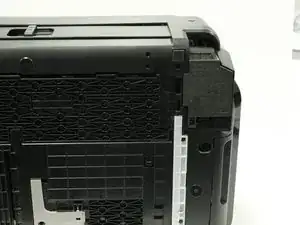

The AC adapter may need to be replaced if you are experiencing issues with the power connection to your printer. The removable power cord is plugged into the AC adapter.
-
-

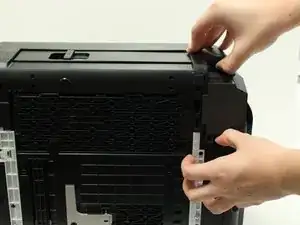

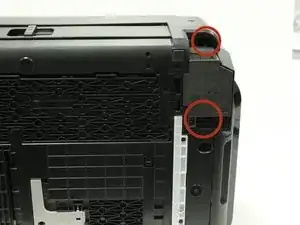

The AC adapter will now be loose, and able to come away from the printer.
-

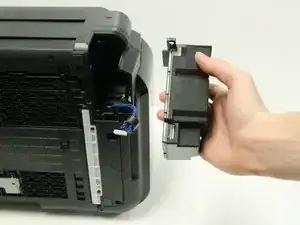

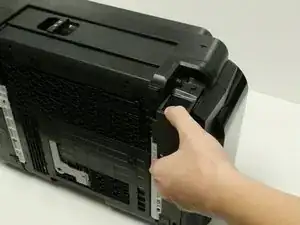

Grasp the AC adapter and pull it toward you to remove it.
-
-
-

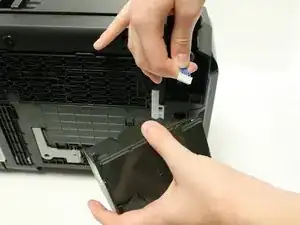

Rotate the AC adapter toward you so that the blue cord, with white connector head, is facing you.
-
-
-
Grasp the white connector head that is attached to the end of the blue cord.
-

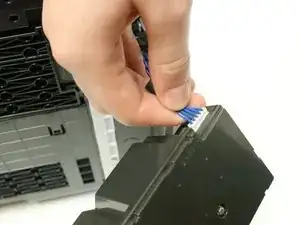

Disconnect the white connector head by gently pulling it away from the AC adapter.
-
You have successfully removed the AC adapter.
-
To reassemble your device, follow these instructions in reverse order.
