Canon PIXMA iP3600 Printhead Replacement

Geschrieben von: Caitlyn
  • Kommentare: 1
Canon PIXMA iP3600 Printhead Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

1 - 2 Minuten

Einleitung

If your printed documents or images are becoming distorted due to a dysfunctional printhead, use this guide to replace the printhead.

  1. iIfuHjcpFiT1vMgF

    • Press the power button to turn on the printer.

  2. QBxBeXgGMsQeH32s

    • Pull down the front output tray cover.

  3. GTGnCYIhwDDnfObC

    • Lift the printer lid.

  4. pZ4lStCKySwJdGom

    • Allow the belt, containing ink cartridges, to adjust and center so that the ink cartridges are visible.

  5. OFcqdRmqZlZ5vHoL
    OFcqdRmqZlZ5vHoL
    SBAVffcCwrLRsP1n

    • Push in the white clip to release the ink cartridge from the printhead.

    • Lift the ink cartridge from the printhead.

    • Repeat this process for the remaining ink cartridges.

    • You have successfully removed all ink cartridges.

  6. P1ir2eXDuG6RRpmK

    • After removing all ink cartridges, lift the printhead lock lever.

  7. PkeFm2QO6OKr2IDF

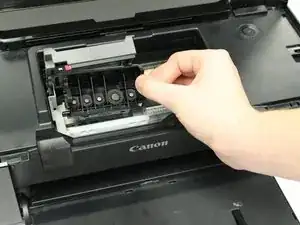

    • Pull up and lift out the black piece that previously held the ink cartridges. This is the printhead.

  8. njENAdoOhkJkqL4L

    • You have successfully removed your printhead.

Abschluss

To reassemble your device, follow these instructions in reverse order.
