Einleitung
The Cannon PowerShot A1000 IS is a compact digital camera. This guide gives instructions to remove and reattach the plastic casing when attempting internal repairs.
Werkzeuge
-
-
The case is held together with two types of screws: fine thread screws that attach the case to the metal parts below, and coarse thread screws that attach the case to the plastic battery compartment.
-
-
-

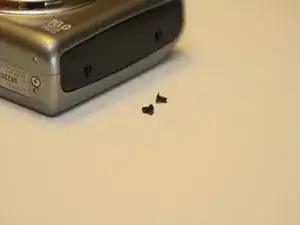

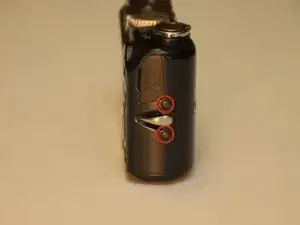

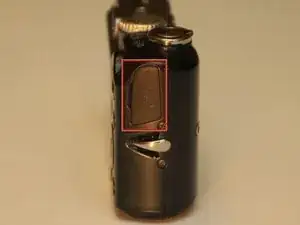

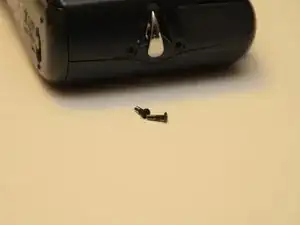

Remove the two coarse thread screws on the side of the device, to the left of the camera lens.
-
-
-

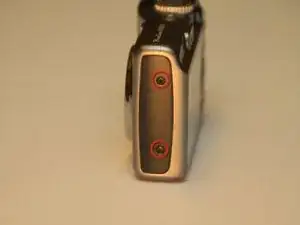

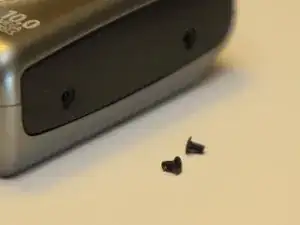

Remove the two fine thread screws on the side of the device, to the right of the camera lens.
-
-
-

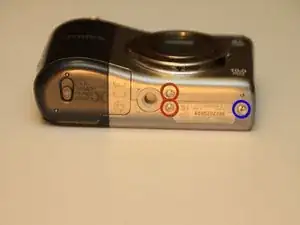

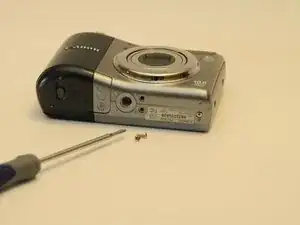

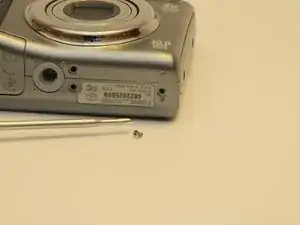

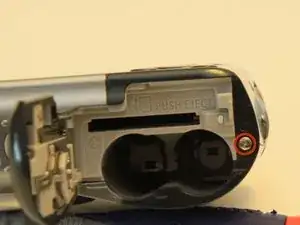

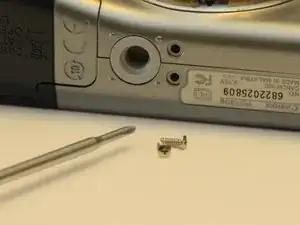

Remove the two coarse thread screws and the single fine thread screw from bottom the camera.
-
-
-

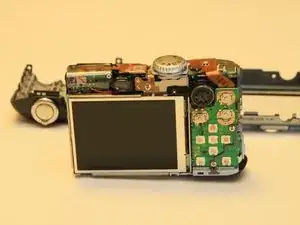

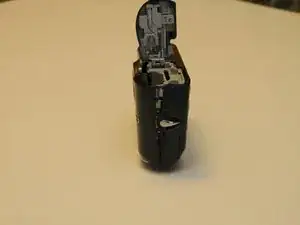

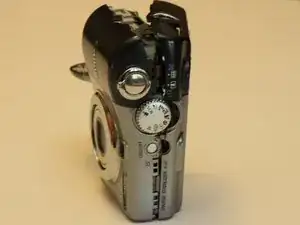

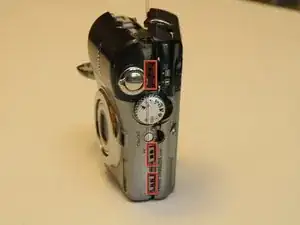

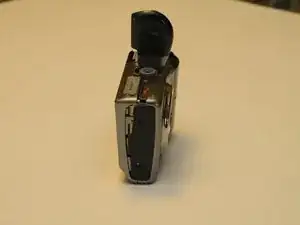

Gently pry apart the two covers starting from the bottom. When there is a 1/4" gap, run your finger gently along the the top of the camera, on the back cover, to release the three catches that secure the shell.
-
To reassemble your device, follow these instructions in reverse order.
