Einleitung
If your Canon PowerShot A200 camera’s lens is damaged or not properly functioning, use this guide to replace the lens.
A camera’s lens is required in order to successfully take a photo. A camera lens may become damaged over time through heavy wear and tear, or if the camera is dropped and the lens becomes scratched or shattered. If your camera’s lens no longer functions to its fullest potential, consider replacing the lens for ideal photography.
Before using this guide, locate the camera lens, which can be found on the front side of the overall case. This guide is intended for users familiar with the Canon PowerShot camera or users who have prior experience fixing cameras.
It is important to be gentle when removing any piece of the camera from the body. To ensure all pieces do not become damaged or lost, place all small parts in a safe space while working on the camera.
-
-
Locate a screw and a rubber covering on the left side of the camera. Slide the rubber covering to expose a second screw.
-
Remove both screws with the Phillips #00 screwdriver.
-
-
-
Open the battery compartment on the right side of the camera by pushing slightly in the direction of the arrow.
-
Remove the two screws by the memory card slot using the Phillips #00 screwdriver.
-
-
-
Pull the grey tab towards the back of the camera. Lift the black cover to expose the battery slots.
-
Remove the two visible screws with the Phillips #00 screwdriver.
-
-
-

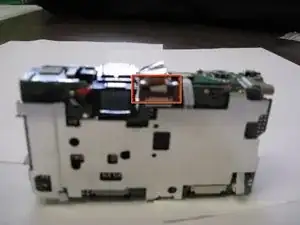

Locate the black tabs on either side of the white ribbon.
-
Use the metal tweezers to gently move these tabs to the outside edges of the ribbon.
-
Gently pull the white ribbon out from its connection.
-
-
-
Locate the black tabs on either side of the orange ribbon.
-
Use the metal tweezers to gently move these tabs to the outside edges of the ribbon.
-
Gently pull the orange ribbon out of its connection.
-
-
-

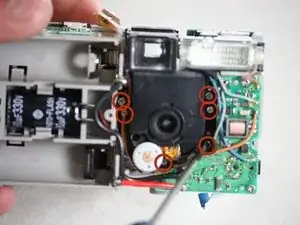

Use the Phillips #00 screwdriver to remove the seven screws holding the camera body to the case.
-

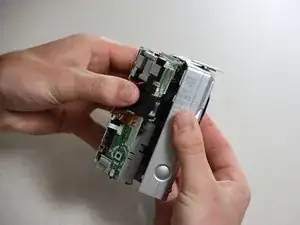

Pull out the camera body from the camera casing.
-

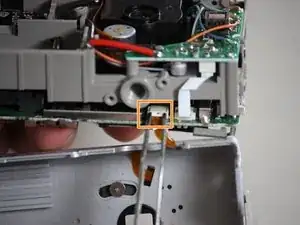

Use the metal tweezers to unplug the orange connector.
-
-
-

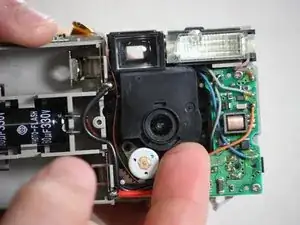

Use the metal tweezers to remove the orange ribbon from the top of the camera body.
-

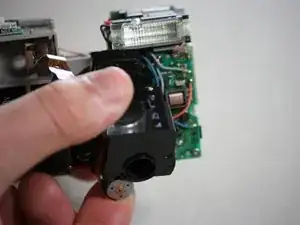

Gently remove the lens from the camera body.
-
To reassemble your device, follow these instructions in reverse order.
