If the LCD Display is cracked or not functioning, you can replace it with a new one. Once the case has been disassembled, a new LCD Display can be installed.
-
-

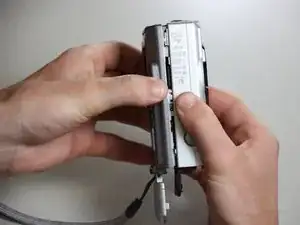

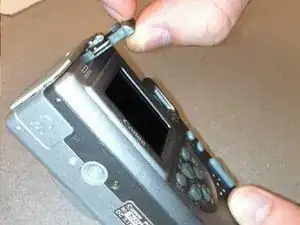

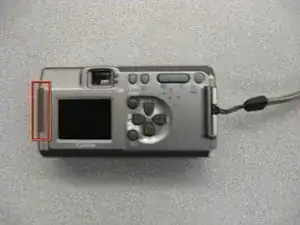

Locate a screw and a rubber covering on the left side of the camera. Slide the rubber covering to expose a second screw.
-
Remove both screws with the Phillips #00 screwdriver.
-
-
-
Open the battery compartment on the right side of the camera by pushing slightly in the direction of the arrow.
-

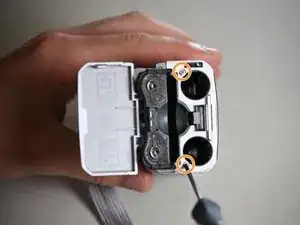

Remove the two screws by the memory card slot using the Phillips #00 screwdriver.
-
-
-

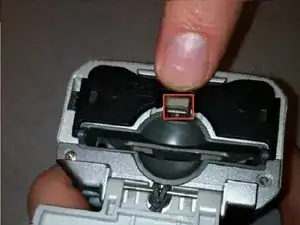

Pull the grey tab towards the back of the camera. Lift the black cover to expose the battery slots.
-

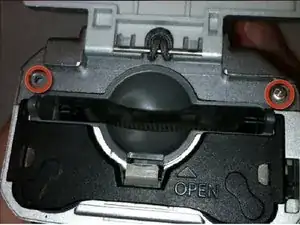

Remove the two visible screws with the Phillips #00 screwdriver.
-
-
-

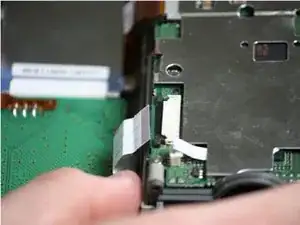

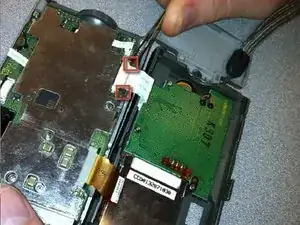

Locate the black tabs on either side of the white ribbon.
-

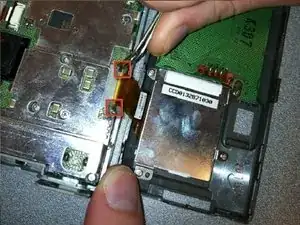

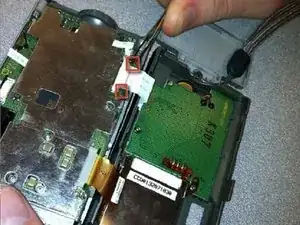

Use the metal tweezers to gently move these tabs to the outside edges of the ribbon.
-
Gently pull the white ribbon out from its connection.
-
-
-
Locate the black tabs on either side of the orange ribbon.
-
Use the metal tweezers to gently move these tabs to the outside edges of the ribbon.
-
Gently pull the orange ribbon out of its connection.
-
-
-
Remove the camera case. Refer to the prerequisite guide Disassembling the Canon PowerShot A200 Case as needed.
-
Locate the LCD Display. It is the thin, rectangular panel adjacent to the view finder.
-

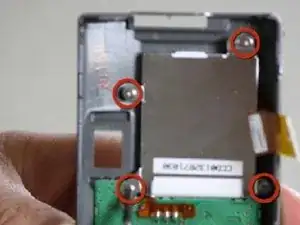

Use the Phillips head screwdriver, rotating counter clockwise, to remove the four screws in each corner of the LCD Display. Set the screws aside.
-
-
-

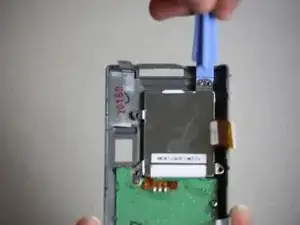

Use the plastic opening tool, operating from the outside edge of the camera, to lift the LCD Display away from the back case.
-
-
-

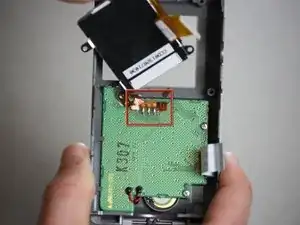

Use the soldering kit to desolder the LCD Display from the orange strip which is connected to the back of the camera.
-
Use the soldering kit to attach your new LCD Display in place of the old one.
-
-
-
Locate the four set aside screws. Use the Phillips head screwdriver, rotating clockwise, to screw one into each corner of your new LCD Display onto the back camera case.
-
-
-
Begin reassembling the camera with the orange strip with the yellow edge.
-

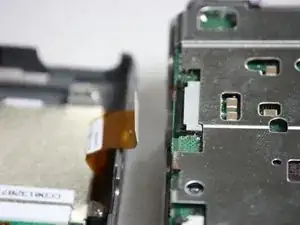

Align the orange strip on the back half of the camera with its slot on the front part of the camera.
-
Use the metal tweezers to insert the orange ribbon into the slot. Push the ribbon in as far as it can go into the slot.
-
Use the metal tweezers to push the black tabs at each side of the slot toward the center. The tabs will hold the orange ribbon in place.
-
-
-

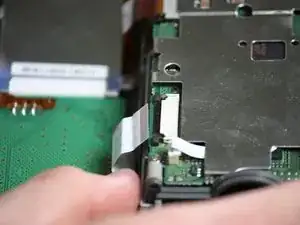

Align the white strip on the back half of the camera with its slot on the front part of the camera.
-
Use the metal tweezers to insert the white strip into the slot. Push the strip in as far as it can go into the slot.
-
Use the metal tweezers to push the black tabs at each side of the slot toward the center. The tabs will hold the white strip in place.
-
-
-

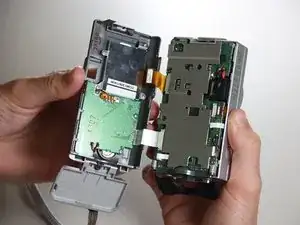

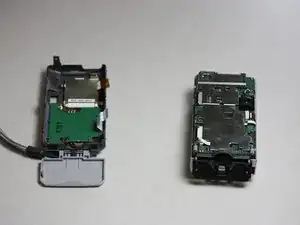

Carefully slide both halves of the camera together, making sure all tabs are aligned. Press the sides firmly together until you hear a click.
-
-
-

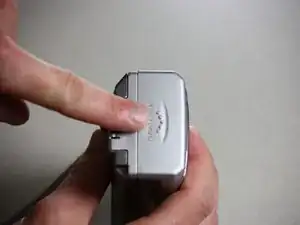

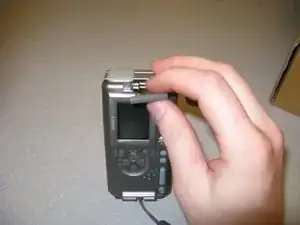

Open the outer battery cover.
-

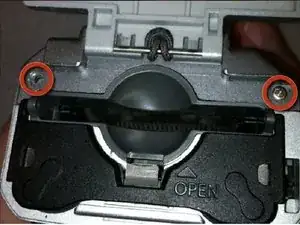

Use the Phillips head screwdriver, turning clockwise, to fasten two screws on each side of the battery case.
-
Flip the black battery cover down and press until it is secured by the gray tab.
-
Use the Phillips head screwdriver, turning clockwise, to fasten two screws on each side of the memory card slot.
-
Shut the outer battery cover.
-
-
-

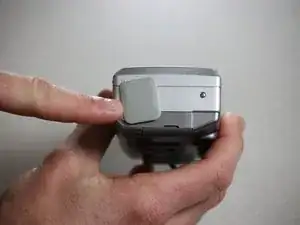

On the opposite side of the camera, use the Phillips head screwdriver, turning clockwise, to fasten two screws under the rubber cover.
-
Once both screws are in place, put the rubber cover back in place.
-
-
-

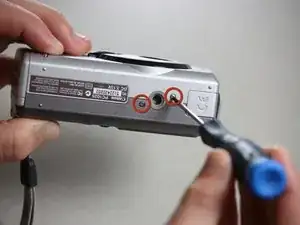

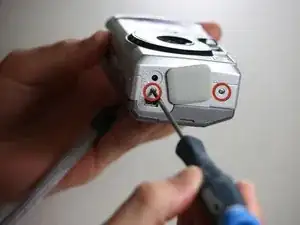

On the bottom of the camera, use the Phillips head screwdriver, turning clockwise, to fasten two screws on either side of the tripod opening.
-
The installation of your new LCD Display is complete.
-
Follow the instructions in the prerequisite guide Disassembling the Canon PowerShot A200 Case. Once completed, proceed with installing a new LCD Display.
