This guide will require you to use a Phillips head screwdriver to remove the screws holding the screen in place.
-
-
First, remove the batteries and memory card.
-

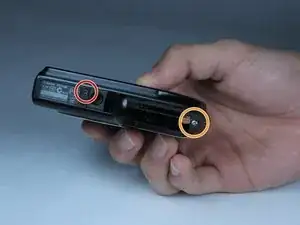

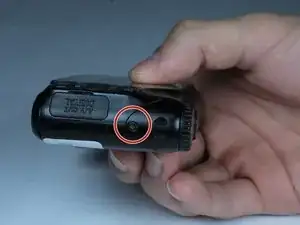

Remove the 5.0 mm black screw with a Phillips #00 screwdriver.
-

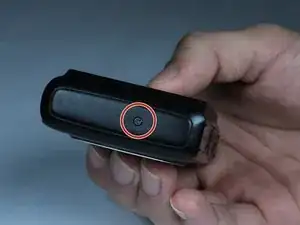

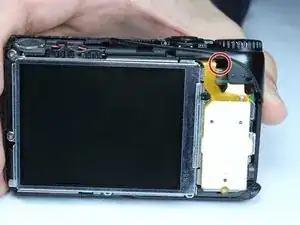

Remove the 5.0 mm silver screw with a Phillips #00 screwdriver.
-
-
-
Begin taking off the back cover with a plastic opening tool.
-

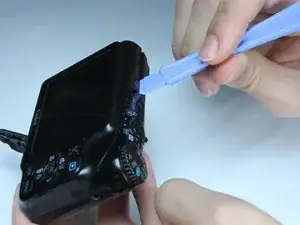

Begin by wedging the plastic opening tool behind the bottom left corner of the LCD screen as shown.
-

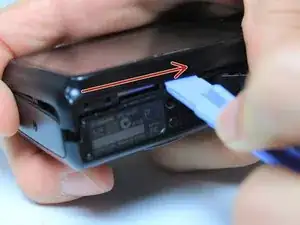

Slide the plastic opening tool to the right, along the mating edge, to pry off the back cover.
-
Continue taking off the back cover along the left side of the camera as seen in the third picture.
-
-
-

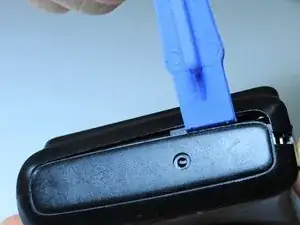

Use the plastic opening tool to separate the top section of the back cover from the frame.
-

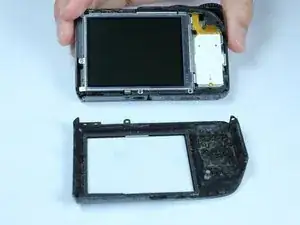

Once there is enough separation between the back cover and the frame, remove the back cover for replacement.
-
-
-

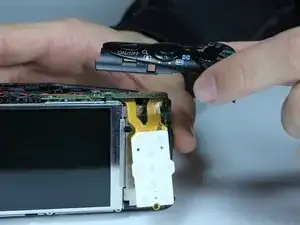

Gently lift of the buttons for replacement. They should come off without excessive force.
-
If the buttons do not lift off easily, you may have unscrewed the wrong screw. Revert to previous step.
-
-
-

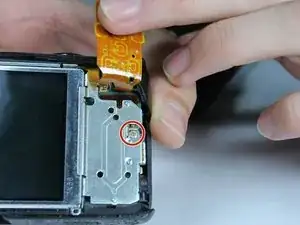

Lift up the electrical ribbon shown to access the next screw.
-

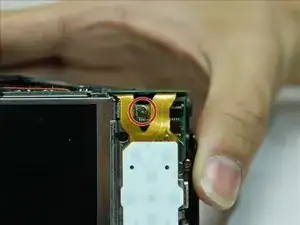

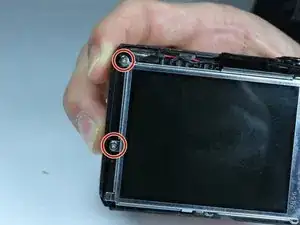

Remove the 3.9 mm screw with a Phillips #00 screwdriver.
-
-
-

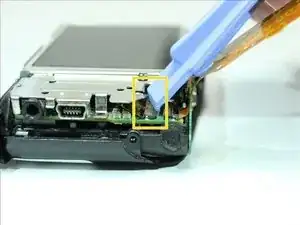

There is an electrical flap that holds the LCD ribbon down. Note the flap in is closed position.
-

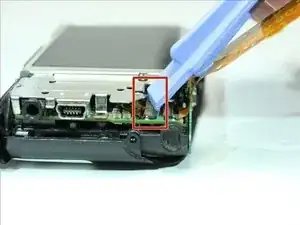

Lift up the flap with a plastic opening tool.
-
-
-

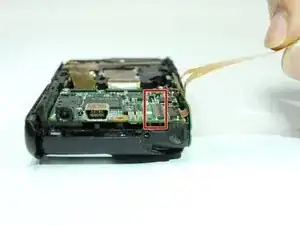

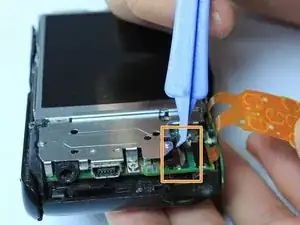

Locate ribbon flap, enclosed in red. (picture 1)
-
Using a plastic opening tool, lift up the ribbon flap to allow insertion of the LCD ribbon. (picture 2)
-

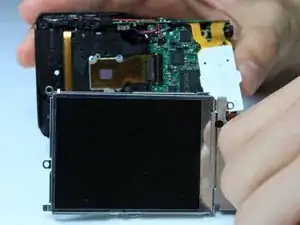

Place the LCD screen on the camera and align the ribbon underneath the open ribbon flap. Close the ribbon flap onto the ribbon. (picture 3)
-
To reassemble your device, follow these instructions in reverse order, starting with the last guide step.
