Canon PowerShot A2500 Retractable Lens Replacement

Geschrieben von: Lynden Mills
  • Kommentare: 2
Canon PowerShot A2500 Retractable Lens Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

10 - 15 Minuten

Einleitung

The lens mechanism is the allows photos to use the zoom feature. It will also cause distortions in photos if it is malfunctioning.

  1. RmqmLeL6dsZJWtqU
    RmqmLeL6dsZJWtqU
    DsIxOw54ccI2FbbG

    • Remove the knot holding the wrist lanyard onto the camera

  2. 4ExGeOKsWboBc3eL

    • Open the latch at the bottom corner of the device to reveal the battery and SD card housing.

    • There is an orange latch holding the battery in place which must be pushed back in order to free the battery.

    • Once the battery is removed push the SD card and this will activate a spring ejecting the card from the camera.

  3. 3XXAPTTjuNPsu3fi
    3XXAPTTjuNPsu3fi
    1BYGCH5ATJEbqXpc
    AEZO3DUR2RDApSRt

    • Remove the 6 Phillips #00 exterior screws from the camera. Two are located on the bottom and two are located on either side as shown. Notice that one of the screws is under the AV Out Digital flap on the side. All exterior screws should be 2.4mm in length

  4. VAZWXkQGTCaaCbcO
    VAZWXkQGTCaaCbcO
    yGUHdKEkbovpAZOr
    GBOOFsFdoTul6PGU

    • Pry apart the camera casing using the plastic opening tool tool provided. Once the casing has begun to separate pull the two sides apart with your hands.

    • Be careful not to bend the plastic casing to much, as it will crack.

  5. YAYyAm4VUfZtvAcK

    • Remove the single philips #00 screw on the button pad which are 2.2mm long. This screw is circled in red in the guide image.

    • Next, remove the two 2.4mm long screws located in between the LCD screen and the touch pad. These screws will require a Phillips #00 screwdriver.

  6. N1kIpCPdNlhfYKHH
    N1kIpCPdNlhfYKHH
    d4EWu4FL4bGDOvgU

    • Pull the two clips off located near the power button

    • The clips are easily broken, use care while disconnecting these clips.

  7. OLfjiT3qIUUIMTbb
    OLfjiT3qIUUIMTbb
    tZJpnRvO6YNvU6Wi
    gKIjZXhEOs5HSA6A

    • Remove the circuit ribbon connecting the flash to the camera in order to proceed to the next instruction.

    • Carefully pull out the circuit ribbon from the camera which should be the last piece holding the button pad onto the camera.

    I feel that this guide is missing a step. The third picture shows the plate behind the buttons lifted off, but not how this is done. It appears to be held in place by a screw on the top of the camera that’s beneath the circuitry that I can’t find mentioned in the guide.

    Shannon Hamilton -

    That is certainly true as I had to find out after many tries! Jack

    Jack Banks -

  8. sQiUZHXRTQuiB3Yw

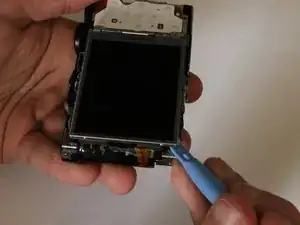

    • Pop the LCD display out of its frame using the plastic opening tool in order to get to the screws under the display. Use the plastic opening tool to complete this step

  9. uEKVfxRVCsJobvAI
    uEKVfxRVCsJobvAI
    IdIERUxdKqSK1oFO
    YCAWuWUgbNlNNbsD

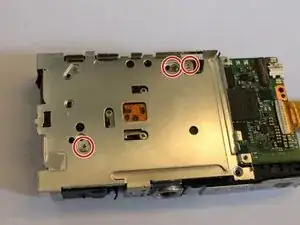

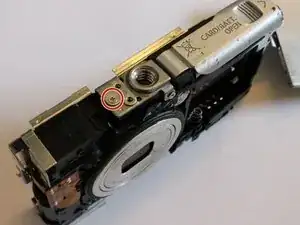

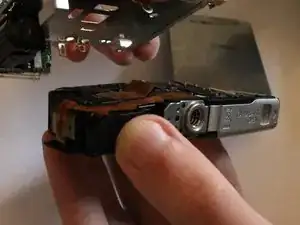

    • Remove the four following phillips #00 screws from the metal frame

    • There should be two screws top right, one bottom left, and one on bottom of the frame

    • The screw dimensions should follow: Top right should be 2.3mm and 3.6mm long. Bottom left should be 3.6mm and the bottom of the frame should be 1.6mm

  10. fBUq2bmHJGoVmVBm

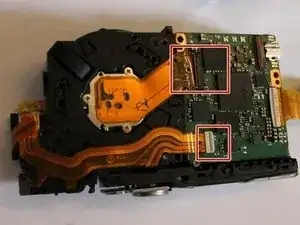

    • Lift the tabs at the end of both ribbons

    • Disconnect each ribbon from the circuit board

Abschluss

To reassemble your device, follow these instructions in reverse order.
