Canon PowerShot A3400 IS Plastic Case Replacement

Geschrieben von: Emily Pretorius
  • Kommentare: 0
Canon PowerShot A3400 IS Plastic Case Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

5 - 10 Minuten

Einleitung

This guide is important since it will allow you to access the internal components of the camera. It will also allow you to replace the plastic case if the case has been damaged or warped in any fashion.

  1. MGHPURReCQMFWQQW

    • Place thumb on area right next to where it says open and slide to the right to open.

  2. APP4iGVpQvboSDJH

    • Remove the battery by pushing the orange object outwards; the battery will spring up and out.

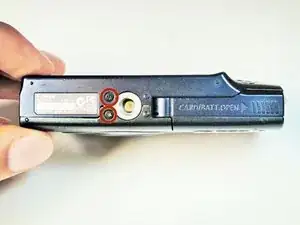

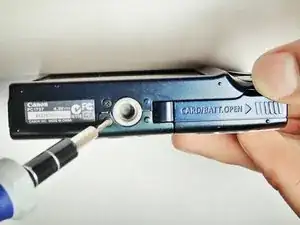

  3. YHvZvvDp1Lw22E4T
    YHvZvvDp1Lw22E4T
    521ZTHPSfwIsVQFe

    • Remove the two 5.00 mm screws in the bottom of the casing with a Philips #000 screwdriver

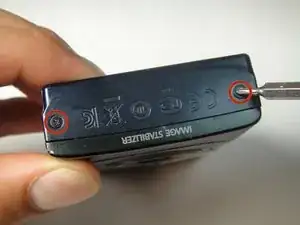

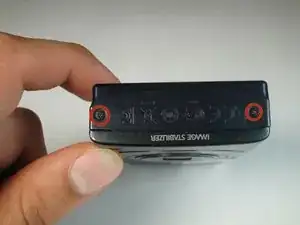

  4. JHLINlf1JtbpokXD
    JHLINlf1JtbpokXD
    dNJMebRDgyjkHhLS

    • Place the camera on to the side that has the image stabilizer label.

    • Remove the 5.00 mm screws that are on this side using the screwdriver.

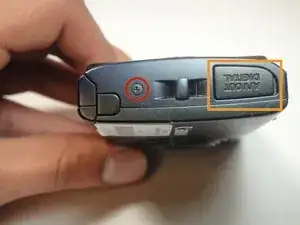

  5. fGNKoCoFpplXvIZc

    • Place camera on to the side with the A/V Out Digital Cover facing up.

    • Remove this visible 5.00 mm screw.

    • Pull the A/V Out Digital cover back to uncover the next step.

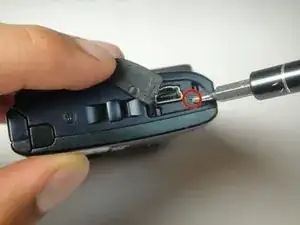

  6. DROQfALIP1QFaHQd

    • Remove the 5.00 mm screw from behind the cover.

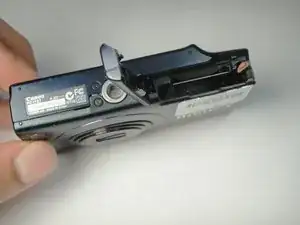

  7. HwOC4FthE3dHjROY

    • Make sure the battery cover is open.

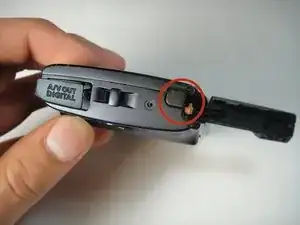

  8. jFQMUKYKYgpymwK1
    jFQMUKYKYgpymwK1
    Q5KdUAK5XplRtUhC

    • Turn the camera onto the side with the A/V out Digital cover.

    • Use your finger to pull this tab to the right.

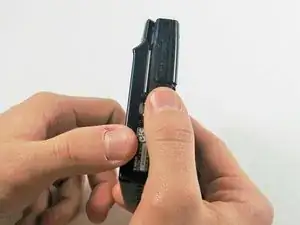

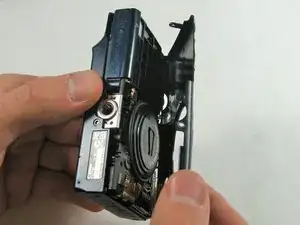

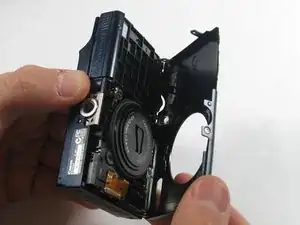

  9. jKVQTSdbJJuZYA3r
    jKVQTSdbJJuZYA3r
    TwIOQnFJCHoEervc
    IEYTnOooRI5tnoGK

    • Remove the lens side by using your fingers or a spudger to pry it gently open.

    • Try to pry it loose all around that side so that it is easier to pull off.

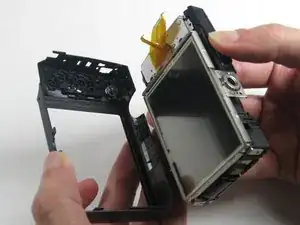

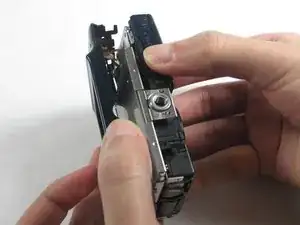

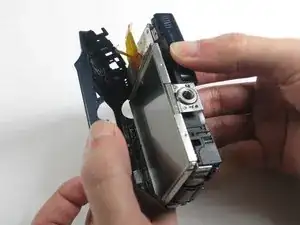

  10. ZUZn1SVNFcCUdLwb
    ZUZn1SVNFcCUdLwb
    fCSKOdinAQIFCSlY
    EKifEhKfsUMNfRnA

    • Using your fingers, pull the screen side gently off.

    • Try to loosen it all around that side so that it is easier to try and pull it off.

Abschluss

To reassemble your device, follow these instructions in reverse order.
