Einleitung

This guide will involve the removal of various screws, as well as detaching the two gold ribbons connecting the motherboard to the camera.

  1. DNAR6XvqGNonBwfE
    • Slide the switch on the battery cover labeled "CARD/BATT. OPEN." to the right.

    • While still holding the switch, pull the cover down, allowing it to release and open.

  2. 2YcGZ2tQ3mQKy4np
    • Tilt the camera slightly to allow the batteries to fall out.

  3. ZPgSTP2Dhh3YM4Ns
    • Press on and release the memory card to eject it.

  4. XxTrgvax1kcSdNtt
    • Unscrew the 5mm Phillips #00 screw from the bottom of the camera.

    • Make sure to keep the different size screws organized to make reassembling the camera simpler.

  5. 2ejiXXNIUoWULgrp
    • Unscrew the three 2mm Phillips #00 screws that are located on the bottom of the camera.

  6. 2nWDacX4nPHWZoCs
    • Remove the 4mm Phillips #00 screw that is located on the left side of the camera, if the display screen is facing you.

  7. WV3sAlkeAxSLWjVl
    • Take out the 4mm Phillips #00 screw under the rubber flap on the right end of the camera.

  8. Nhttgscad3GyBGxI
    Nhttgscad3GyBGxI
    HCg1XNinJxmQRcW2
    • Remove the second battery cover on the bottom of camera.

    • Take the silver battery out of the camera.

  9. MlNOGqaONEgyjRQv
    MlNOGqaONEgyjRQv
    4ygPsP3Fh3cSsxR2
    ZuRKaEPYTEdTtKj1
    • Remove the 4mm Phillips #00 screw on the inside of the flap that hides the battery and memory card slots.

    • Remove the light grey, plastic piece.

    • Remove the plastic portion of the battery flap cover. The metal piece will remain attached.

  10. sABWSYvRESqTUmu3
    sABWSYvRESqTUmu3
    dlATFvQSQ1qh2EWi
    JqJgifwiQWsNFTRG
    • Slightly pull on each side of the camera. It should loosen up and come apart.

    • If it does not pull apart right away, use a little more force.

    • Do not give up!

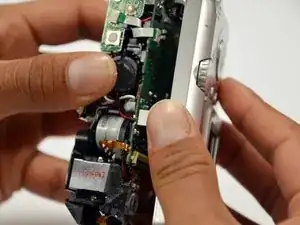

  11. ZoYBQlq4CQGmAVPq
    • Remove the back case of the camera by pulling from the top.

    • Be careful when pulling off the case. There is a delicate gold ribbon connecting the bottom of the camera to the back case.

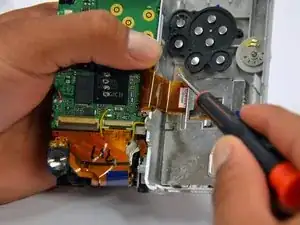

  12. 1kTi4OFEnuFPNxes
    • Remove the 4mm Phillips #00 screw from above the ribbon.

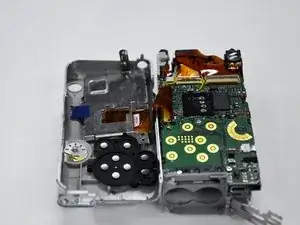

  13. kZGLSFobvhmcihYR
    • Gently peel off the blue tape on the top of the LCD screen.

  14. ivTPZCw6IdNYBqbl

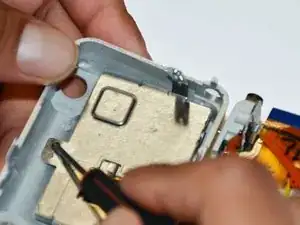

    • Remove the 4mm Phillips #00 screw previously concealed by the blue tape.

  15. e4CoCNAZnvDAXqvZ

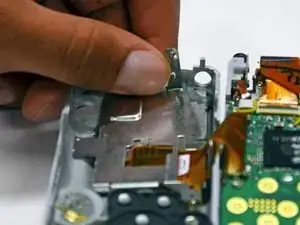

    • Gently lift the LCD screen off of the front casing by pulling up a tab on the side of the camera.

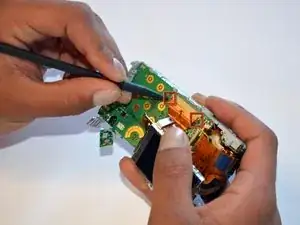

  16. N1ASITOkdFBIdQuM
    • Using a spudger, lift the grey tabs to allow the ribbon to slide out.

  17. UDq6Dq1MN3TKwfoo
    • Since the tabs have been lifted, the ribbon should now slide out out easily.

    • Be careful not to distort the ribbon in any way.

    Thank you very much for the good knowledge that I can do by myself.

    K201

    Rachsuthee waiP -

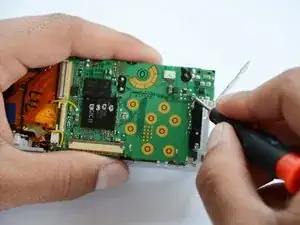

  18. 6UStwLOSwkudJuFU
    • Remove the 5mm Phillips #00 screw located above the small black piece on the right side of the mother board.

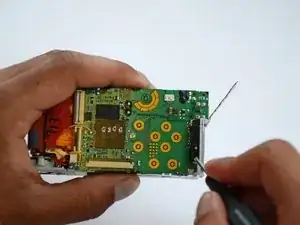

  19. EqIVE3x4MyaNTDVE
    EqIVE3x4MyaNTDVE
    mHXir1BwcCTW6VlF

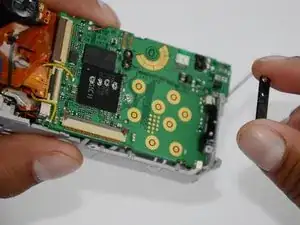

    • Remove the 4mm Phillips #00 screw at the bottom of the black piece.

    • Detach the black piece that the screws previously held in place.

  20. IfeoQ1M3Lia2jYER

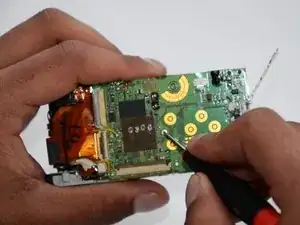

    • Remove the 5mm Phillips #00 screw in the middle of the motherboard.

  21. m2d4UVWNrxFRLwvM

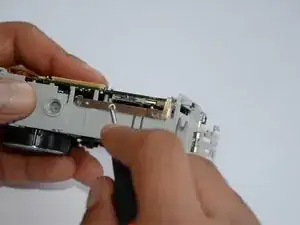

    • Remove the 5mm Phillips #00 screw that holds the metal piece to the bottom of the camera .

  22. whxPeqjHvwMwPFyU

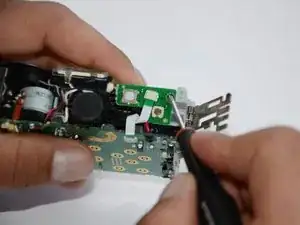

    • Remove the 5mm Phillips #00 screw that is located on the top of camera.

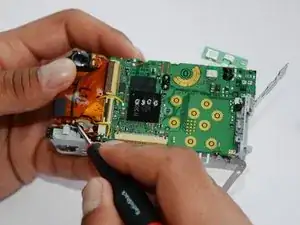

  23. UpsY4nUeVosScEfg
    • Remove the 2mm Phillips #00 screw that is located on the far left of the motherboard.

    • Be careful not to damage the multiple adjacent orange ribbons.

  24. dR1JhmaySYIaqyV2

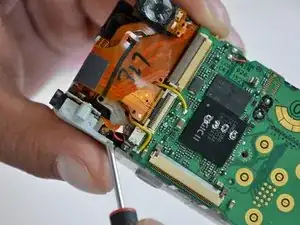

    • Remove the 5mm Phillips #00 screw near the bottom left of the motherboard.

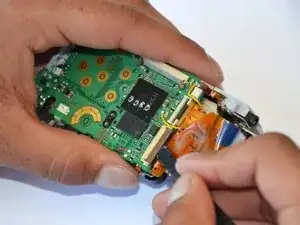

  25. ynHFDIumTYJAZrSv
    ynHFDIumTYJAZrSv
    KL4PkHa2Ldu4aWlw

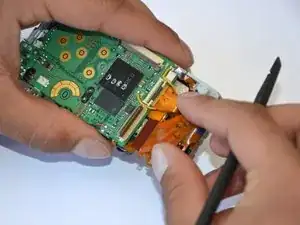

    • Using a spudger, unlock the locking mechanism that holds the lower orange ribbon in place.

    • Once unlocked, slide out the ribbon.

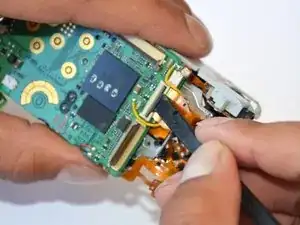

  26. IDG1fVWQGbRDAmvC
    • Using a spudger, unlock the locking mechanism that holds the upper orange ribbon in place.

    • Once unlocked, slide out the ribbon.

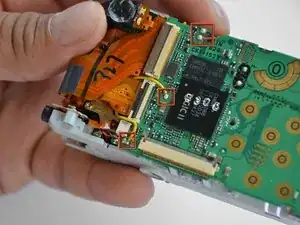

  27. hPVwfyAecp6Eb5ij
    • All that is required is to unsolder the few remaining wires. Then, the motherboard will be ready to be replaced!

Abschluss

To reassemble your device, follow these instructions in reverse order.
