Canon PowerShot A590 IS Back Cover Replacement

Geschrieben von: Zach
  • Kommentare: 4
Canon PowerShot A590 IS Back Cover Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

5 Minuten

Einleitung

You will remove screws from the bottom and sides of the camera in order to remove the cameras back cover.

  1. UZM4sDZkq2tNmcvX
    UZM4sDZkq2tNmcvX
    qSEmM5m6TRAoXDVn

    • The battery hatch is on the bottom of the camera.

    • CAUTION: Locate the switch to open the hatch and push gently toward the front of the camera. Too much force can break the hatch.

    • While the switch is pushed forward, pull the cover away from the camera.

    Can the hatch be replaced. The piece that holds the hatch is broken.

    alisonbforman46 -

    I had this issue for some time and never realized that lithium battery was so easily accessible. Fixed my problem.

    Spud Head -

  2. QAdD2UkSfu4XcxkW

    • This camera requires AA batteries.

    • To remove batteries, simply allow them to fall out of the camera.

    • Use a fingernail to lift the clock battery out of the camera.

  3. k1v5bhjjRmMvvjiv

    • When replacing the AA batteries, verify they are oriented correctly by following the (+) and (-) signs on the camera.

  4. fsJphYv6iYHcNVeS

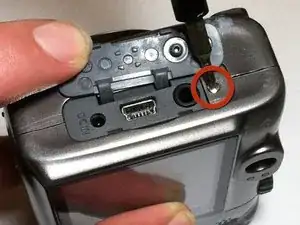

    • Remove the screw located under the rubber flap on the left side of the camera using a Phillips #00 screwdriver.

  5. blUOIEc6uful2RCO

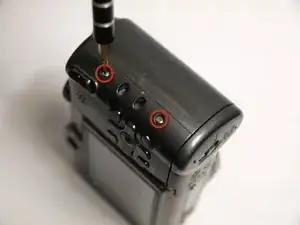

    • Remove the two screws located on the other side of the camera using a Phillips #00 screwdriver.

  6. bGlVsFTS4cploGEW

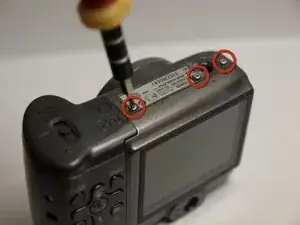

    • Remove the three screws located at the bottom of the camera using a Phillips #00 screwdriver.

  7. o43oTZSTIe6WOQ4X

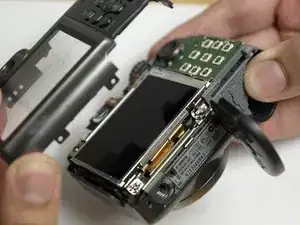

    • Open the battery cover.

    • Using the iFixit opening tool, push up gently around all edges of the camera.

    Ik kan de achterkant er niet afkrijgen.

    De onderzijde gaat wel wat open, maar wat ik ook probeer de bovenzijde blijft op de een of andere manier haken en geeft geen krimp.

    Hopelijk hooft iemand hier iets op verzonnen om hem wel open te kunnen krijgen.

    mvrgr WH

    W.H. -

Abschluss

To reassemble your device, follow these instructions in reverse order.
