Canon PowerShot A590 IS Clock Battery Replacement

Geschrieben von: Matt Wolfe
  • Kommentare: 11
Canon PowerShot A590 IS Clock Battery Replacement

Schwierigkeitsgrad

Very easy

Schritte

7

Zeitaufwand

5 Minuten

Einleitung

Locate and remove the clock battery from the camera.

  1. UZM4sDZkq2tNmcvX
    UZM4sDZkq2tNmcvX
    qSEmM5m6TRAoXDVn

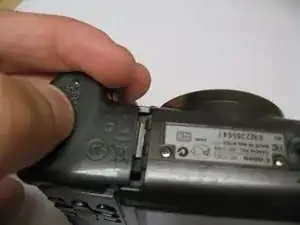

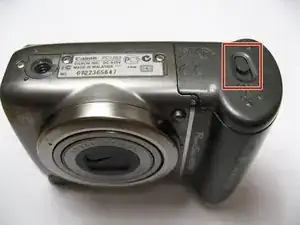

    • The battery hatch is on the bottom of the camera.

    • CAUTION: Locate the switch to open the hatch and push gently toward the front of the camera. Too much force can break the hatch.

    • While the switch is pushed forward, pull the cover away from the camera.

    Can the hatch be replaced. The piece that holds the hatch is broken.

    alisonbforman46 -

    I had this issue for some time and never realized that lithium battery was so easily accessible. Fixed my problem.

    Spud Head -

  2. QAdD2UkSfu4XcxkW

    • This camera requires AA batteries.

    • To remove batteries, simply allow them to fall out of the camera.

    • Use a fingernail to lift the clock battery out of the camera.

  3. k1v5bhjjRmMvvjiv

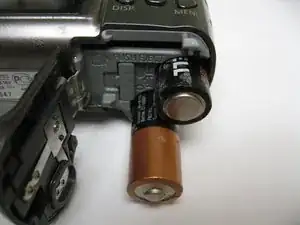

    • When replacing the AA batteries, verify they are oriented correctly by following the (+) and (-) signs on the camera.

  4. HdLHXNCrC26ga5bo

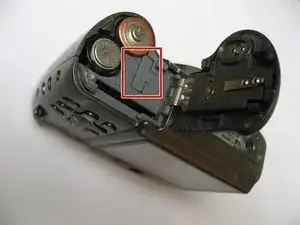

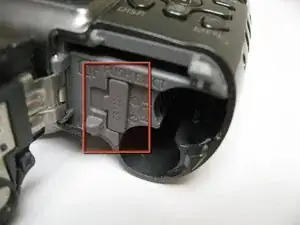

    • To access the clock battery, find the clock battery cover, shown here in the red square.

  5. hyHeOPlw4lYoIrOg

    • When accessing the clock battery, use a fingernail or similar small instrument to gently pull the tab out.

  6. WddRosIqPpUpyG2y

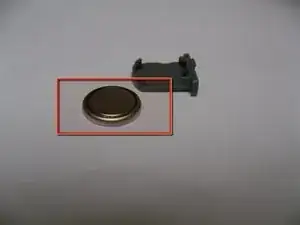

    • Now that you have the tab and battery removed, use a fingernail or other small tool to remove the battery from the tab.

    • This battery is a CR1220 type watch battery.

  7. 2L6sFrUouUEPN6EX

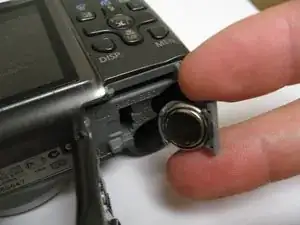

    • When replacing the clock battery, be sure to have the battery oriented properly, as shown in the picture.

    • Remember, the tab goes in with the exposed side of the battery facing towards the lens.

Abschluss

To reassemble your device, follow these instructions in reverse order.
