Canon PowerShot A630 LCD Screen Replacement

Geschrieben von: Kady Rose
  • Kommentare: 1
Canon PowerShot A630 LCD Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 - 30 Minuten

Einleitung

  1. gho4QjYg3cdAPmhh

    • Open the LCD screen of the camera

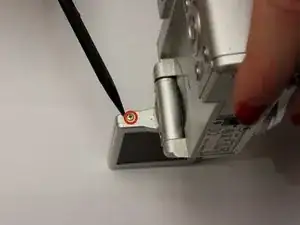

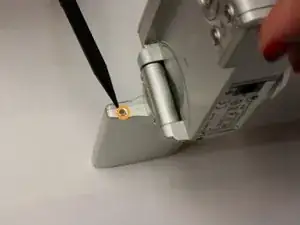

  2. BJ3QvcFHvPMEkBEY
    BJ3QvcFHvPMEkBEY
    DWWMromJryHHGjHs

    • Rotate the screen so that it is perpendicular to the body of the camera

    • Remove the .2mm screw using a Phillips #00 screwdriver

    • Rotate screen 180 degrees and remove second .2mm screw

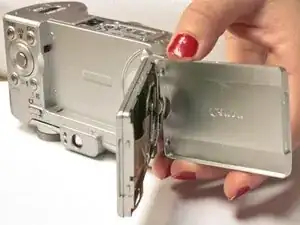

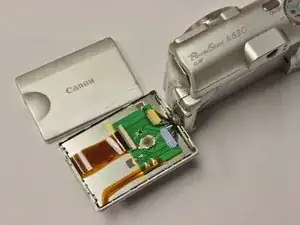

  3. CBSegehOEWypTLpu
    CBSegehOEWypTLpu
    DOpbJAnYxIThmUWo

    • Gently remove the back panel of the LCD screen

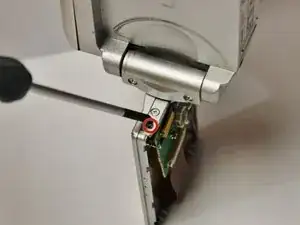

  4. aVUgMsFfGaBRRDck

    • Once the back panel is removed another .2mm screw will be revealed, remove this screw to remove the front panel of the LCD screen

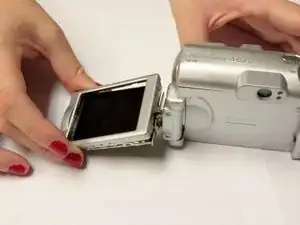

  5. RAihRiftUUpBjepO

    • Gently remove front panel of the LCD screen

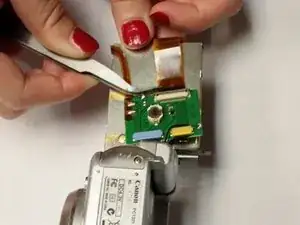

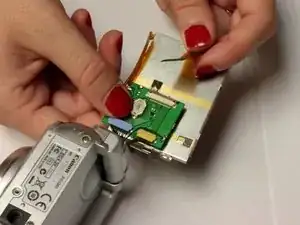

  6. aNfFmd3mHfbmHNk2
    aNfFmd3mHfbmHNk2
    2iwTWsD1garvmQgu

    • Locate the ribbon (orange) and using tweezers gently pull back the retaining clip and pull the ribbon out

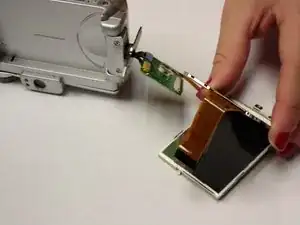

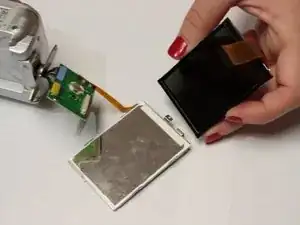

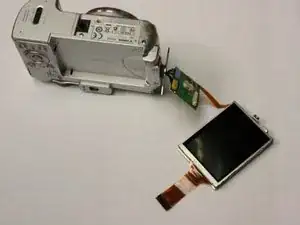

  7. RXfGrhVescNMMYpE
    RXfGrhVescNMMYpE
    McrXUCtgj3YYbwIM
    NGJxUgym5DLywUC4

    • Use a spudger to gently remove the LCD screen from the metal backing plate

Abschluss

To reassemble your device, follow these instructions in reverse order.
