Canon PowerShot A75 Casing Replacement

Geschrieben von: Andrew Elliott
  • Kommentare: 1
Canon PowerShot A75 Casing Replacement

Schwierigkeitsgrad

Easy

Schritte

14

Zeitaufwand

2 - 5 Minuten

Einleitung

Use this guide to replace the Canon Powershot A75's casing.

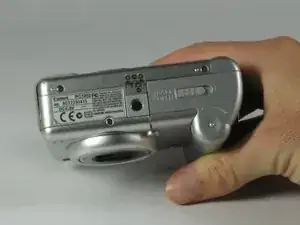

  1. TuwQuCgHNgNdjvt3

    • Turn the camera over and locate the "BATT OPEN" sliding switch.

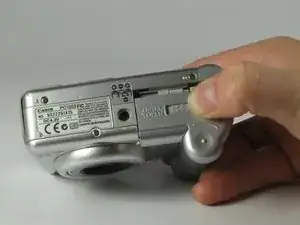

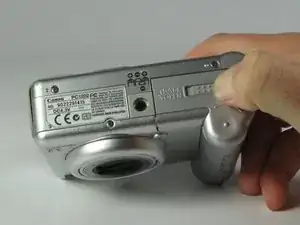

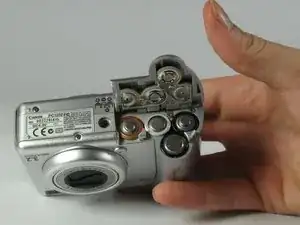

  2. duIF4eWQCjCkYatW
    duIF4eWQCjCkYatW
    bLRxIvvAGKJxHVYH
    kD2lNcDXJJHqXfjK

    • Slide the switch to the right.

    • The battery cover should slide down and spring open.

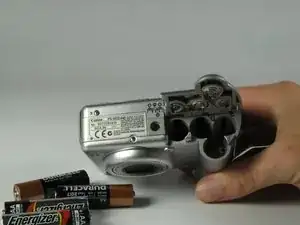

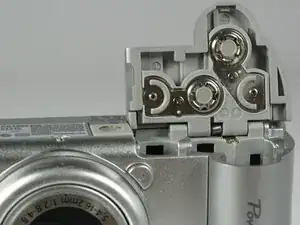

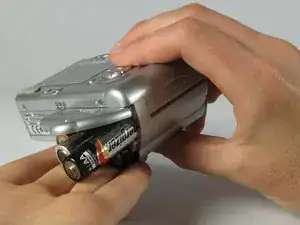

  3. LovYTlKcJPLlNkIm
    LovYTlKcJPLlNkIm
    DPmurSWpIZ6VriwZ
    RfNGGVMw3XVWVQgV

    • Remove the 4 AA batteries.

    • Watch for the orientation of the batteries as they slide out.

    • The battery orientation is shown under the battery flap itself and on a sticker next to the battery flap.

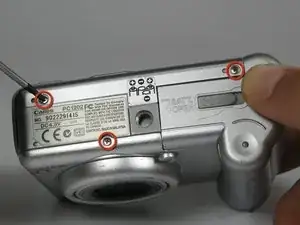

  4. tyRL1VdW6xpI2OqE

    • Remove the three 2.5mm screws on the bottom of the camera.

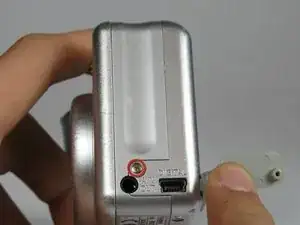

  5. Aa2TUmfa5BliHdqw

    • Remove the 3.8mm screw underneath the flap that covers the A/V port.

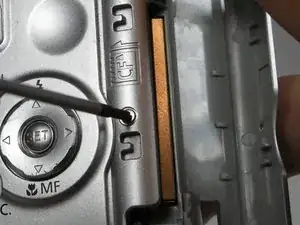

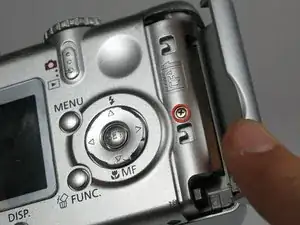

  6. KxSZAFD5UTKmQwLA
    KxSZAFD5UTKmQwLA
    6TiiKwLHnwpgscgX

    • Remove the 2.4mm screw located underneath the cover of the memory card slot.

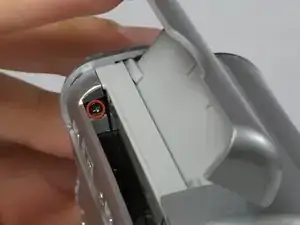

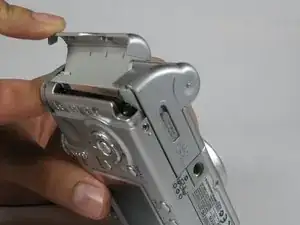

  7. qwFy1EGKfOtNOOBD
    qwFy1EGKfOtNOOBD
    wUOCmLAonkZDOkHt

    • Open the memory card slot by sliding it laterally until you hear a click.

    • Remove the 5.9mm screw in the upper corner of the memory card slot.

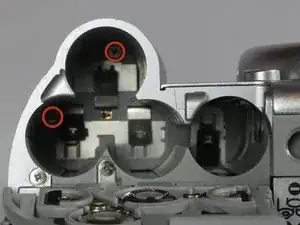

  8. HqwKXCaRypyDny4E

    • Remove the two 4.1mm screws at the bottom of the battery flap.

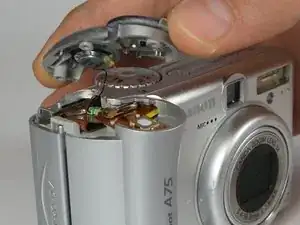

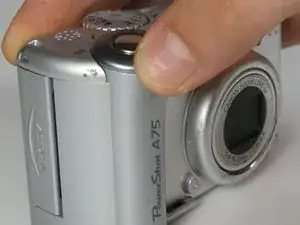

  9. OqRRyrgyjoRLPqZQ
    OqRRyrgyjoRLPqZQ
    JfSmRtTFUIfEDtGJ

    • Lift the shutter button and speaker part from the top of the camera.

    • DO NOT pull the part too hard because there is a plug connecting the speaker to the camera.

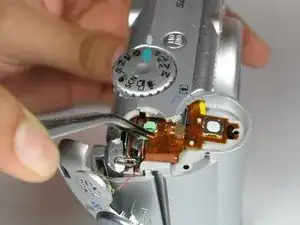

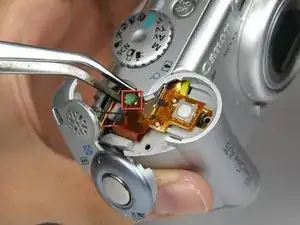

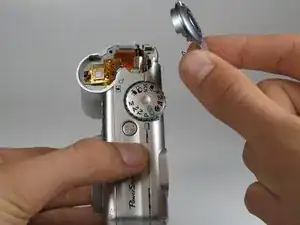

  10. EHSDqfBZAgI5v3jR
    EHSDqfBZAgI5v3jR
    XPQNFAoPxF2sJtpa
    JD6nRmx61vWEmoUw

    • Using a pair of tweezers, grab the plug that connects the speaker to the camera and gently pull it out.

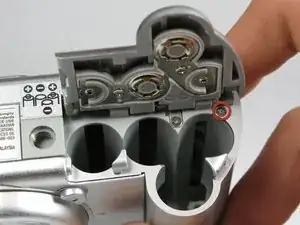

  11. 5IkKJwPK1RdHuVMO

    • Remove the rightmost 4.2mm screw underneath the battery cover, not the center screw.

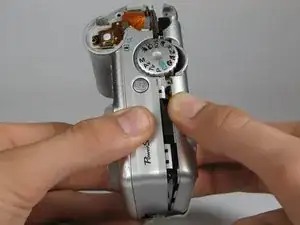

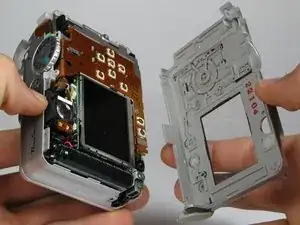

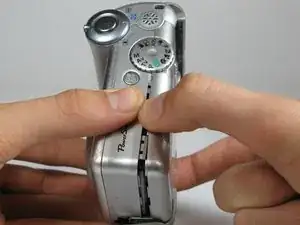

  12. R3UJ1ZSblBhYkFPB
    R3UJ1ZSblBhYkFPB
    anplZX5EETSngbc2
    ujATG4VnLQsulwoq

    • Separate the back casing and front casing of the camera using your hands.

    • Pulling the two halves apart can be difficult, especially at the top. Use a moderate amount of force.

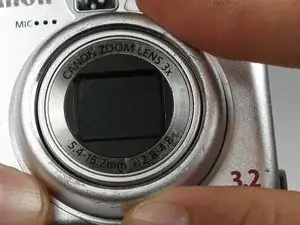

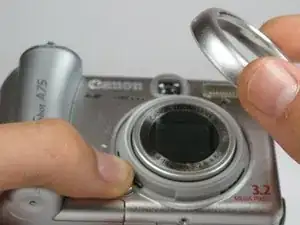

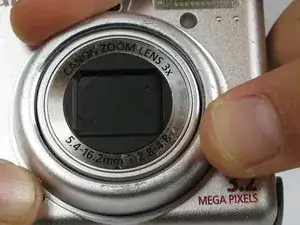

  13. oKPRbEZ6DhaJfSD3
    oKPRbEZ6DhaJfSD3
    VVPnSiJXyCUWMNKZ
    eUCmPeKDgVTRMKYH

    • On the front of the camera, press the button on the lower left of the lens.

    • Twist the outer lens casing counter-clockwise and slide it out.

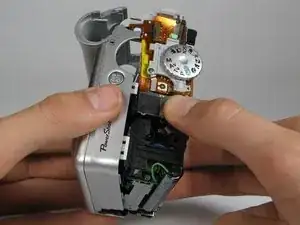

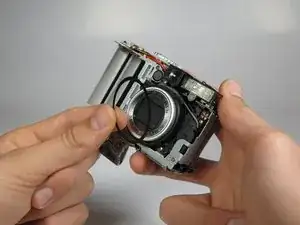

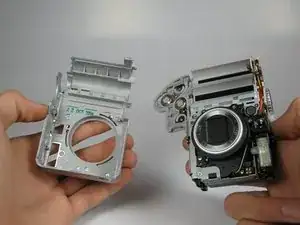

  14. xTmsUEKEiI1MsUUt
    xTmsUEKEiI1MsUUt
    NWTltvlFBwLC1QnA
    cD6STmpXXKVJOhdG

    • Take off the front casing.

    • There is a black rubber washer around the lens that comes out after you take the casing off. Make sure to replace it when putting the camera back together.

Abschluss

To reassemble your device, follow these instructions in reverse order.
