Einleitung
The Canon PowerShot D20 is waterproof and shockproof, so it won't suffer from a cracked LCD screen. However, if the camera is improperly sealed, water damage may prevent the screen from working. In this case, make sure the camera still works by taking a few pictures and uploading them to your computer, then replace the screen.
Werkzeuge
Ersatzteile
-
-

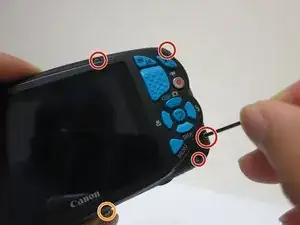

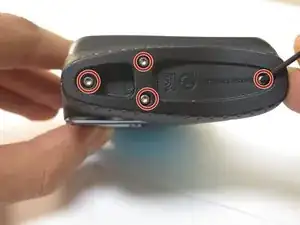

Using the 1.5mm hex screwdriver, remove the four screws from the rear of the case.
-

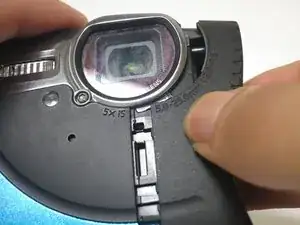

Remove the screw from the bottom of the case.
-
-
-

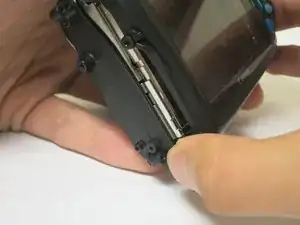

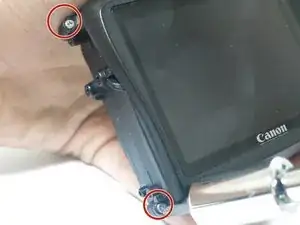

Using the Philips #00 screwdriver, remove the two screws on the left side of the case.
-

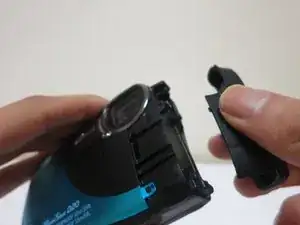

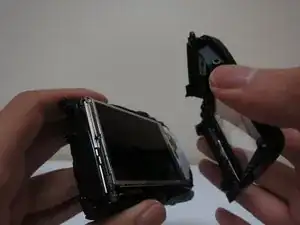

Remove the rear of the case.
-
-
-

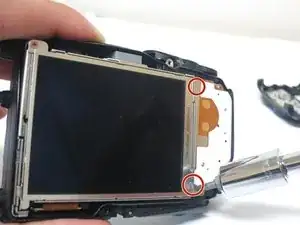

Using the Phillips #00 screwdriver, remove the two screws holding the LCD screen in place.
-

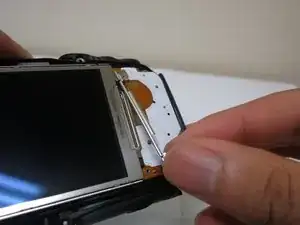

Remove the small metal bar holding in the LCD screen.
-
-
-

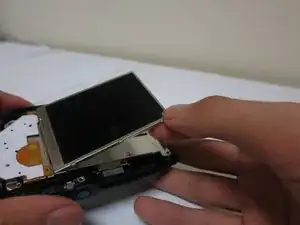

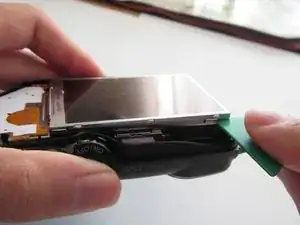

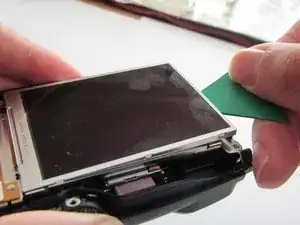

Slide the spudger under the LCD screen and pry it off. Since the screen is glued down with adhesive, some effort may be required.
-
-
-

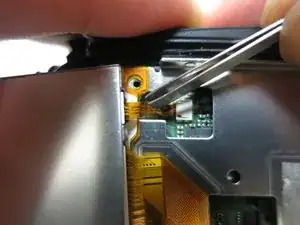

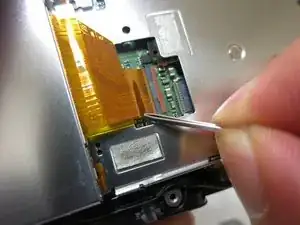

Gently disconnect the two ribbon wires from the camera. Use tweezers or a spudger to remove them.
-
To remove these cables, pull them straight out of their sockets.
-
When reassembling, be sure you plug these cables into the sockets fully. You will hear a faint click when they are fully in.
-
-
-

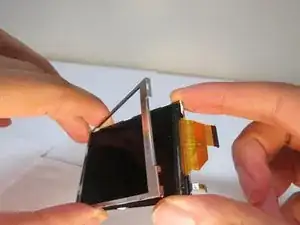

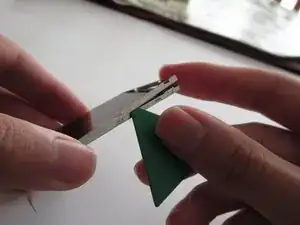

Use a guitar pick or spudger to pry the front and back of the metal case off the LCD screen.
-
To reassemble your device, follow these instructions in reverse order.
