Canon PowerShot ELPH330 HS Camera Repair LCD Screen Replacement

Geschrieben von: Michelle Ngo
  • Kommentare: 0
Canon PowerShot ELPH330 HS Camera Repair LCD Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

8 Minuten

Einleitung

If you’re experiencing problems with your screen, consider reading this guide. This guide will show you how to replace the LCD screen in your Canon PowerShot ELPH 330 HS.

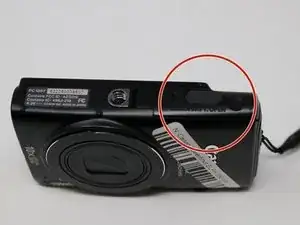

  1. XXRfWLIxEUs2rteb
    XXRfWLIxEUs2rteb

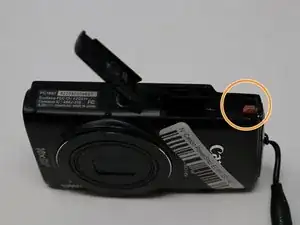

    Jy5fX4Rs1YxoPPDg

    • Turn off your camera.

    • Remove the battery.

    • Slide the battery door open with the rubber pad on the bottom right side of the camera.

    • Remove the battery by pushing down on the release button.

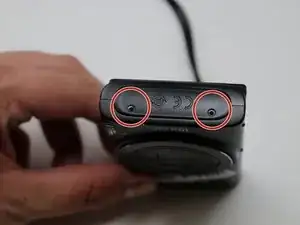

  2. JhIr6jKpcw6uHFQb

    • Remove the two screws on the left side with a Phillips #00 screwdriver.

  3. FvONI2V5CUGwY1Qh

    • Remove the two screws on the bottom of the camera with a Phillips #00 screwdriver.

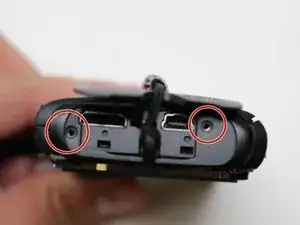

  4. 5HsI1M2hnplxycvX

    • Remove the two screws on the right side with a Phillips #00 screwdriver.

  5. VAxgkHg1XYiCdnIq

    • Using your fingers, carefully pry the case apart at the seam.

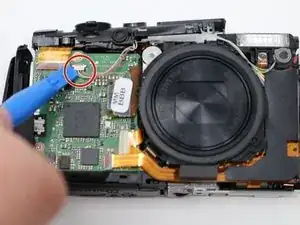

  6. xRsmXGPPmxLiVmtu
    xRsmXGPPmxLiVmtu

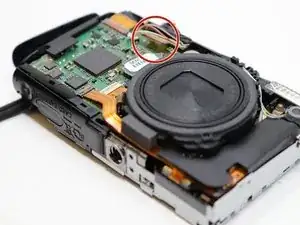

    wHahS5IZDwQLQR1v

    • Flip the camera over so that the lens is facing you.

    • Disconnect the highlighted port from the motherboard.

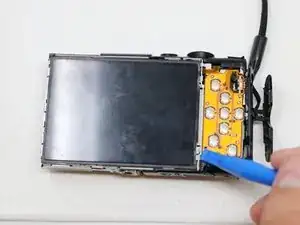

  7. nxQ4SvcY3aghgMbv
    nxQ4SvcY3aghgMbv
    e11YlTOVRlRBNnyA

    • Remove the bracket around the LCD screen.

  8. vwZYAqE2LwViUBeV

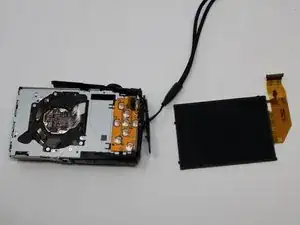

    • Using the spudger, carefully pry the top to remove the LCD screen.

Abschluss

To reassemble your device, follow these instructions in reverse order.
