If you’re experiencing problems with your camera turning on or the camera taking photos, consider replacing the power/shutter button panel in your camera. This guide will show you how to replace your damaged power button.
Ersatzteile
-
-

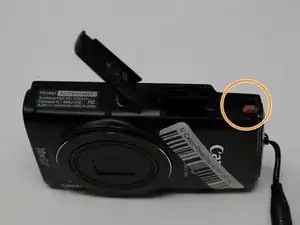

On the top-center of your device, turn off the camera by pressing the power button.
-

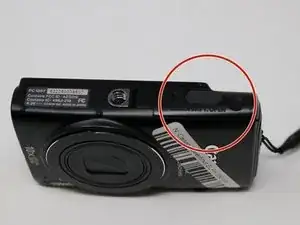

Put your finger on the battery door and slide the battery door to the right to open it.
-
Push the release button downward and it will release the battery.
-
-
-

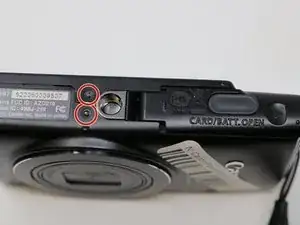

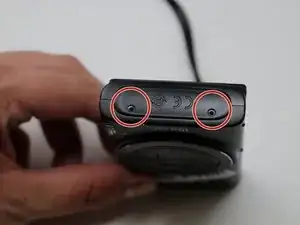

Remove the two 4.0mm screws on the bottom of the camera located near the battery door using a Phillips #00 screwdriver.
-
-
-

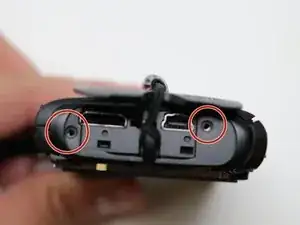

At the bottom of the camera next to the battery door, remove two more screws using the Phillips #00 screwdriver.
-
-
-

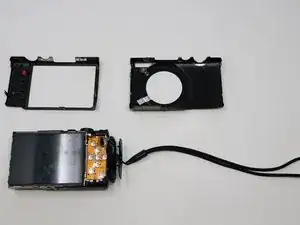

To remove the back portion of the camera case, use your fingers to carefully pry the case apart at the seam.
-
-
-

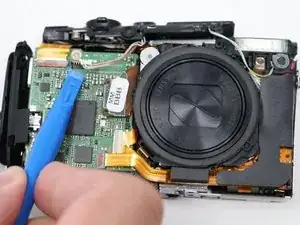

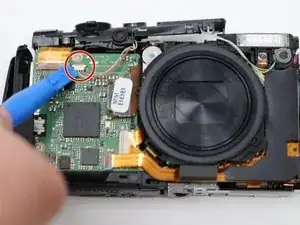

On the motherboard there should be a white port. Using the spudger, disconnect it from the motherboard.
-
-
-

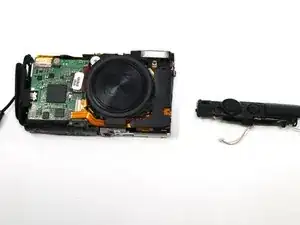

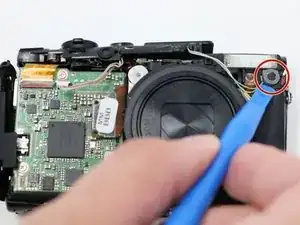

Follow the green and white wire. There is a gray piece of rubber holding the button into place. Remove it with the spudger.
-
To reassemble your device, follow these instructions in reverse order.
