Einleitung

This guide shows how to remove the battery from your camera, which is necessary if the battery is faulty or needs to be charged. This replacement is very easy, involves no tools, and requires no disassembly.

  1. lJFEdFWZAqSRAsrB
    lJFEdFWZAqSRAsrB
    hvqv1CeHoJquHoI4
    2AEBE5EocERgkTiD

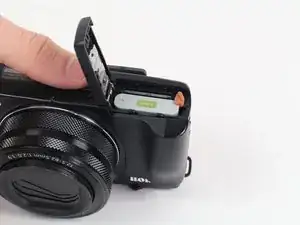

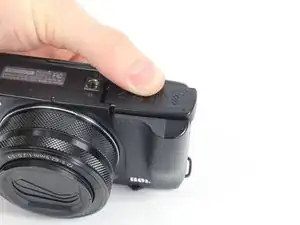

    • Locate the battery housing cover on the bottom of your camera.

    • Place a finger on the textured portion of the battery housing cover.

    • Slide the cover in the direction that the arrow is pointing.

  2. iLJMTtlrJlhFjjGt
    iLJMTtlrJlhFjjGt
    G4WgwXhJ3dxXbJDm

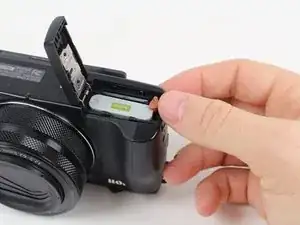

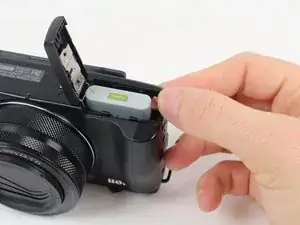

    • Use your finger to pivot the orange tab away from the battery.

  3. emveWPK5YIDleiQR

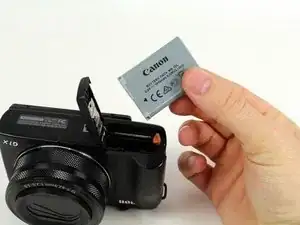

    • Pull the battery out of the housing with your fingers.

Abschluss

To secure the battery back into its housing, follow these instructions in reverse order.
