Canon PowerShot G3 Speaker Replacement

Geschrieben von: Ryan Riales
  • Kommentare: 0
Canon PowerShot G3 Speaker Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

30 Minuten

Einleitung

Replacing the speaker in the Canon PowerShot G3 is not a difficult task, but can take some time to disassemble and reassemble the camera.

Note: There are many screws to be removed before you can reach the speaker. It is advised to not continue until you have a magnetic pad to place the screws on.

  1. aNCTXFLGAUHoBQE3

    • Start to remove the screws around the camera: from the front, back, sides, and bottom.

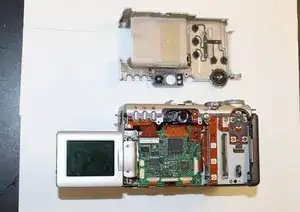

  2. IxNXLfNB6uaKs1Iw

    • Once the screws are removed, remove the back panel. The panel should be able to be removed by hand.

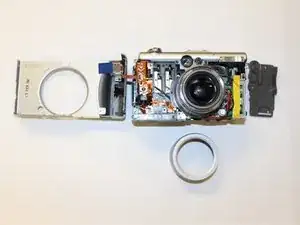

  3. qnw4MI2S5nCrLtTX

    • Next remove the front and right side panels (the left is attached to the front panel).

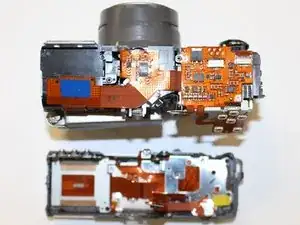

  4. JWfBeGk6pA2fGvTU

    • Finally, remove the top panel as shown.

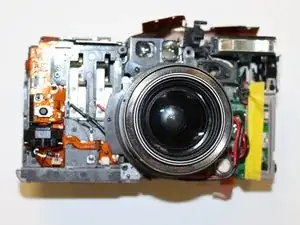

  5. xW6SvTKItywMGNnr
    xW6SvTKItywMGNnr
    TDfIqHSjNqTYydJC

    • The front of the camera should now resemble the picture shown. (Image 1)

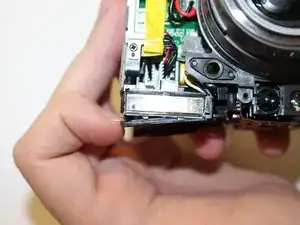

    • Remove the capacitor/speaker housing using your finger nail or other thin object to lift it up around the edges. (Image 2)

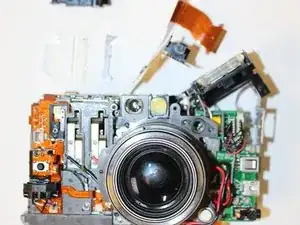

  6. muPNxZiVQMwqHB1n

    • To remove the circuit ribbon (brown strip) pull it out of the plastic piece it is connected to.

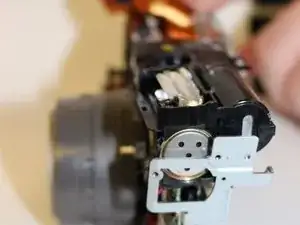

  7. vBBYnwmTVwCJsf31

    • You should now be able to see how the capacitor/speaker housing slides out of the frame.

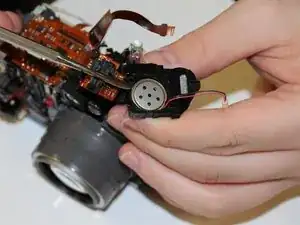

  8. WskJxviObLoUEQBv
    WskJxviObLoUEQBv
    5Hvwc22qNiQ2s4Yg

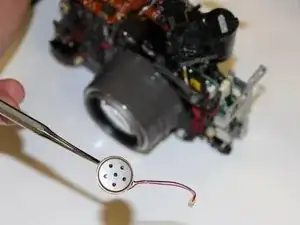

    • Disconnect the speaker wires from the camera, then use a small flat head screw driver to lift the speaker out of its housing.

    • Order a new speaker from the manufacturer or take it to a local electronics store to see if they have one.

Abschluss

To reassemble your device, follow these instructions in reverse order.
