Canon PowerShot G7X Flash Replacement

Geschrieben von: Kyle Pellham
  • Kommentare: 2
Canon PowerShot G7X Flash Replacement

Schwierigkeitsgrad

Moderate

Schritte

15

Zeitaufwand

15 - 20 Minuten

Einleitung

This guide will help you replace the flash for your camera. Caution should be used because a capacitor is attached to the flash which may cause harm if handled carelessly.

  1. Ccq5sO4fdVBqCdH3

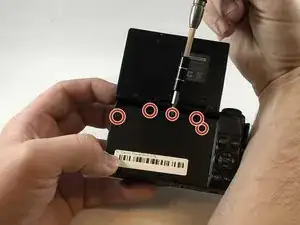

    • Remove the five 2mm Phillips #000 screws that are under the screen of the camera.

    Only 3 screws

    Dufour -

  2. jEKXOHOKAklPvpnW

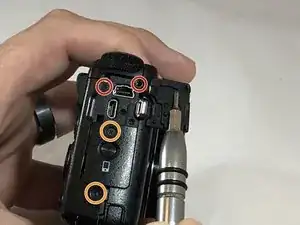

    • Remove the two 3mm Phillips #000 screws under the AV-out digital flap.

    • Remove the two 3 mm Phillips #000 screws from the side of the camera.

  3. 1iwfloUmeWpaeKGi

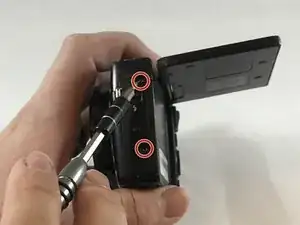

    • Remove the two 3 mm Phillips #000 screws on the side of camera with the flash toggle.

  4. a4hAlYYjXZYEjNXG

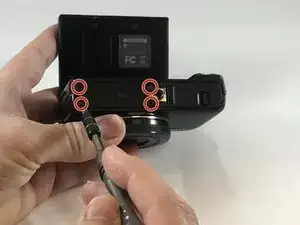

    • Remove the four 4 mm Phillips #000 screws from the plate on the bottom of the camera.

  5. iI1NGuIDwmfEtdFV

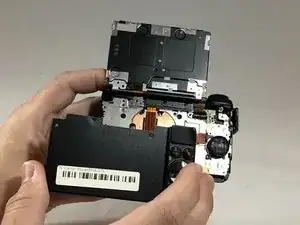

    • Remove the back plate.

  6. 1tkoeGBMOu111ZfP

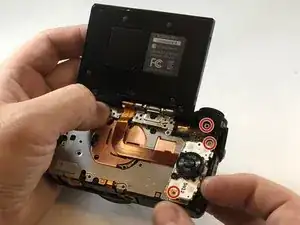

    • Remove the three 3 mm Phillips #000 screws around the dial.

  7. 4k2GKfLKH2La2YIL
    4k2GKfLKH2La2YIL
    pNPyDlW2oKCBN5KW

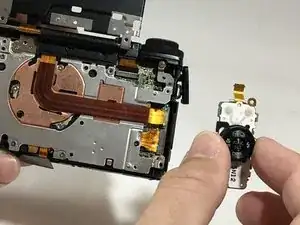

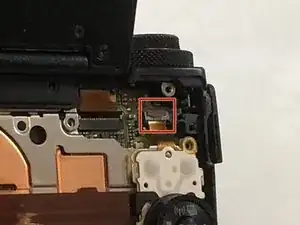

    • Using the nylon spudger, gently lift the ZIF tab.

    • Disconnect the ribbon cable that connects the dial to the motherboard.

    • Remove the dial from the device.

  8. UdWecZ1BXCNpMTwu
    UdWecZ1BXCNpMTwu
    VILGfdJJUXBWbeNi

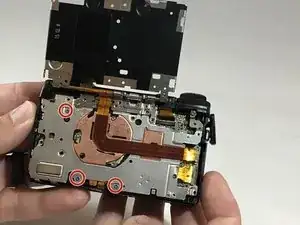

    • Remove the three, blue 5 mm Phillips screws from the back plate.

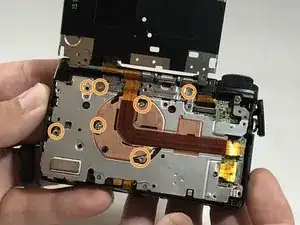

    • Remove seven 2 mm Phillips #000 screws.

  9. hSaSbw2OD6rOeJBq
    hSaSbw2OD6rOeJBq
    qpbjP3TRZFLybiNx

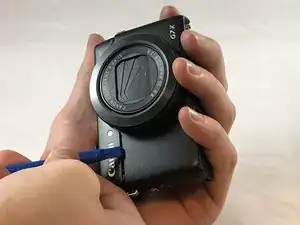

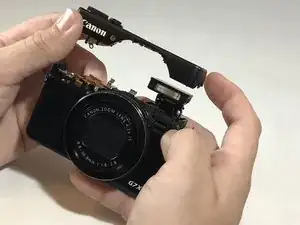

    • While using the plastic opening tool, gently pry the top plate off the camera.

  10. kHT3tQ35XBd6w56X
    kHT3tQ35XBd6w56X
    jxBsMIMpcZVeMHyR

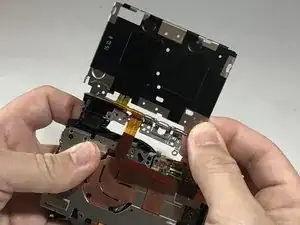

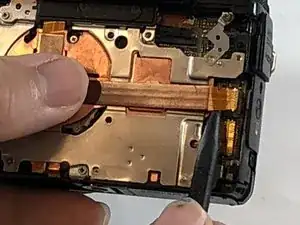

    • Using the black nylon spudger, gently lift the ribbon cable connected to the LCD screen housing until it comes out then remove the housing.

  11. MC1UVmeYBEYOfKLC
    MC1UVmeYBEYOfKLC
    NID1QGAJX2VOuIQB

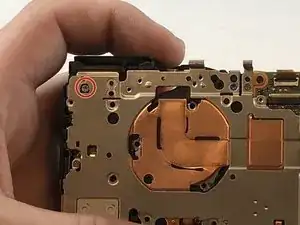

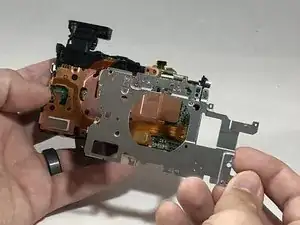

    • Remove the 2 mm Phillips #000 screw underneath the top plate.

    • Remove silver plate.

  12. VGNjiWZEk2nkb1gV

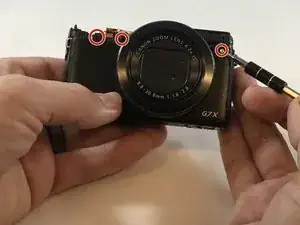

    • Take the Phillips #000 and remove the three 5 mm screws from the front plate.

  13. AlLZtGdfFHvKKwN2
    AlLZtGdfFHvKKwN2
    CPIfkcE2fohLlIkJ

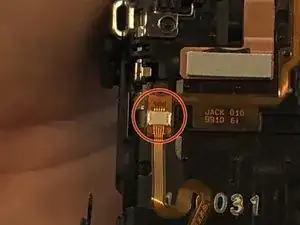

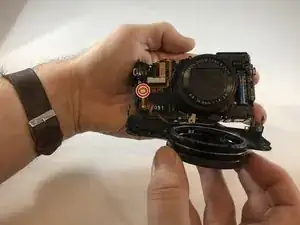

    • Using the spudger, gently lift the ribbon cable from underneath the front plate.

    • Remove the front plate.

  14. Zebxfv21jwREj46b
    Zebxfv21jwREj46b
    e2RZXRncMhXLuMHq

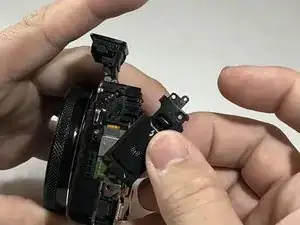

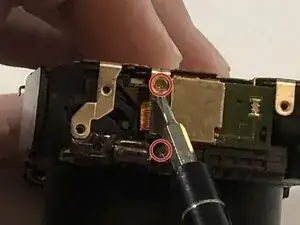

    • Remove flash toggle plate.

    • Remove the 2mm Phillips #000 screws under the flash toggle.

  15. bNkPx6b4XWIMsr65
    bNkPx6b4XWIMsr65
    Q5RACI3JD4dEdBRO

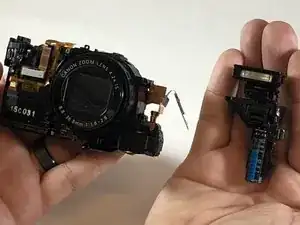

    • Flash contains charged capacitor. Shock hazard.

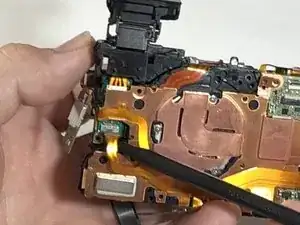

    • Using the black nylon spudger, gently lift the ribbon cable that connects the flash to motherboard and remove the flash from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
