Canon PowerShot G7X Screen Replacement

Geschrieben von: Moriah Hartman
  • Kommentare: 1
Canon PowerShot G7X Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

7 - 10 Minuten

Einleitung

The LCD screen of the Camera is important to see what exactly the pictures you took look like. The purpose of this replacement guide is to help you remove the camera's LCD screen.

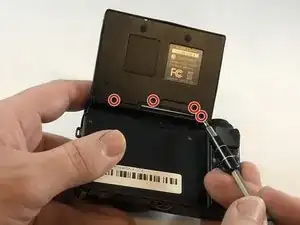

  1. ITExEFGvc2VjN1xY

    • Remove the four 2mm Phillips screws from the back of the screen.

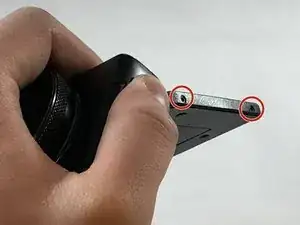

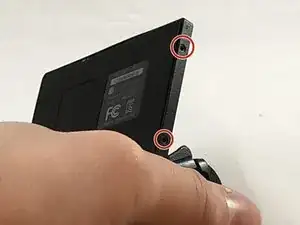

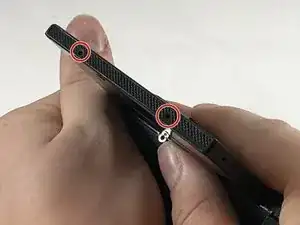

  2. uLSkjYeZIKAoOtyR
    uLSkjYeZIKAoOtyR
    DgjtlQaL4KGriF1t
    YdsVIhKpTc3LjONW

    • Remove the six 2mm Phillips #000 around the edge of the screen.

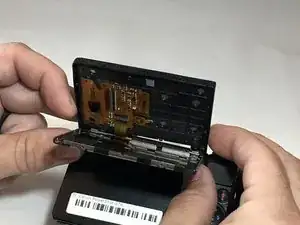

  3. o23hftKWgXWJUgsl
    o23hftKWgXWJUgsl
    EKvdJLkPUAfmUAqU
    IblPATyBKoiyFNyL

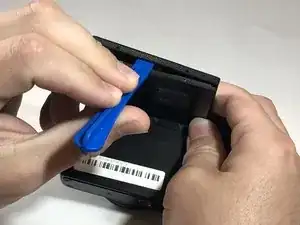

    • Using the plastic opening tool, pry back the backplate from the front of the screen.

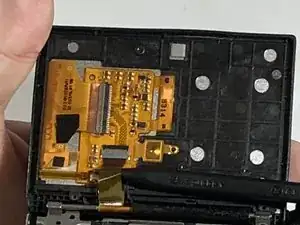

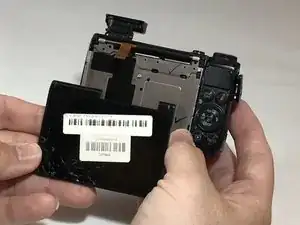

  4. BGXjWA6Hh3jJHHXk
    BGXjWA6Hh3jJHHXk
    SyMMPJWnQXQRJlZs

    • Using the black nylon spudger, gently remove the ribbon cable.

    • Remove the LCD screen.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Moriah Hartman

Mitglied seit: 09/04/18

177 Reputation

Ein Kommentar

This is good and was a big help replacing my cracked G7 X display, but a few additional things worth noting

The ribbon connectors are ZIF. Be sure to flip up the little flaps to release them.

To replace the LCD panel, two additional steps are needed:

Remove the PCB. It’s held on with a strip of adhesive, and can be removed by slowly, gently prying it up with a plastic spudger from the exposed edges.

The panel itself is held into the frame by strips of tar like adhesive around the edges. I got it out with a combination of prying between the display and the plastic back of the frame though the opening left by the PCB, a suction cup on the front, and working around the edges. The glass is very delicate, it’s easy to crack prying around the edges or bending the frame . The adhesive can be reused to an extent, but the fit may not be as nice as factory.

reyalp -
