Canon PowerShot S100 Outer Case Replacement

Geschrieben von: Ricky
  • Kommentare: 1
Canon PowerShot S100 Outer Case Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

10 Minuten

Einleitung

Removing the body cover is necessary to access other parts inside the camera.

  1. gijZvnmUXApjTuFW
    gijZvnmUXApjTuFW
    DmwinWIjgYGdJAuO
    aoC2UwTWjiEKlGpR

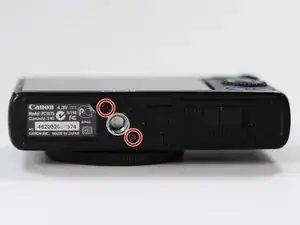

    • Remove the 2 screws (3.2mm, Phillips #00) found on the bottom side of the camera.

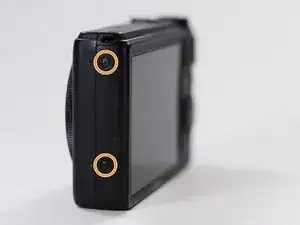

    • Remove the 2 screws (3.2mm, Phillips #00) found on the side of the camera.

    • Remove the 2 screws (3.2mm, Phillips #00) found on the side of the camera where the terminals are.

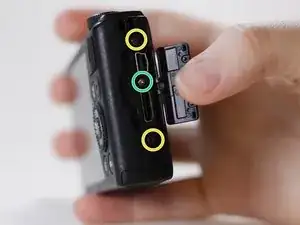

    • Open the flap revealing the cable inputs and remove the final screw (3.8mm, Phillips #00) found inside.

  2. jgr3QvUeGTwSR614

    • Turn the camera so that the LCD screen is facing you.

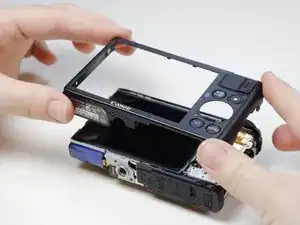

    • Remove the back panel by pulling it off of the camera.

  3. oAeIvIoUf3AFROWb
    oAeIvIoUf3AFROWb
    2GFdPvbXGNBDOF1F
    Xh34VWCubOFgkmfV

    • Turn the camera so that the lens is facing you.

    • Do not pull the front panel off without removing the ribbon cable first.

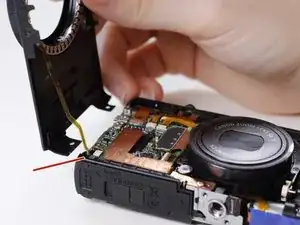

    • Slowly lift the front panel from the camera.

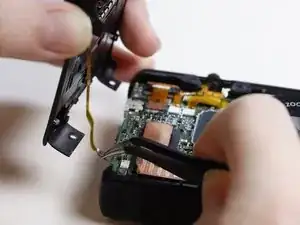

    • The ribbon cable is connecting the front panel to the camera. Using the tweezers, gently pull the ribbon cable out of its socket.

    • A spudger may also be used to remove the ribbon cable.

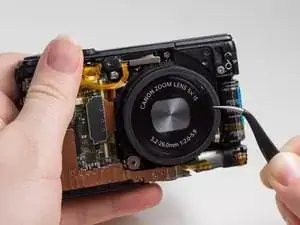

    • Remove the rubber guard that rests on top of the lens.

    there is a small hole in the ribbon which the point of the tweezer can hook into to remove the cable.

    macman2 -

Abschluss

To reassemble your device, follow these instructions in reverse order.
