Canon PowerShot S230 Display Screen Replacement

Geschrieben von: Will Appleton
  • Kommentare: 0
Canon PowerShot S230 Display Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

15 Minuten

Einleitung

Use this guide to replace the screen of the Canon PowerShot S230. The guide focuses mainly on the removal of screws and display screen. Fairly simple.

  1. JJwZaqG5s3HtFpWO

    • Using a Phillips #0 head screwdriver, remove the screws on the outside casing of the camera.

  2. k2MypAxcg5juJxNa
    k2MypAxcg5juJxNa
    WXicw6ULvMwTWUer
    AWPmGDfK2NvPINdP

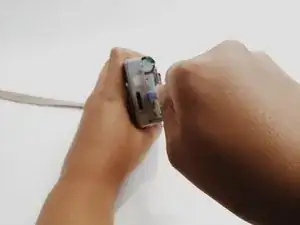

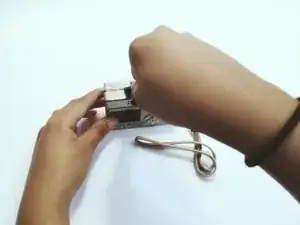

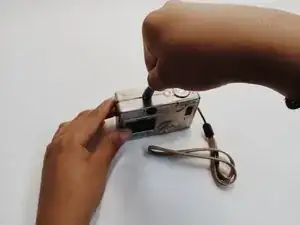

    • Use a pry tool to open the outer casing of the camera and access the internal components.

  3. gPxYTlldwet42p4b
    gPxYTlldwet42p4b
    TXc2lrIschYYbHZU

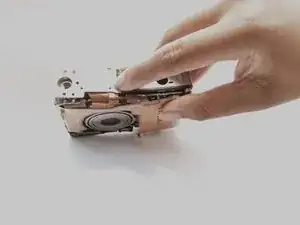

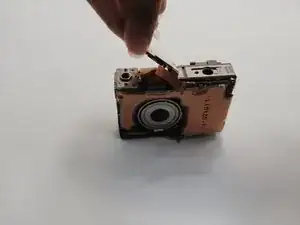

    • Remove the metal shield and screws from the bottom interior of the camera.

  4. UOpFMpPtYfajxACw

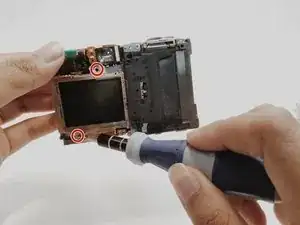

    • Use the Phillips head screwdriver to remove the screws securing the screen.

  5. jtZgLYH2QdrLRPJE

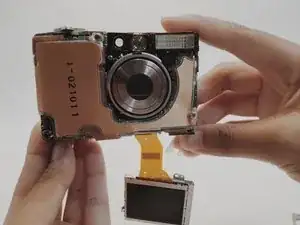

    • Remove the screws on the copper facing from the front part of the camera. Beneath is a connection to the screen. Wiggle this connection to pull it out; it may take some force to do so.

Abschluss

To reassemble your device, follow these instructions in reverse order.
