Canon PowerShot S400 Shutter Button Assembly Replacement

Geschrieben von: Ross Bryan
  • Kommentare: 0
Canon PowerShot S400 Shutter Button Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

15 Minuten

Einleitung

This guide provides instructions on how to replace the shutter button assembly on the Canon PowerShot S400.

  1. Ji4Y2IXLj2QSiE2T
    Ji4Y2IXLj2QSiE2T
    MHlXJ2pASYZNLSOu

    • Unless otherwise stated,a #00 philips screwdriver will be used to remove screws.

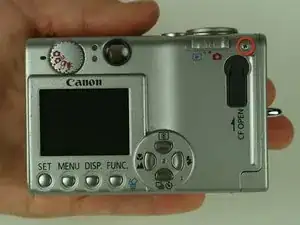

    • Remove the 4.75mm screw located in the top right corner of the backside of the camera.

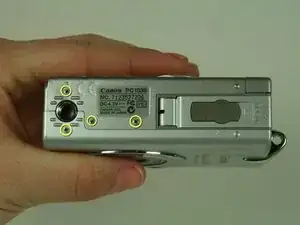

    • Remove the four # screws located on the bottom of the camera.

  2. PGxBGtORXoBjvXUG
    PGxBGtORXoBjvXUG
    mDhCdpBPTWQQQotS
    oLWIy12IJCRVTfbU

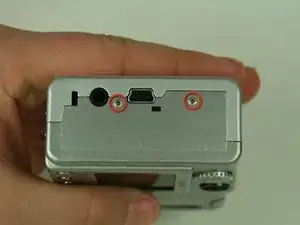

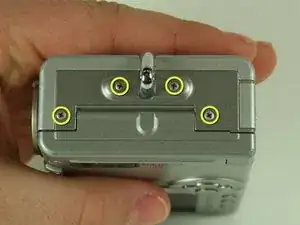

    • Remove the two screws located on the right side of the camera.(the side with the USB adaption plug)

    • Remove the four screws on the left side of the camera.

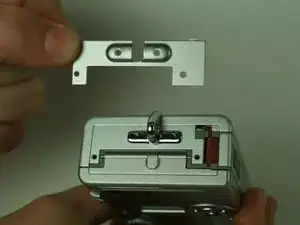

    • This will release a small metal plate. Remove this plate.

  3. YjYIBJckcNGvdbJ1
    YjYIBJckcNGvdbJ1
    lRFUXv4oe12MmFRj
    IvxXKjmRPBAVNZFH

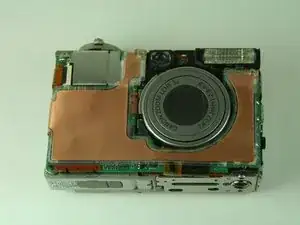

    • There is a small black plastic piece that sits above the lens underneath the camera case. This plastic piece may fall out when you remove the cases; recover the piece and save it.

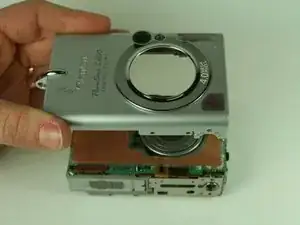

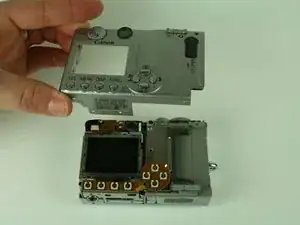

    • Now separate the front and back camera casings.

  4. JZfVEVxLAqKwxBqZ

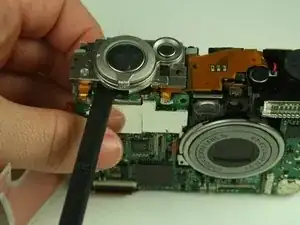

    • Using a spudger, carefully pry the shutter button assembly from the camera.

    • Install the replacement shutter button assembly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
