Canon PowerShot S410 Motherboard Battery Replacement

Geschrieben von: Ryan Bolton
  • Kommentare: 0
Canon PowerShot S410 Motherboard Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

10 Minuten

Einleitung

This guide shows you how to remove the motherboard battery and replace it with a new one.

  1. jIMwnyWSI3SXoSbo
    jIMwnyWSI3SXoSbo
    4SOZrVvgxu5N2MSw

    • Turn the camera with the bottom side facing up.

    • Locate the panel labeled "Batt. Open"

    • Place your finger on the panel and slide it in the direction of the arrow.

    • The slot will swing open revealing the battery pack.

  2. 6YAXDjDmausnZyqf

    • Rotate the camera so that the slot is horizontal.

    • Pull the orange lever and the battery will spring out slightly.

  3. AyWNI1HnCVhIpWyd

    • Grasp battery and fully pull out of slot

    • When placing the new battery back in the slot, the arrow on the battery must align with the arrow on the camera.

  4. cFbwehVWr4Nw2eAQ

    • Start by laying the camera flat with the LCD screen facing up.

    • Remove the 3.8mm screw in the upper right corner.

  5. iSFBeCn6ccglFxMU

    • Position the camera with the bottom facing up.

    • Remove the 4.8mm screw.

    • Remove the two 2.3mm screws.

  6. kPvy1AKNUkMBuCrq
    kPvy1AKNUkMBuCrq
    MVPdPUXEVxHuhHam

    • Position the camera so that the rubber "AV Out Digital" tab is facing upward.

    • Slide this rubber tab out of the way to reveal the bottom screw.

    • Remove the two 3.7mm screws.

  7. y3FmPWfWDFVpxSXW

    • Turn the camera with the back side facing you.

    • Grip the edges of the back plate, and carefully slide it off.

    • If there is any resistance in movement, double check there are no screws left in the chassis.

  8. dpETVHmFtRmkXKtZ
    dpETVHmFtRmkXKtZ
    TBT15nHHgYNNGr3i

    • Orientate the camera as in the picture.

    • Remove the two 2.3mm outer screws.

    • Remove the two 3.8mm screws near the strap bracket.

    • Remove small panel covering mounting bracket.

    • Remove door covering memory card.

  9. ZMFFEAnjfkGTAbuu

    • Rotate the camera so that the bottom side is facing you.

    • Remove the 3.8mm screw below the mounting bracket.

  10. SxirhUieGsC6GMvQ

    • Rotate the camera so that the front is facing you.

    • Grasp sides of front cover and carefully pull the front panel off of the camera.

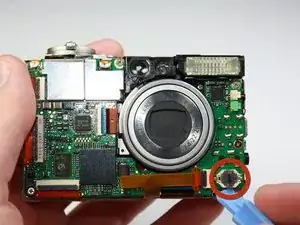

  11. FhepOkBsPDc4WhTi

    • Position the camera so that the motherboard is facing you.

    • Remove the plastic flap covering the motherboard.

    • Place edge of iPod Opening Tool in the small opening between the battery and the motherboard.

    • Pry the battery off of the motherboard using the iPod Opening Tool.

Abschluss

To reassemble your device, follow these instructions in reverse order.
