Canon PowerShot S410 Top Buttons Replacement

Geschrieben von: Ryan Bolton
  • Kommentare: 0
Canon PowerShot S410 Top Buttons Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

10 Minuten

Einleitung

This guide will show you how to remove and replace the button panel on the top of the camera.

  1. jIMwnyWSI3SXoSbo
    jIMwnyWSI3SXoSbo
    4SOZrVvgxu5N2MSw

    • Turn the camera with the bottom side facing up.

    • Locate the panel labeled "Batt. Open"

    • Place your finger on the panel and slide it in the direction of the arrow.

    • The slot will swing open revealing the battery pack.

  2. 6YAXDjDmausnZyqf

    • Rotate the camera so that the slot is horizontal.

    • Pull the orange lever and the battery will spring out slightly.

  3. AyWNI1HnCVhIpWyd

    • Grasp battery and fully pull out of slot

    • When placing the new battery back in the slot, the arrow on the battery must align with the arrow on the camera.

  4. cFbwehVWr4Nw2eAQ

    • Start by laying the camera flat with the LCD screen facing up.

    • Remove the 3.8mm screw in the upper right corner.

  5. iSFBeCn6ccglFxMU

    • Position the camera with the bottom facing up.

    • Remove the 4.8mm screw.

    • Remove the two 2.3mm screws.

  6. kPvy1AKNUkMBuCrq
    kPvy1AKNUkMBuCrq
    MVPdPUXEVxHuhHam

    • Position the camera so that the rubber "AV Out Digital" tab is facing upward.

    • Slide this rubber tab out of the way to reveal the bottom screw.

    • Remove the two 3.7mm screws.

  7. y3FmPWfWDFVpxSXW

    • Turn the camera with the back side facing you.

    • Grip the edges of the back plate, and carefully slide it off.

    • If there is any resistance in movement, double check there are no screws left in the chassis.

  8. dpETVHmFtRmkXKtZ
    dpETVHmFtRmkXKtZ
    TBT15nHHgYNNGr3i

    • Orientate the camera as in the picture.

    • Remove the two 2.3mm outer screws.

    • Remove the two 3.8mm screws near the strap bracket.

    • Remove small panel covering mounting bracket.

    • Remove door covering memory card.

  9. ZMFFEAnjfkGTAbuu

    • Rotate the camera so that the bottom side is facing you.

    • Remove the 3.8mm screw below the mounting bracket.

  10. SxirhUieGsC6GMvQ

    • Rotate the camera so that the front is facing you.

    • Grasp sides of front cover and carefully pull the front panel off of the camera.

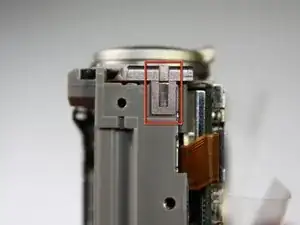

  11. BcpSw3TKpkvABw6V

    • Turn the camera so that the right side is facing you.

    • Using your fingernail, gently pry up the clip holding the button panel in place along the side of the camera.

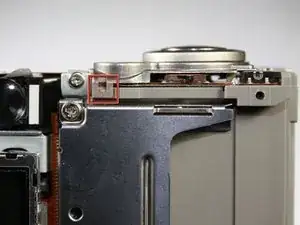

  12. dfnlZ5NpWfPyPQmj

    • Turn the camera so that the back side is facing you.

    • Pry up this small clip with your fingernail.

    • The button panel will dislodge from the top of the camera allowing you to remove and replace it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
