Canon PowerShot S500 Front and Rear Casing Replacement

Schwierigkeitsgrad

Very easy

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

  1. yr4wGKRoEcweCqHn
    yr4wGKRoEcweCqHn
    NFiLm2w2KepDwXCo

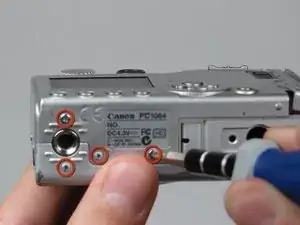

    • Unscrew five Phillips screws using a #0 Phillips screwdriver.

    • One screw is on upper right corner of the back panel.

    • The other four screws are on the bottom of the camera.

  2. 1aONmQcCCtcU2bxm

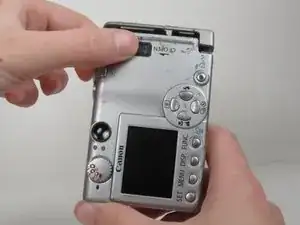

    • Open the memory card cover by moving the slide switch toward the top end of of the camera.

    • Remove the memory card from the slot.

  3. dRI3b2iVwBMgtrc2

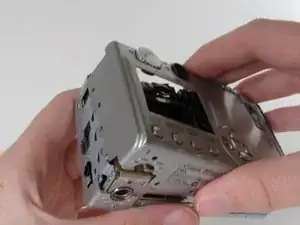

    • Remove the rear cover from the rest of the camera.

    • This may require gentle rocking of the case to free it.

  4. pYp5X1UKWUQlFLqO
    pYp5X1UKWUQlFLqO
    AN2ANMDqUhrrLUgt

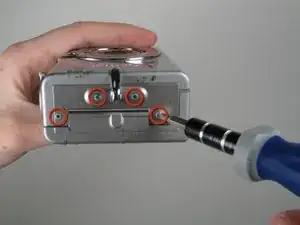

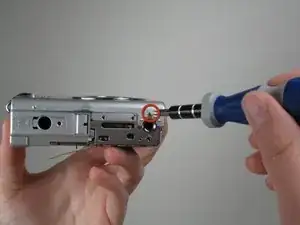

    • Unscrew the four Phillips screws from the side of the casing and one screw from the bottom using a #0 Phillips screwdriver.

  5. qsRQAKt1XvVhEQG2

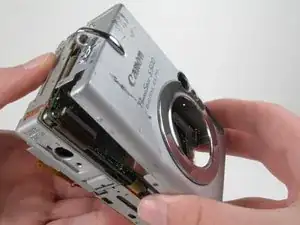

    • Free the front cover from the rest of the camera.

    • The cover may require gentle rocking to remove.
