Canon PowerShot S80 Flash Replacement

Geschrieben von: BrettH
  • Kommentare: 1
Canon PowerShot S80 Flash Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

30 - 45 Minuten

Einleitung

This guide serves to replace a faulty flash mechanism.

  1. 2rJyRmhfkP3USfwv
    2rJyRmhfkP3USfwv
    VcJXaLpN1UpOOXM3

    • Remove the knot on the wrist lanyard.

    • Remove the battery and the memory card.

  2. eaPYJgRYPXn1cYXr
    eaPYJgRYPXn1cYXr
    6Y4CISKDIqlfwm3C

    • Remove all the screws from the sides of the outer casing.

    • Begin removing the screws on the bottom of the outer casing.

    • Remove the rest of the screws from the outer casing.

  3. NKxqiuJ5VcpLsol4
    NKxqiuJ5VcpLsol4
    VhSF2FWl5XybEJmJ
    WOLLFCepUHsdNVlr

    • Gently pull the front cover off of the camera.

  4. ALMjUAxjANTbI1jg
    ALMjUAxjANTbI1jg
    FWuBaHQNt3MATpk3
    AZFYGOaOC1g5fvEK

    • Open the "A/V Out Digital" cover. Remove the screw inside.

    • Gently pull off the back casing.

    • Remove the black "L" shaped piece of metal.

  5. KQdmlLTuDOvpTbKG

    • Remove the three screws that are holding the screen in place. Free the screen from the underlying components.

    • Be careful with the ribbon wire that is still attached on the left side of the screen.

  6. i3qUdJKijgBM5ih1
    i3qUdJKijgBM5ih1
    guwAvHChptGWrOYM

    • With the spudger, gently lift the black flap that is holding the wide ribbon cable wire in place.

    • Unplug the wide ribbon cable.

    • Unplug the narrow ribbon cable to free the LCD screen from the camera body.

    The author failed to mention a couple things. First, the screen is in a holder which you remove, then after pulling off some electrical tape, you have to yank the actual screen out. Second, I only had two screws to pull the screen holder out, not three. Third, the thing that you have to pull to get the screen ribbon cable out is actually a tiny black hinge, so don't worry if it suddenly snaps back. Finally, to put the thing back together, it really helps if you have a tweezers to get the ribbon cables back into place.

    and fyi replacement screens available from canon parts department for about 50 bucks.

    steven -

  7. LJkT3YVtwjRMcdCC

    • Remove the L-shaped corner trim containing the picture button.

    • Carefully unplug the connection cable that is attached.

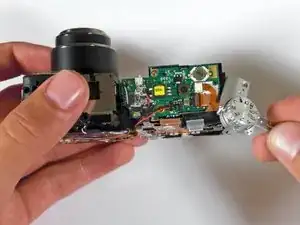

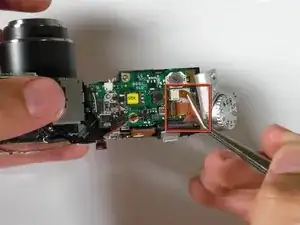

  8. WSPeq2PSLQSZMYbm
    WSPeq2PSLQSZMYbm
    CEtbmEQgacX1mOLl

    • Pull the selector wheel from the top corner of the camera.

    • Carefully remove the ribbon cable connection with a set of tweezers.

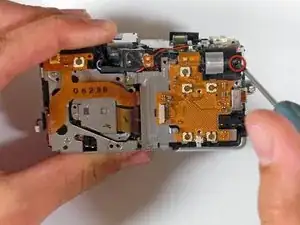

  9. 3i2NaEtK6tW1uEmC

    • With a Phillips #00 Screwdriver, unscrew the zoom toggle switch and remove it from the camera.

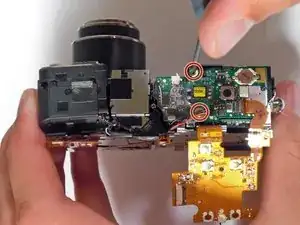

  10. f4SaBhAoL3xlgDq5

    • With a Phillips #00 Screwdriver, unscrew the flash board.

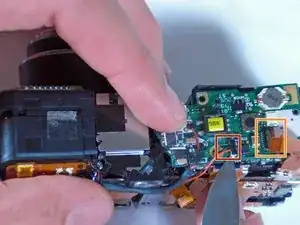

  11. SbLVCSpLZSoughMR

    • Remove the cable connection. With a metal spudger, gently pry up.

    • Remove the ribon cable. With a metal spudger, gently lift up the black tab.

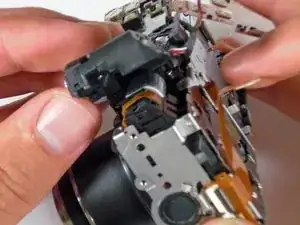

  12. rg2cwMk4UBGfhaLD

    • Lift the flash bulb unit upwards from the camera.

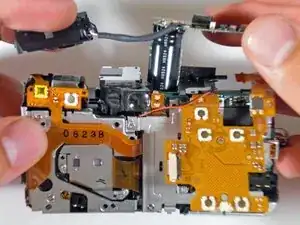

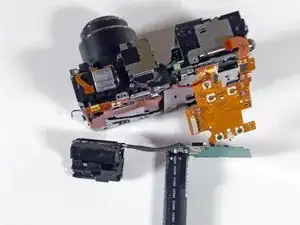

  13. GyQVlrvgkMEDVLJg
    GyQVlrvgkMEDVLJg
    WPKVRxak6F6ZGDVd

    • Lift the entire three-part flash assembly from the camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
